Descriere

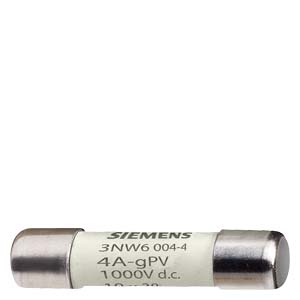

SENTRON, cylindrical fuse link, 10 x 38 mm, 4 A, gPV, Un DC: 1000 V Cylindrical fuse link SENTRON 3NW6 for stringent requirements in photovoltaic applications. Photovoltaic fuses are especially designed for protecting PV modules and ensure a high level of plant availability over the entire life of the PV system. The fuses have a high DC rated voltage and withstand the greatest temperature fluctuations without damage. They ensure safe tripping in case of residual currents and therefore reduction of the risk of fire due to DC electric arcs. They have a long service life despite frequent and very variable load currents. SENTRON circuit protection devices - A safe choice.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Breaking capacity | 30 |
| Power loss at rated current | - |
| Voltage type | DC |
| Release characteristic | Other |
| Rated voltage | - |
| Rated current | 4 |
| Measurements | |
| Size | 10x38 mm |
| Model/type | |
| Model | Other |
| Type of fuse status indicator | - |
| Other | |
| Utilization category according to IEC 60269 | gPV |
| Rated operating frequency | 45 |
| Package 1 | |
| weight | 0,008 |
| length | 0,075 |
| width | 0,034 |
| qmax | 20 |
| qmin | 20 |
| um | PA |
| gtin | 4001869415895 |
| Dimensions of product | |
| Weight | 0,008 |
