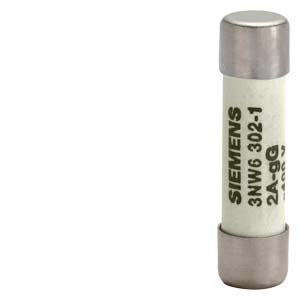

CYLINDRICAL FUSE LINK, 8X32 MM, 2 A, GG, UN AC: 400V

Cod produs: 3NW6302-1

▶

Autentificati-va pentru a vedea pretul.

Producator: Siemens

Set: 1 bucati

4001869061863

Alte coduri: upc: 754554903989

Descriere

SENTRON, cylindrical fuse link, 8x32 mm, 2 A, gG, Un AC: 400 V Cylindrical fuse link 3NW6 for the SENTRON cylindrical fuse system for selective system protection. The 3NW cylindrical fuse inserts and holders are designed to protect semiconductor components. They meet international standards such as IEC 60269, which makes them usable worldwide. They are tested and approved in Europe as fused disconnectors, but are not intended for switching under load. SENTRON circuit protection devices - A safe choice.

Documente

Fisa tehnica

Certificat

Link to Certificates

Altele

Link to Sales brochure

Declaratie de conformitate

Alte surse

Specificatii

Electrical
Breaking capacity	20
Power loss at rated current	2
Voltage type	AC
Release characteristic	Other
Rated voltage	400
Rated current	2
Measurements

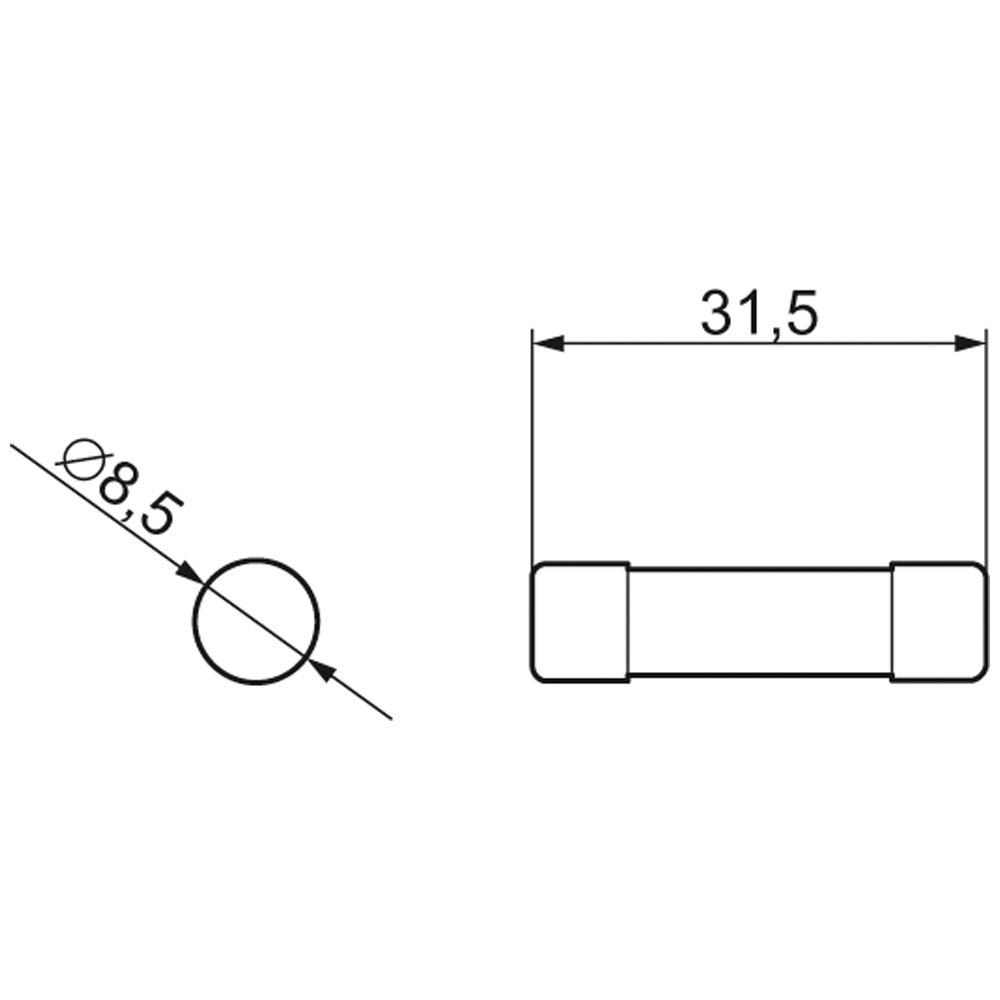

Size	8x32 mm
Model/type
Model	Other
Type of fuse status indicator	-
Other
Utilization category according to IEC 60269	gG
Rated operating frequency	45
Package 1
weight	0,004
length	0,066
width	0,045
qmax	10
qmin	10
um	PA
gtin	4001869061863
Dimensions of product
Weight	0,004

Afiseaza mai multe specificatii
