Descriere

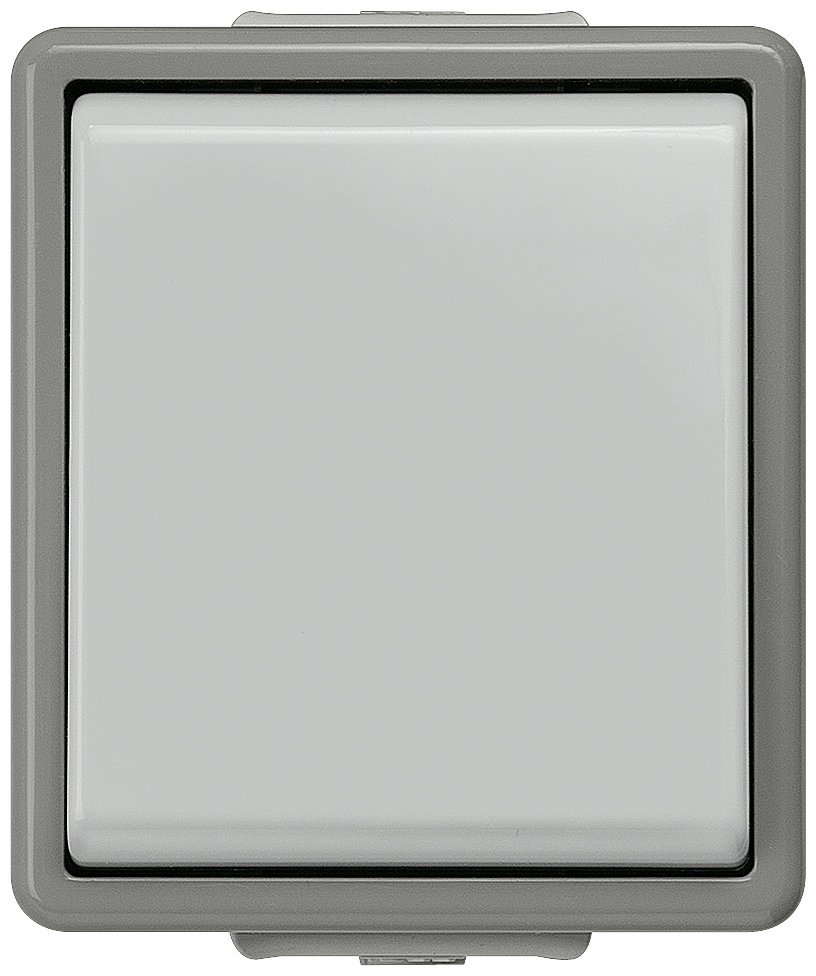

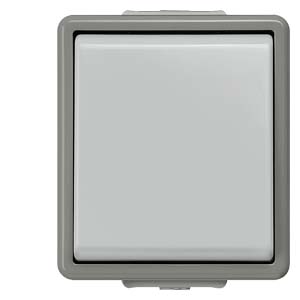

Delta Fläche IP44
The DELTA IP44 surface-mounting range provides an attractive design with increased safety and easy operation.
Technical details:
- Type: Universal switch switchover/OFF
- Current: 10A
- Voltage: 250V
- Dimensions: 66x 75 mm
- Enclosure material: Breakage and impact-resistant thermoplastic
- Terminal type: Screwless terminals for wiring
Customer benefits:
- Attractive design
- Increased safety
- Easy operation
- Touch safety with insulated release levers for conductor detachment
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| Assembly arrangement | Basic element with complete housing |
| Number of rockers | 1 |
| Heating switch | No |
| Type of lighting | - |
| Washing machine switch | No |
| Lighting | - |
| Number of modules (module system) | - |
| Label space/information surface | - |
| Measurements | |
| Device height | 82 |
| Device width | 66 |
| Min. depth of built-in installation box | - |
| Device depth | 47 |
| Built-in depth | 32 |
| Material | |
| Halogen free | Yes |
| Surface protection | Other |
| Material | Plastic |
| Material quality | Other |
| Surface finishing | Glossy |
| Mounting/installation | |
| Mounting method | Surface mounted |
| With mounting plate | No |
| Type of fastening | Screw mounting |
| Connection | |
| Connection type | Push-in clamp |
| Electrical | |
| Nominal voltage | 250 |
| Switching current for fluorescent lamps | - |
| Rated current | 10 |
| Communication | |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Monitoring contact | No |
| Other | |
| Function lighting | - |
| Impact strength | - |
| Wiring system | Two-way switch |
| Colour | |
| Colour of switch operator | - |
| RAL-number (similar) | - |
| Colour | Grey |
| Protection | |
| Suitable for degree of protection (IP) | IP44 |
| Approval/certification | |
| Compliant with UK Building Regulations Part M | - |
| Options | |
| Anti-bacterial treatment | No |
| Push button switch | No |
| IFTTT support available | No |
| Setting/control | |
| Method of operation | Rocker/button |
| Package 1 | |
| weight | 0,106 |
| length | 0,065 |
| width | 0,082 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869002460 |
| Dimensions of product | |
| Weight | 0,106 |
