Descriere

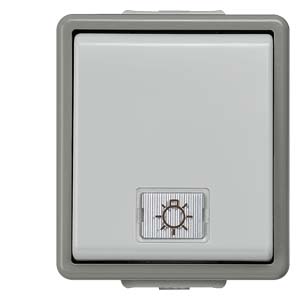

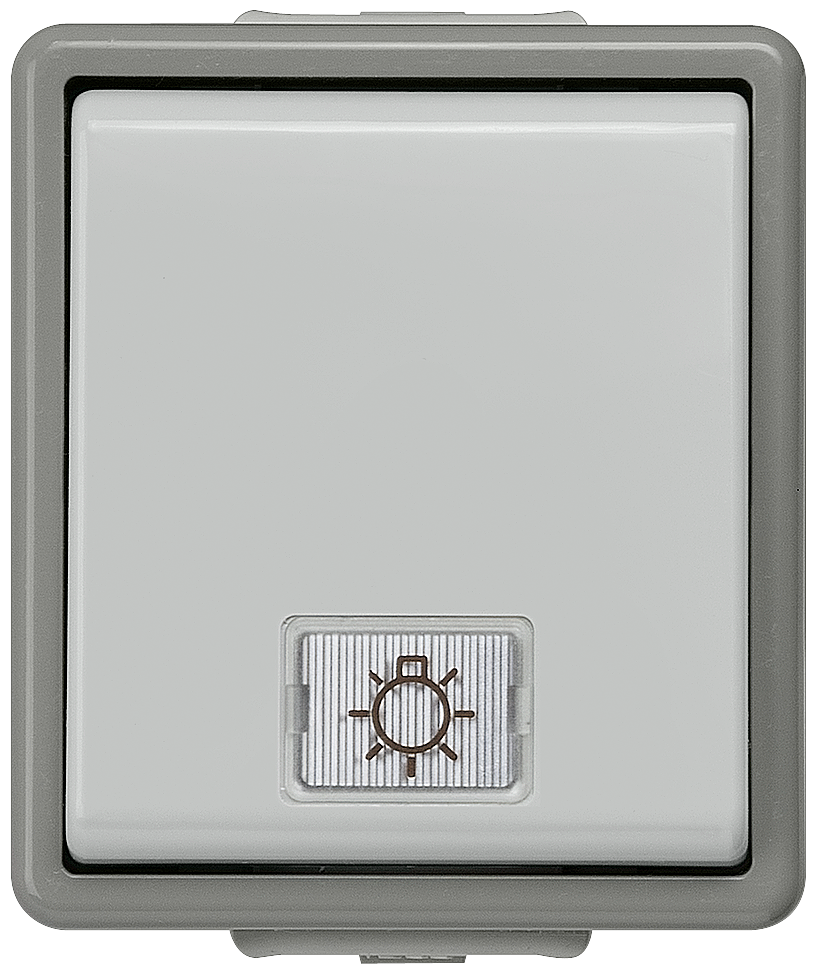

DELTA fläche IP44, AP Dark gray/light gray Two-way switch, 10A 250V 66x 75 mm, with lamp +2 windows (neutral, light) Our DELTA IP44 surface-mounting range provides you with an attractive design, increased safety and easy operation. The DELTA IP44 surface-mounted range impresses with its breakage and impact-resistant thermoplastic enclosure. All switch and socket outlet inserts have screwless terminals for wiring. Using the insulated release levers, you can detach the conductors without tools and with touch safety. DELTA switch and socket outlets - design and quality to perfection from Siemens.
Documente
Specificatii
| Model/type | |
| Assembly arrangement | Basic element with complete housing |
| Number of rockers | 1 |
| Heating switch | No |
| Type of lighting | LED exchangeable |
| Washing machine switch | No |
| Lighting | - |
| Number of modules (module system) | - |
| Label space/information surface | - |
| Measurements | |
| Device height | 82 |
| Device width | 66 |
| Min. depth of built-in installation box | - |
| Device depth | 47 |
| Built-in depth | 32 |
| Material | |
| Halogen free | Yes |
| Surface protection | Other |
| Material | Plastic |
| Material quality | Other |
| Surface finishing | Glossy |
| Mounting/installation | |
| Mounting method | Surface mounted |
| With mounting plate | No |
| Type of fastening | - |
| Connection | |
| Connection type | Push-in clamp |
| Electrical | |
| Nominal voltage | 250 |
| Switching current for fluorescent lamps | - |
| Rated current | 10 |
| Communication | |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Monitoring contact | No |
| Other | |
| Function lighting | Illuminated (on) |
| Impact strength | - |
| Wiring system | Two-way switch |
| Colour | |
| Colour of switch operator | - |
| RAL-number (similar) | - |
| Colour | Grey |
| Protection | |
| Suitable for degree of protection (IP) | IP44 |
| Approval/certification | |
| Compliant with UK Building Regulations Part M | - |
| Options | |
| Anti-bacterial treatment | No |
| Push button switch | No |
| IFTTT support available | No |
| Setting/control | |
| Method of operation | Rocker/button |
| Package 1 | |
| weight | 0,11 |
| length | 0,065 |
| width | 0,082 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869038230 |
