Descriere

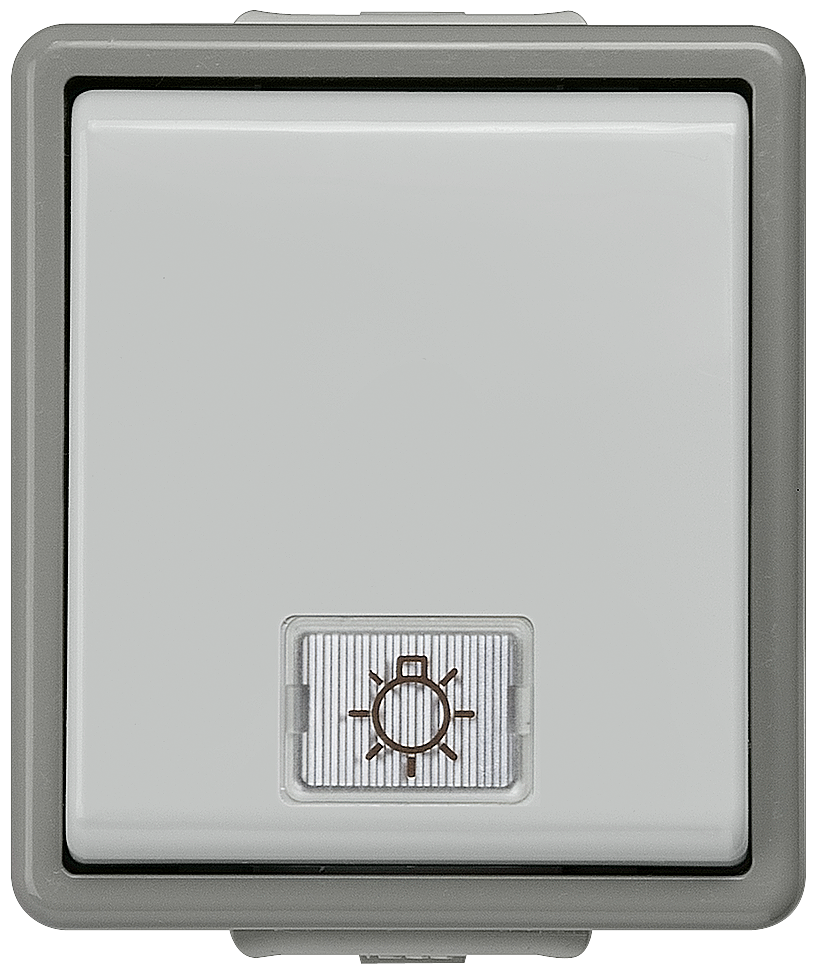

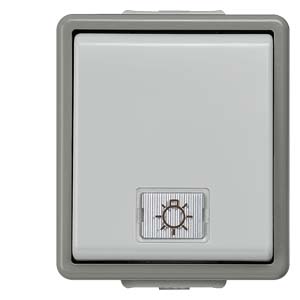

DELTA flaeche IP44, AP Dark gray/light gray button, 10A 250V, 66x 75 mm w. transparent window (neutral/ light), with lamp 5TG7332 Our DELTA IP44 surface-mounting range provides you with an attractive design, increased safety and easy operation. The DELTA IP44 surface-mounted range impresses with its breakage and impact-resistant thermoplastic enclosure. All switch and socket outlet inserts have screwless terminals for wiring. Using the insulated release levers, you can detach the conductors without tools and with touch safety. DELTA switch and socket outlets - design and quality to perfection from Siemens.
Documente
Specificatii
| Measurements | |
| Device height | 75 |
| Device width | 66 |
| Min. depth of built-in installation box | - |
| Device depth | 54 |
| Model/type | |
| Assembly arrangement | Basic element with complete housing |
| Number of rockers | 1 |
| With light source | - |
| With signal lamp | No |
| Imprint | - |
| Model | Single push button |
| With lighting | Yes |
| Contactless type | No |
| Number of modules (module system) | - |
| Connection | |
| Connection type | Push-in clamp |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Number of revolving contacts | 0 |
| Material | |
| Halogen free | Yes |
| Surface protection | Other |
| Material | Plastic |
| Material quality | Other |
| Surface finishing | Glossy |
| Mounting/installation | |
| Mounting method | Surface mounted |
| Type of fastening | Screw mounting |
| Electrical | |
| Nominal voltage | 230 |
| Number of poles | - |
| Rated current | 10 |
| Communication | |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Monitoring contact | No |
| Other | |
| Impact strength | - |
| Operating principle | - |
| Colour | |
| RAL-number (similar) | - |
| Transparent | No |
| Colour | Grey |
| Protection | |
| Suitable for degree of protection (IP) | IP44 |
| Options | |
| Anti-bacterial treatment | No |
| Label space/information surface | No |
| IFTTT support available | No |
| Setting/control | |
| Method of operation | Push button/touch control button |
| Package 1 | |
| weight | 0,106 |
| length | 0,065 |
| width | 0,082 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869040578 |
