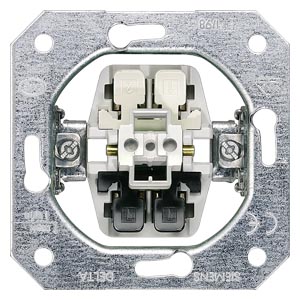

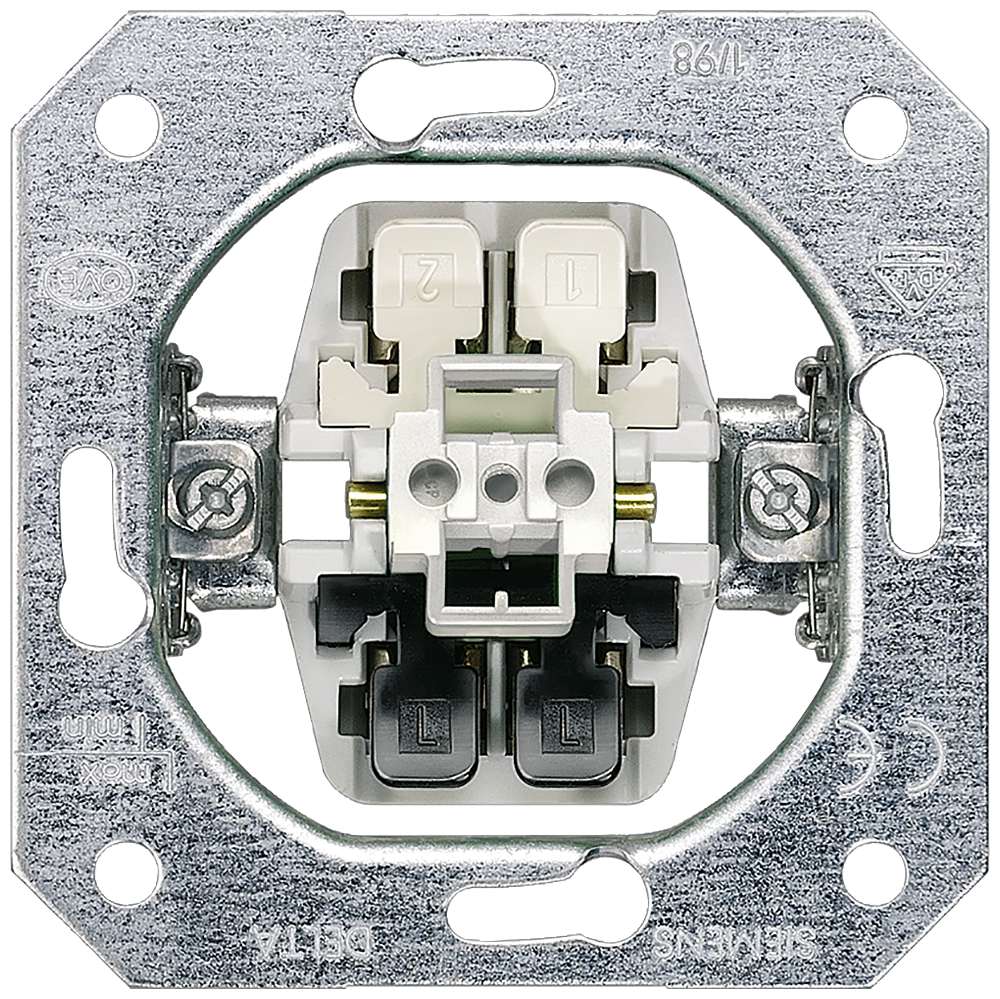

DELTA switch device insert FM, intermediate switch can be screwed, 10A 250V Due to its eternally stylish shapes and a multitude of colors, our comprehensive range of DELTA products provides you with a plethora of individual design options, which consummately accentuate the aesthetics of any room. The DELTA switch inserts are fitted with a combination screw for Torx T10 and slotted screwdrivers. The 3 mm plaster compensation ensures reliable function even where wall conditions are extreme. The switches are available as ON/OFF, two-way, and intermediate switches as well as in various pushbutton variants. There are also versions for shutter/blind controls, motion detectors, timers, or room temperature controls. DELTA switch and socket outlets - design and quality to perfection from Siemens.
Documente
Specificatii
| Model/type | |
| Assembly arrangement | Basic element |
| Number of rockers | 1 |
| Heating switch | No |
| Type of lighting | LED exchangeable |
| Washing machine switch | No |
| Lighting | - |
| Number of modules (module system) | - |
| Label space/information surface | - |
| Measurements | |
| Device height | 70 |
| Device width | 70 |
| Min. depth of built-in installation box | - |
| Device depth | - |
| Built-in depth | 32 |
| Material | |
| Halogen free | Yes |
| Surface protection | Other |
| Material | Metal |
| Material quality | Other |
| Surface finishing | - |
| Mounting/installation | |
| Mounting method | Flush-mounted |
| With mounting plate | No |
| Type of fastening | - |
| Connection | |
| Connection type | Push-in clamp |
| Electrical | |
| Nominal voltage | 250 |
| Switching current for fluorescent lamps | - |
| Rated current | 10 |
| Communication | |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Monitoring contact | No |
| Other | |
| Function lighting | Illuminated (on) |
| Impact strength | - |
| Wiring system | Intermediate switch |
| Colour | |
| Colour of switch operator | - |
| RAL-number (similar) | - |
| Colour | Other |
| Protection | |
| Suitable for degree of protection (IP) | IP20 |
| Approval/certification | |
| Compliant with UK Building Regulations Part M | - |
| Options | |
| Anti-bacterial treatment | No |
| Push button switch | No |
| IFTTT support available | No |
| Setting/control | |
| Method of operation | Rocker/button |
| Package 1 | |
| weight | 0,077 |
| length | 0,085 |
| width | 0,05 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869038124 |

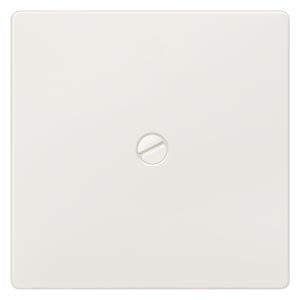

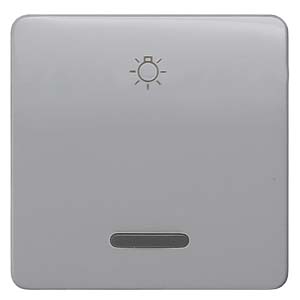

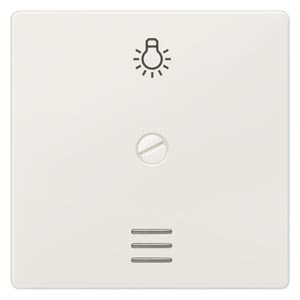

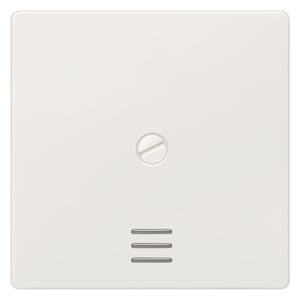

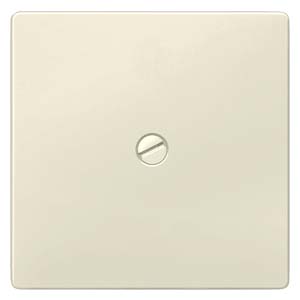

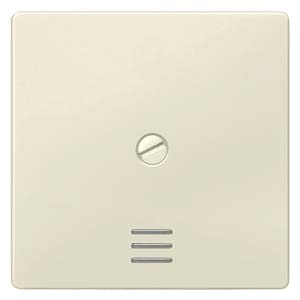

Accesorii
