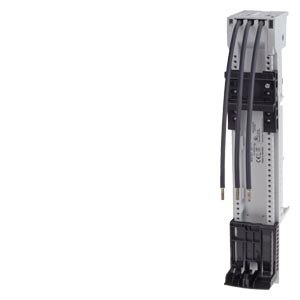

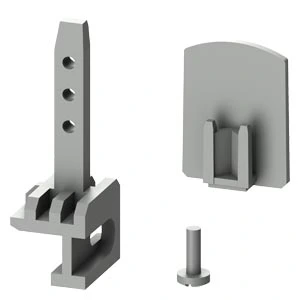

Device adapter S00
The device adapter S00 is designed for the mounting of protective devices within Siemens busbar systems.
Technical details:
- Current rating: 25 A
- For 60 mm busbar system
- Dimensions: 45x 260 mm long
- Special lines welded-on
- AWG: 12
- 167 mm long spacer enclosed with product mounting rail screwed on
- Model: SENTRON 8US1
Customer benefits:
- Wide range of options for installation of rail-adaptable connection, switching, and installation devices
- Space-saving modular design
- Mechanical fixing and electrical contacting in a single operation
- Finger-safe cover of the adapters and device holders for high level of operational reliability
- Worldwide approval and application possibilities in mechanical and plant engineering
- Available with different busbar center spacing
Disclaimer: Generated by AI.
Documente
Specificatii
| Measurements | |
| Width of the adaptor | 45 |
| Max. busbar thickness | 10 |
| Rail width | - |
| Busbar distance | 60 |
| Min. busbar thickness | 5 |
| Connection | |
| Type of electric connection | 3 conductors AWG 12 |
| Electrical | |
| Rated current In | 25 |
| Model/type | |
| Mounting rail armament | - |
| Package 1 | |
| weight | 0,34 |
| length | 0,293 |
| width | 0,109 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209855694 |
| Dimensions of product | |
| Weight | 0,34 |
