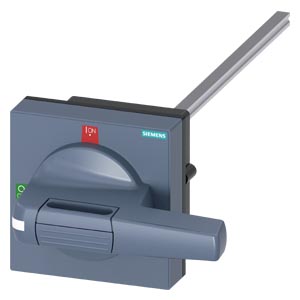

Door-coupling rotary operating mechanism standard
This product is designed for the manual operation of the 3VA molded case circuit breaker, offering convenient control options.
Technical details:

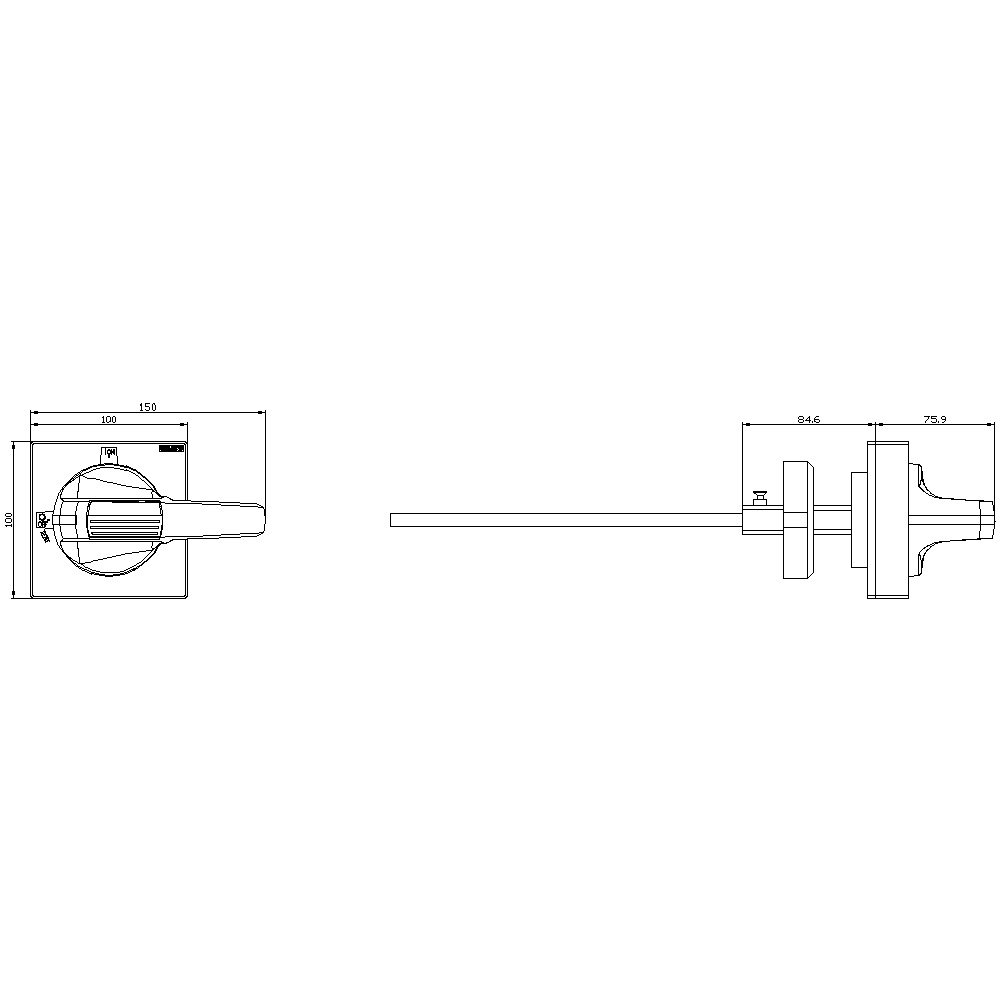

- Size: 100 x 100mm
- Shaft: 8 x 8, 300mm
- Test: 0-I
- Complete unit
- Handle size: 100 mm
- Accessory for 3KD size 3, 3KF size 2
- Available as a front, door, and side panel rotary actuator
- Various locking and interlocking options
- Handles available in standard and EMERGENCY-STOP variants
- Illumination kit options
Customer benefits:
- Manual operators for all-round convenient operation of the 3VA molded case circuit breaker
- One system for all applications
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Options | |
| Lockable | - |
| Model/type | |
| With axis extension | - |
| With door interlock | - |
| With handle red/yellow | - |
| Protection | |
| Degree of protection (NEMA) | - |
| Package 1 | |
| weight | 1,092 |
| length | 0,144 |
| width | 0,098 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869525181 |
| Dimensions of product | |
| Weight | 1,092 |
