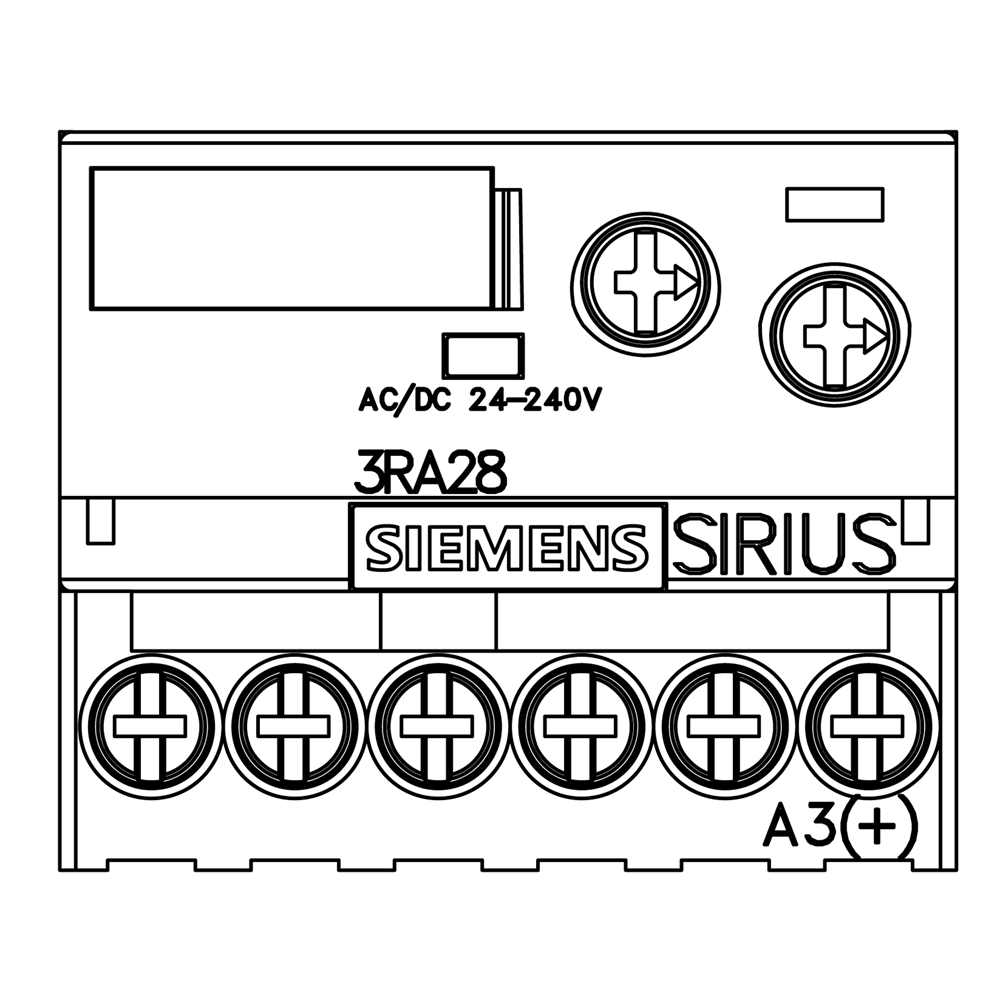

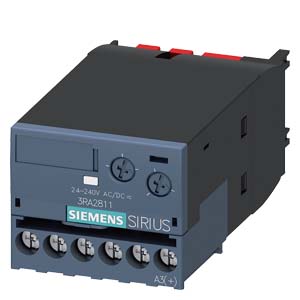

ELECTRONIC TIMING RELAY ON DELAY WITH SEMICONDUCTOR OUTPUT 24-240 V AC/DC TIME RANGE 0.05...100 S CA

Electronic timing relay

This ON-delay electronic timing relay is designed for switching operations involving time delays in control, starting, protection, and regulation circuits.

Technical details:

• Type: ON-delay
• Output: Semiconductor
• Time range: 0.05-100 s
• Voltage: 24-240 V AC/DC
• Frequency: 50/60 Hz
• Integrated varistor for attenuation of the contactor coils
• Terminal type: Screw terminal
• Compatibility: Can be snapped onto the front on contactors 3RT201 / 3RT202 and auxiliary contactors 3RH2
• Function module: SIRIUS 3RA28 for direct-on-line starting
• Wiring: No additional wiring required
• International approvals: IEC, CCC, UL/CSA
• Available sizes: 3RT2 contactors and 3RH2 auxiliary switches in sizes S00 to S3
• Selectable outputs: 1 NO + 1 NC or 1 C
• Available with screw or spring-loaded terminals

Customer benefits:

• Simple plug-in facility requires no tools and permits the implementation of controller-independent time functions.
• Avoids wiring errors and reduces testing costs.
• Front mounting saves space on the DIN rail.
• No additional protective circuit is necessary.
• Can be used worldwide due to international approvals.
• Wiring kits and a sealable cover are available.
