EMERGENCY STOP MUSHROOM PUSHBUTTON, 22 MM, ROUND, PLASTIC, RED, 40 MM, POSITIVE LATCHING, ACC. TO EN

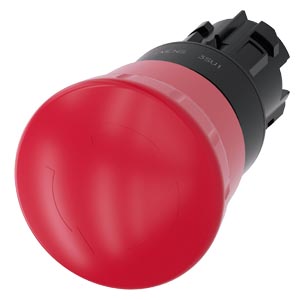

Emergency stop mushroom pushbutton

The EMERGENCY STOP mushroom pushbutton is designed for controlling safety-related applications with a robust and user-friendly interface.

Technical details:

• Diameter: 22 mm
• Shape: round
• Material: plastic
• Color: red
• Height: 40 mm
• Feature: positive latching
• Compliance: acc. to EN ISO 13850
• Operation: rotate-to-unlatch
• Portfolio: SIRIUS ACT
• Installation: snap-on concept
• Mounting: groove-free holes
• Protection: high degree of protection, suitable for industry and outdoors
• Cleaning: suitable for high-pressure jet cleaning
• Wiring: standard wiring, PROFINET, AS-Interface, IO-Link

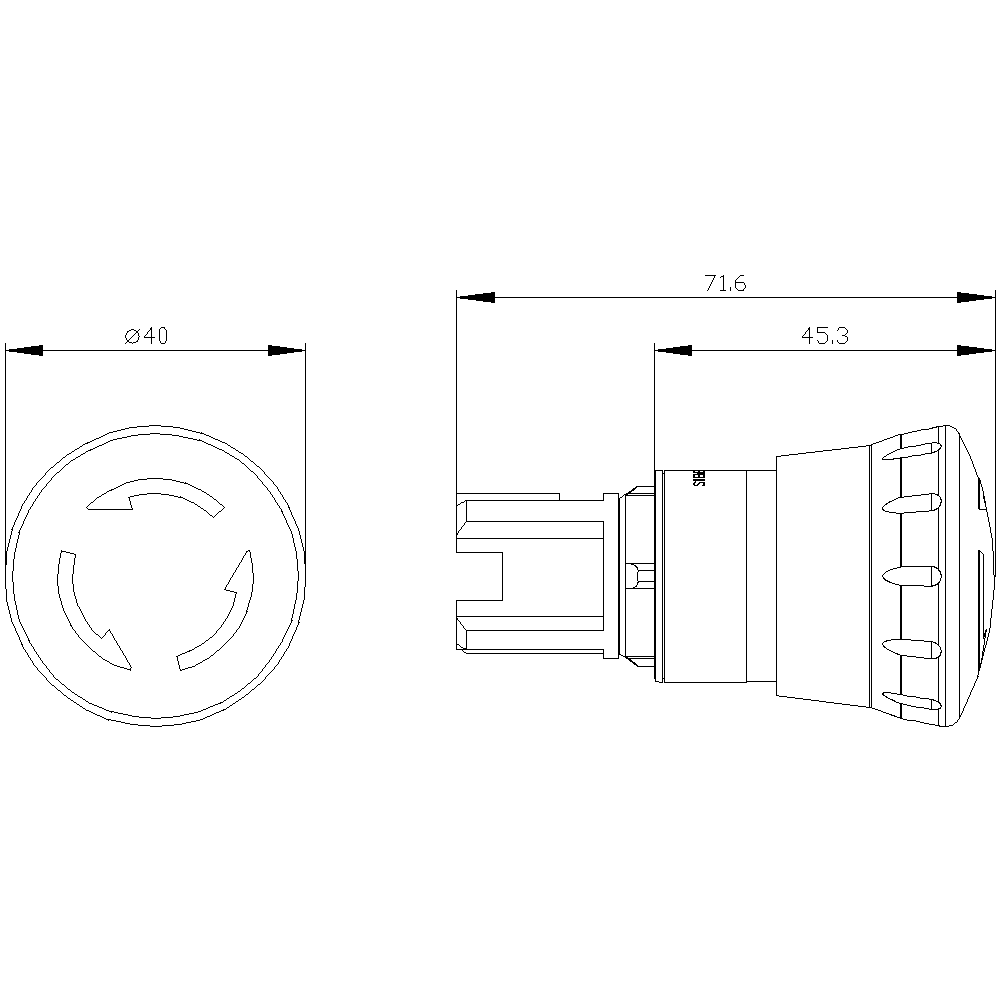

• Documentations available: manual, 3D data, terminal diagram
• Versions available: 30/40/60 mm mushroom diameter, illuminated/non illuminated, pull-to-unlatch/rotate-to-unlatch/key-operated release

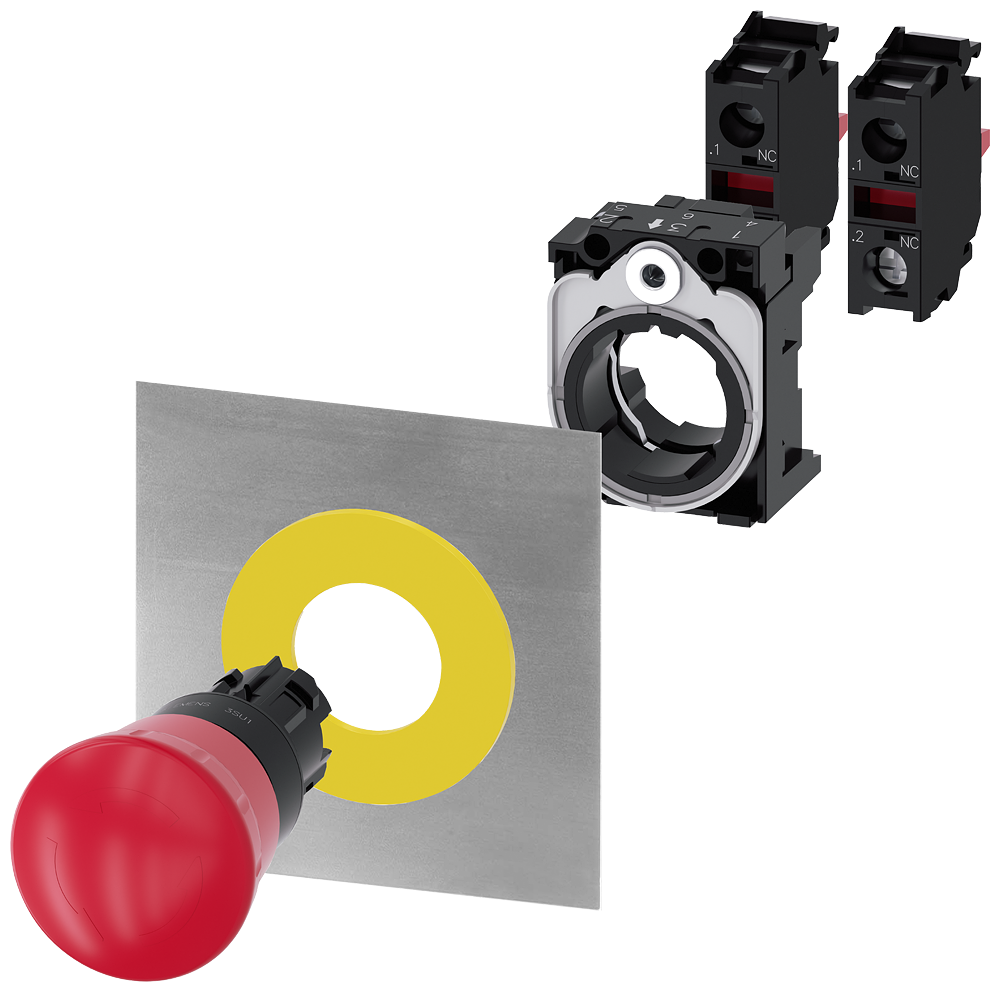

• Single device: holders and modules ordered separately

Customer benefits:

• Easy installation with one hand and no special tools.
• Integrated full twist prevention for secure mounting.
• Reliable operation unaffected by dust, oils, or caustic solutions.
• Reduced wiring time and effort, minimizing error sources.
• Graphical Online Configurator for convenient selection and ordering.
• Extensive support and documentation available.
