EMERGENCY STOP MUSHROOM PUSHBUTTON, ILLUMINABLE, 22 MM, ROUND, METAL, SHINY, RED, 40 MM, POSITIVE LA

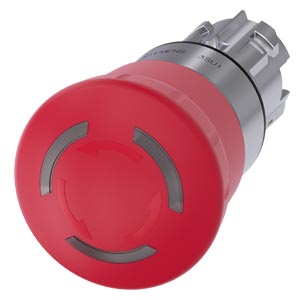

Emergency stop mushroom pushbutton

The EMERGENCY STOP mushroom pushbutton is designed for controlling safety-related applications with ease and reliability.

Technical details:

• Illuminable
• 22 mm, round, metal, shiny, red
• 40 mm, positive latching
• Acc. to EN ISO 13850
• Rotate-to-unlatch
• Versions available: 30/40/60 mm mushroom diameter, illuminated/non-illuminated, pull-to-unlatch/rotate-to-unlatch/key-operated release

Customer benefits:

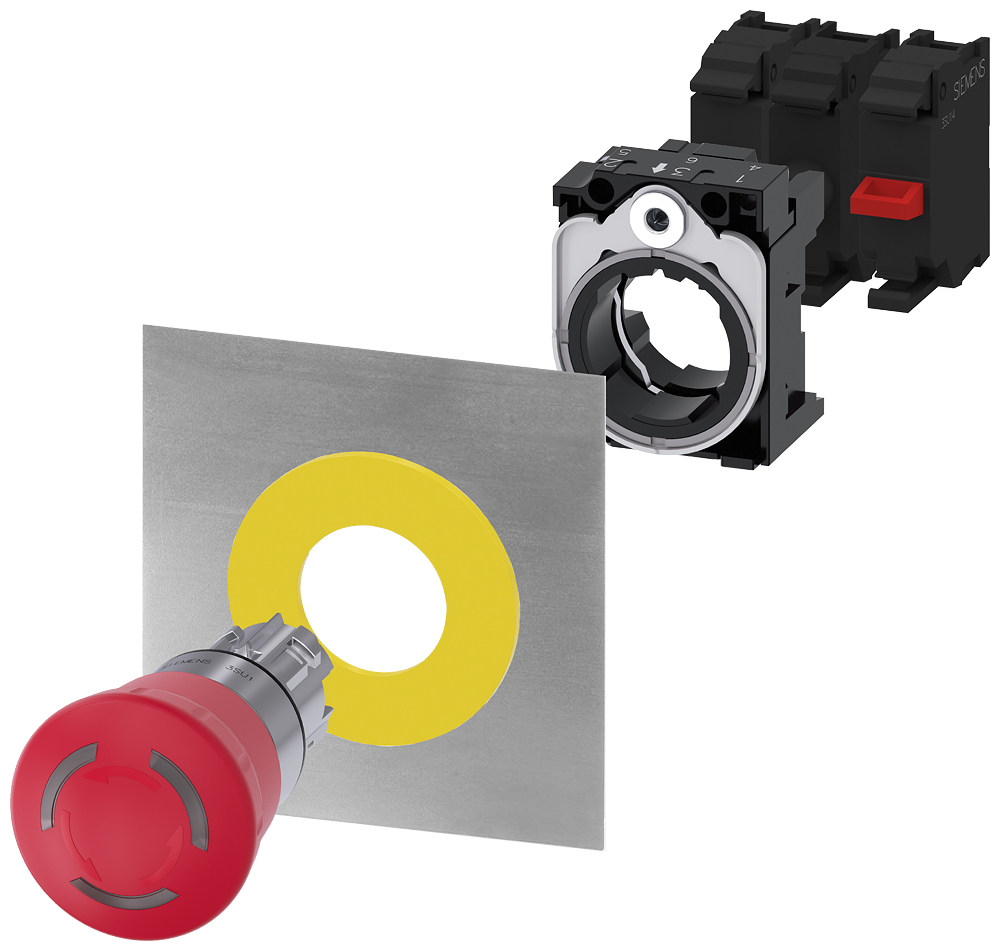

• Innovative snap-on concept allows for easy one-handed installation without special tools
• Groove-free holes serve as adequate mounting holes with integrated full twist prevention
• High degree of protection makes devices suitable for industry and outdoor use
• Cleaning with a high-pressure jet is possible
• Resistant to dust, oils, and caustic solutions for reliable operation
• Flexibility with standard wiring and connections via PROFINET, AS-Interface or IO-Link
• Graphical Online Configurator provides convenient support for selecting and ordering
• Extensive documentation available (e.g. manual, 3D data, terminal diagram)
