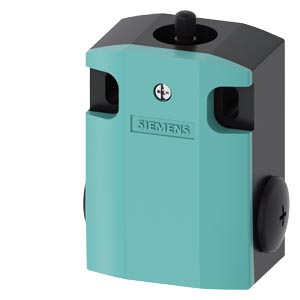

ENCLOSURE WITH INCREASED CORROSION PROTECTION FOR POSITION SWITCH 3SE51 56 MM WIDE, METAL WITH COVER
Cod produs: 3SE5122-0AA00-1CA0
Alte coduri:
upc: 662643931235
Descriere
enclosure with increased corrosion protection for position switch 3SE51 56 mm wide, Metal with cover, turquoise Device connection 3 x (M20 x 1.5) Safety is a SIRIUS business.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Communication | |
| Type of interface for safety communication | None |
| Type of interface | None |
| Model/type | |
| Switching function | - |
| Type of control element | Other |
| With status indication | No |
| Construction type housing | Cuboid |
| Protection | |
| Degree of protection (NEMA) | 12 |
| Degree of protection (IP) | IP66/IP67 |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Electrical | |
| Rated operation current Ie at AC-15, 24 V | - |
| Rated operation current Ie at AC-15, 125 V | - |
| Rated operation current Ie at DC-13, 24 V | - |
| Rated operation current Ie at DC-13, 125 V | - |
| Rated operation current Ie at AC-15, 230 V | - |
| Rated operation current Ie at DC-13, 230 V | - |
| Setting/control | |
| Alignment of the control element | Roller cam straight |

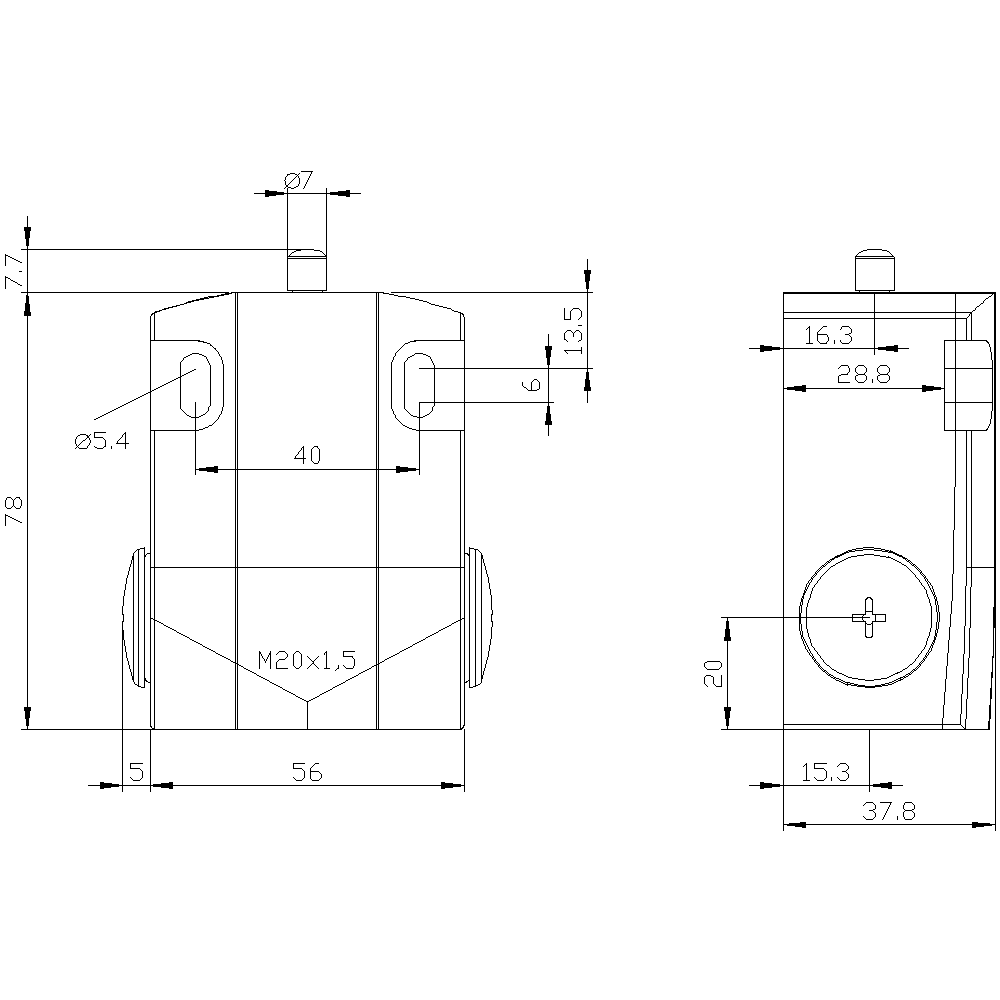

| Measurements | |
| Height of sensor | 37.8 |
| Width sensor | 56 |
| Length of sensor | 85.7 |
| Diameter sensor | - |
| Connection | |
| Number of contacts as change-over contact | - |
| Number of contacts as normally open contact | - |
| Number of contacts as normally closed contact | - |
| Type of electric connection | - |
| Number of safety auxiliary contacts | - |
| Output electronic | - |
| Options | |
| Forced opening | - |
| Switching function latching | No |
| Material | |
| Coating housing | Lacquered |
| Housing material | Metal |
| Application | |
| Suitable for safety functions | - |
| Operating conditions | |
| Ambient temperature during operating | -25 |
| Package 1 | |
| weight | 0,335 |
| length | 0,067 |
| width | 0,043 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209693012 |
| Dimensions of product | |
| Weight | 0,335 |
