Descriere

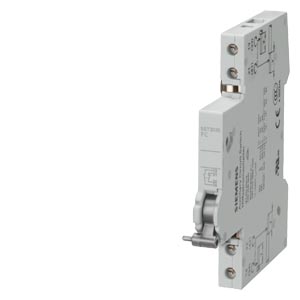

Fault signal contact
Fault signal contact for miniature circuit breakers and residual current devices, designed for easy installation and connection.
Technical details:
- 2 NC for miniature circuit breaker 5SL, 5SY, 5SP RCBO 5SU1, FI 5SV
- For 5SU1 handle coupler 5ST3805-1 is required
- Additional components for residual current devices and miniature circuit breakers
Customer benefits:
- Universally mountable components
- Easy and convenient to install and connect
- Standard touch protection ensures safety during installation
- Optimized technology for your safety - only from Siemens
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Suitable for max. number of poles main contact unit (total) | - |
| Rated switch current | - |
| Voltage type | - |
| Suitable for max. current main contact unit | - |
| Rated voltage | 400 |
| Model/type | |
| Function | - |
| Number of fault-signal switches | 1 |
| With auto test for earth leakage function | - |
| Connection | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 0 |

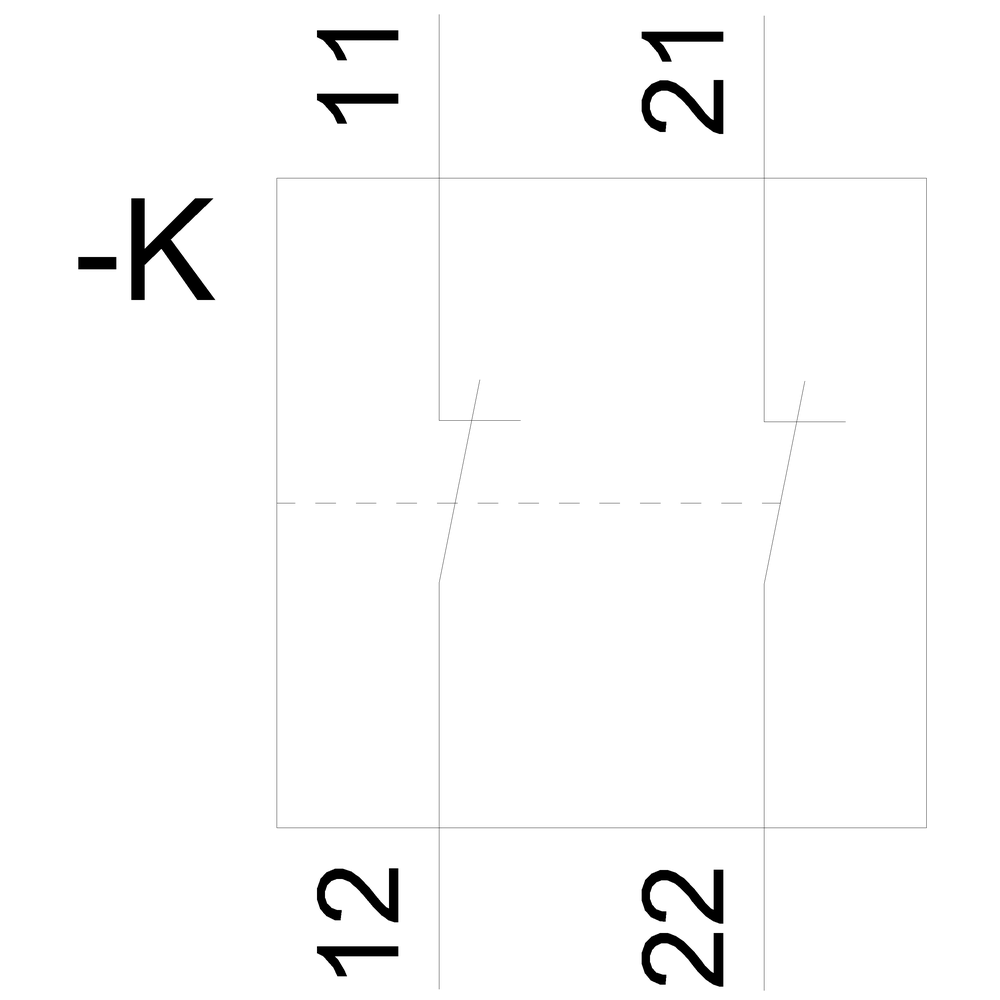

| Number of contacts as normally closed contact | 2 |
| Measurements | |
| Width in number of modular spacings | 1 |
| Other | |
| Device fitting | Universal |
| Package 1 | |
| weight | 0,063 |
| length | 0,092 |
| width | 0,082 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869187457 |
| Dimensions of product | |
| Weight | 0,063 |
