FIRST LATERAL AUXILIARY SWITCH 1 NO, 1 NC, SCREW TERMINAL, FOR CONTACTORS 3RT1

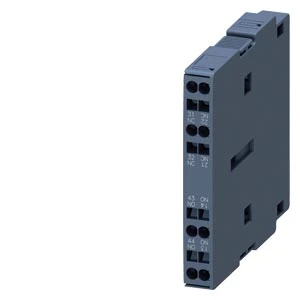

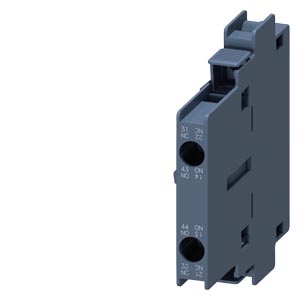

First lateral auxiliary switch

The first lateral auxiliary switch offers flexible expansion of auxiliary contacts in control circuits for SIRIUS contactors.

Technical details:

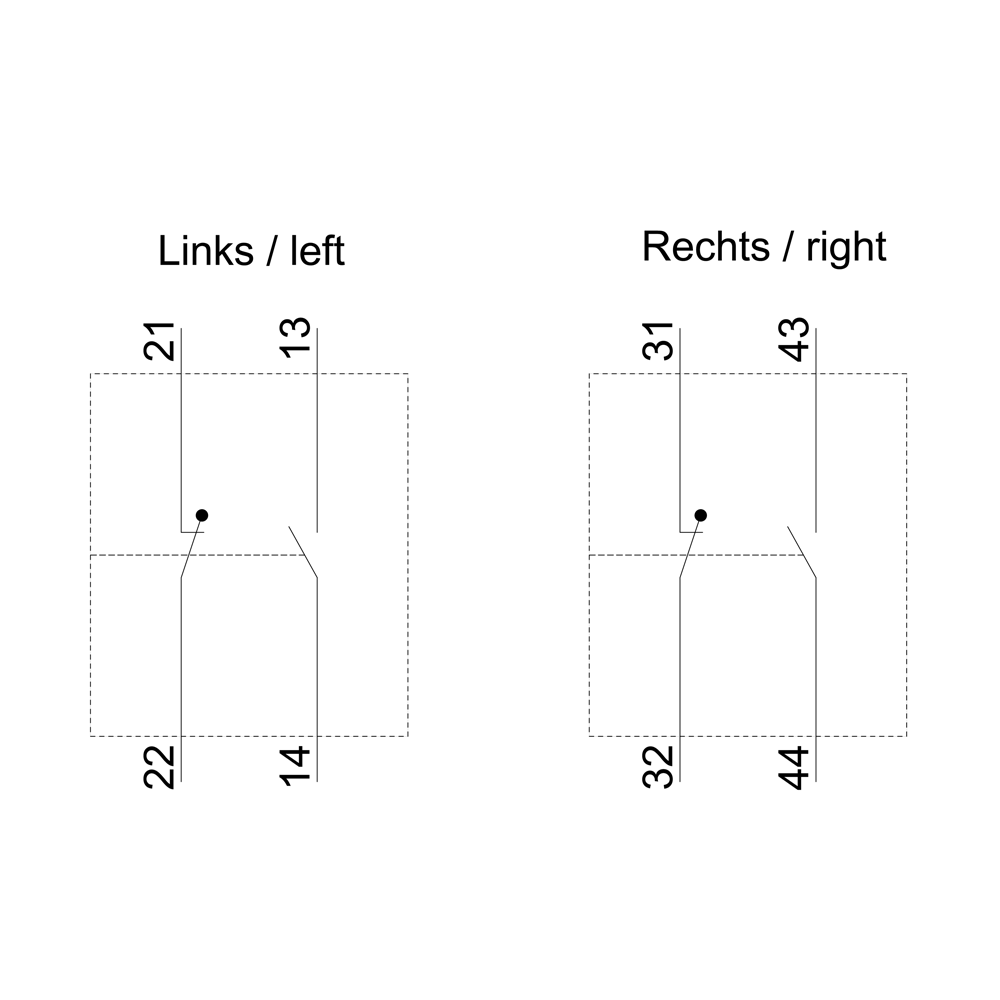

• 1 NO, 1 NC
• Screw terminal
• For contactors 3RT1
• Auxiliary switch SIRIUS 3RH19
• Can be fitted to 3RT1 contactors of sizes S0 - S12 without tools
• Versions for front or lateral mounting
• Up to four instantaneous contacts
• Up to two leading NO and NC contacts
• Designed as positively driven contacts in 3RH contactor relays
• Mirror contacts in the case of 3RT power contactors
• Available with screw terminal and spring-type terminal

Customer benefits:

• Simple, efficient and always up to date
• SIRIUS modular system
