FIRST LATERAL AUXILIARY SWITCH 2 NC CONTACTS, SCREW TERMINAL, FOR CONTACTORS 3RT1

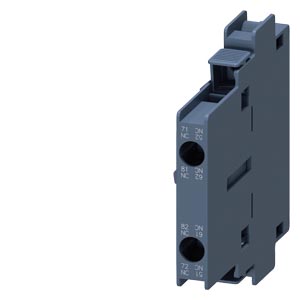

First lateral auxiliary switch

The first lateral auxiliary switch features 2 NC contacts and is designed for use with 3RT1 contactors in the SIRIUS modular system.

Technical details:

• 2 NC contacts
• Screw terminal
• Compatible with 3RT1 auxiliary switch SIRIUS 3RH19
• For expansion of auxiliary contacts in the control circuit
• Can be fitted to 3RT1 contactors of sizes S0 - S12 without tools
• Available for front or lateral mounting
• Up to four instantaneous contacts
• Up to two leading NO and NC contacts
• Designed as positively driven contacts in 3RH contactor relays
• Also available as mirror contacts in the case of 3RT power contactors
• Available with screw terminal and spring-type terminal

Customer benefits:

• Simple and efficient installation
• Part of the always up-to-date SIRIUS modular system
