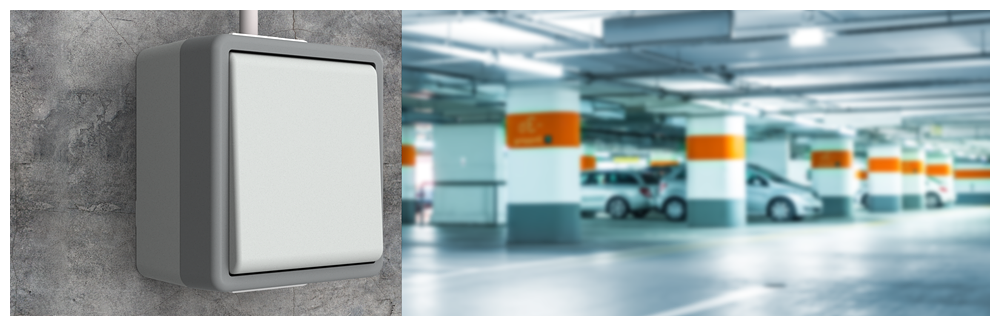

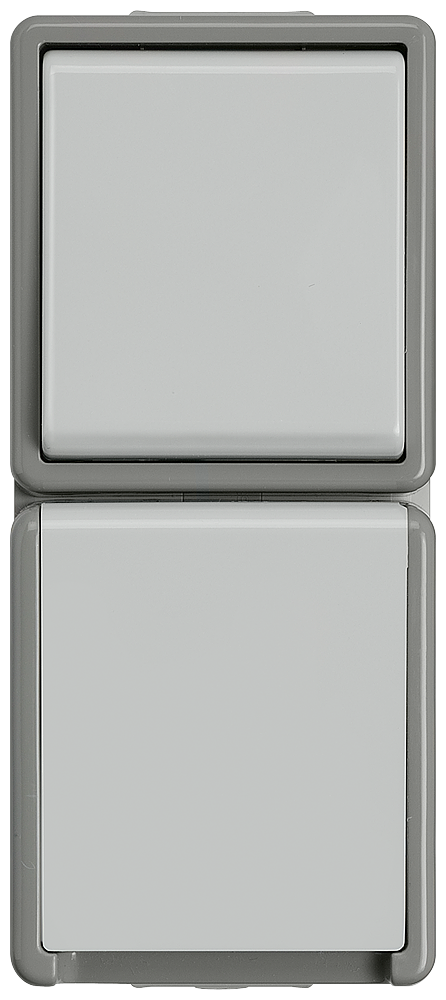

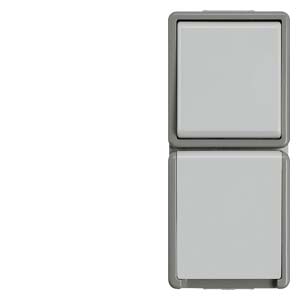

DELTA fläche IP44, AP Dark gray/light gray Two-way switch, 10A 250V SCHUKO socket outlet with spring flap 10/16 A 250 V, 66x 151 mm Our DELTA IP44 surface-mounting range provides you with an attractive design, increased safety and easy operation. The DELTA IP44 surface-mounted range impresses with its breakage and impact-resistant thermoplastic enclosure. All switch and socket outlet inserts have screwless terminals for wiring. Using the insulated release levers, you can detach the conductors without tools and with touch safety. DELTA switch and socket outlets - design and quality to perfection from Siemens.
Documente
Specificatii
| Measurements | |
| Device height | 151 |
| Device width | 66 |
| Min. depth of built-in installation box | - |
| Device depth | 54 |
| Material | |
| Halogen free | Yes |
| Surface protection | Other |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface finishing | Glossy |
| Mounting/installation | |
| Mounting method | Surface mounted |
| Mounting direction | Vertical |
| Type of fastening | Mounting with screw |
| Electrical | |
| Nominal voltage | 250 |
| Overvoltage protection | No |
| Nominal current socket outlet | 16 |
| Rated current | 10 |
| Communication | |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Connection | |
| Number of active contacts (round) | - |
| Number of active contacts (flat) | - |
| Model/type | |
| With miniature fuse | No |
| Number of socket outlets | 1 |
| With lighting | No |
| Type of socket outlet | - |
| Type of switch | Two-way switch |
| Colour | |
| RAL-number (similar) | 7035 |
| Transparent | No |
| Colour | Grey |
| Protection | |
| Suitable for degree of protection (IP) | IP44 |
| Fault current protection | No |
| Options | |
| IFTTT support available | No |
| Concurrently switching neutral conductor | - |
| Setting/control | |
| Method of operation | Rocker/button |
| Package 1 | |
| weight | 0,201 |
| length | 0,13 |
| width | 0,082 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869038278 |
