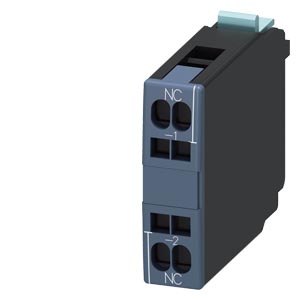

FRONT-SIDE AUXILIARY SWITCH, 1 NC CONTACT, SPRING-TYPE TERMINAL, FOR CONTACTORS 3RT1
Cod produs: 3RH1921-2CA01
Alte coduri:
upc: 754554417257
Descriere
Front-side auxiliary switch
The front-side auxiliary switch is designed for contactors 3RT1 and 3RH1 for the expansion of auxiliary contacts in control circuits.
Technical details:

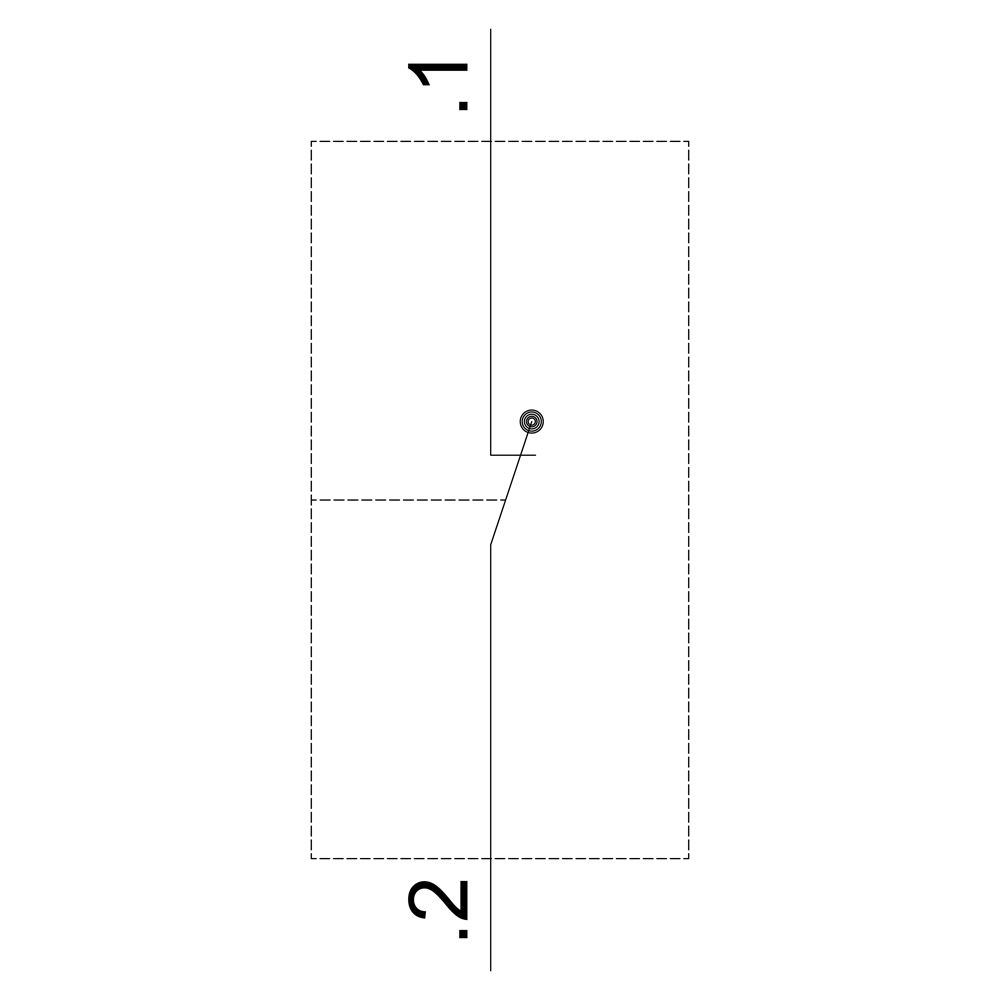

- 1 NC contact
- Spring-type terminal
- Compatible with 3RT1 auxiliary switch SIRIUS 3RH19
- Fitting: available for front or lateral mounting
- Can be fitted to 3RT1 contactors and 3RH1 contactor relays of sizes S0-S12 without the need for tools
- Versions with up to four instantaneous contacts or up to two leading NO and NC contacts
- Designed as positively driven contacts in 3RH contactor relays or as mirror contacts in 3RT power contactors
- Available with screw terminal and spring-type terminal
Customer benefits:
- Simple and efficient installation
- Part of the SIRIUS modular system, ensuring compatibility and modern solutions
- Always up to date with the latest standards
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| Lamp holder | None |
| Model | - |
| Number of fault-signal switches | 0 |
| Mounting/installation | |
| Mounting method | Other |
| Connection | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as normally closed contact | 1 |
| Type of electric connection | Spring clamp connection |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 6 |
| Package 1 | |
| weight | 0,017 |
| length | 0,114 |
| width | 0,047 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209281363 |
| Dimensions of product | |
| Weight | 0,017 |
