FRONT-SIDE AUXILIARY SWITCH, 2 NO CONTACTS, 2 NC CONTACTS, SCREW TERMINAL, FOR CONTACTORS 3RT1, SEQU

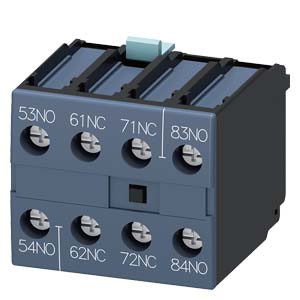

Front-side auxiliary switch

The front-side auxiliary switch expands auxiliary contacts in the control circuit for contactors.

Technical details:

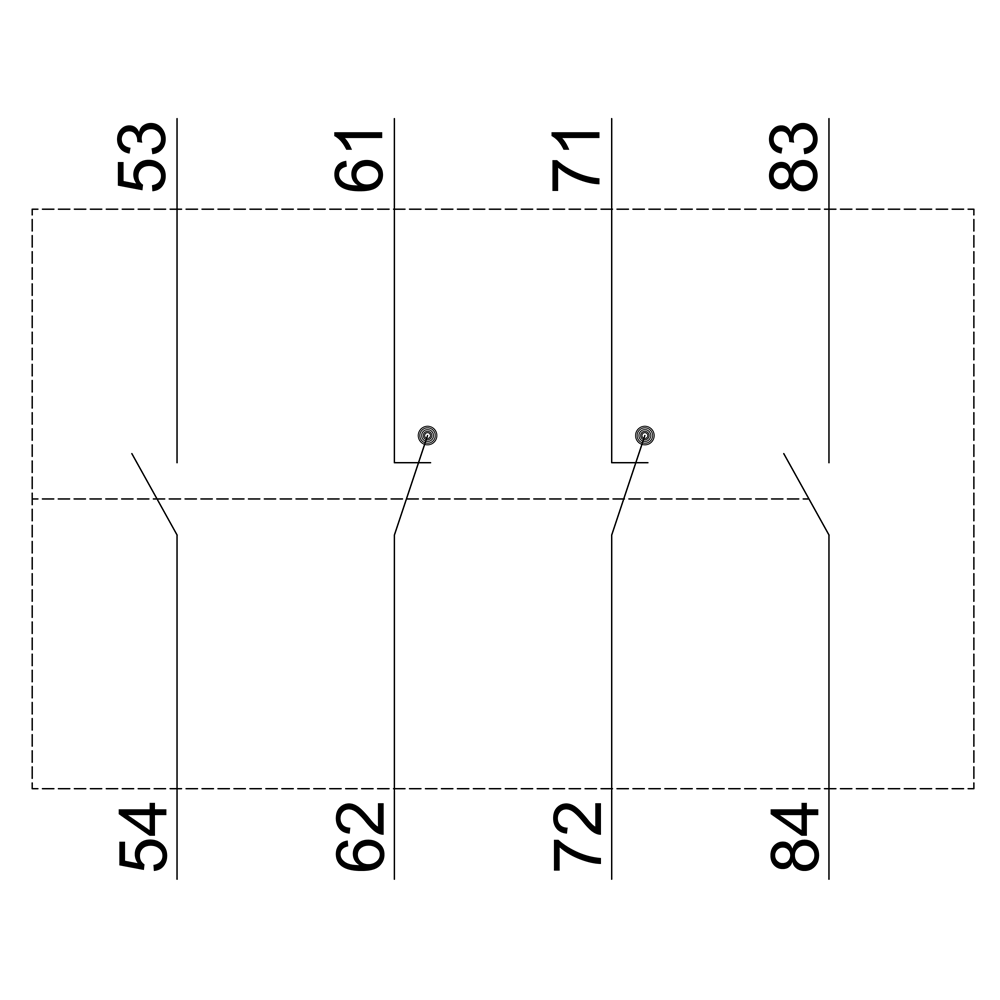

• 2 NO contacts
• 2 NC contacts
• Screw terminal
• For contactors 3RT1
• Sequence numbers 5…8
• Auxiliary switch SIRIUS 3RH19

Customer benefits:

• Can be fitted to 3RT1 contactors and 3RH1 contactor relays of sizes S0-S12 without the need for tools
• Available as versions for front or lateral mounting
• Up to four instantaneous contacts or up to two leading NO and NC contacts
• Designed as positively driven contacts in 3RH contactor relays or as mirror contacts in 3RT power contactors

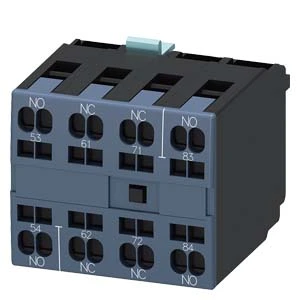

• Available with screw terminal and spring-type terminal
• Simple, efficient and always up to date - SIRIUS modular system
