Descriere

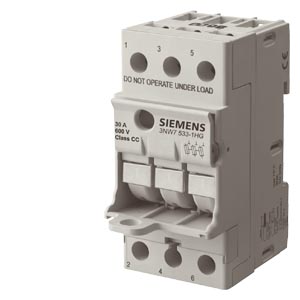

SENTRON, fuse holder, Class CC, 3-pole, In: 30 A, Un AC: 600 V, compact version, respect national installation rules! Fuse holder 3NW7 for SENTRON UL fuse systems for selective system protection. The UL fuse systems have UL and CSA approval for use in the North American market. The Class CC fuses are used for Branch Circuit Protection applications. The Class J fuse links are used for Branch Circuit Protection and in the Feeder Circuit. SENTRON circuit protection devices - A safe choice.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| With optical defect indication | No |
| Electrical | |
| Number of poles | 3 |
| Nominal voltage | 600 |
| Measurements | |
| For fuse size | Other |
| Width in number of modular spacings | 2.5 |
| Built-in depth | 58 |
| Options | |
| Lockable | Yes |
| Concurrently switching neutral conductor | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Mounting/installation | |
| Mounting method | DIN rail |
| Package 1 | |
| weight | 0,202 |
| length | 0,095 |
| width | 0,08 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869422329 |

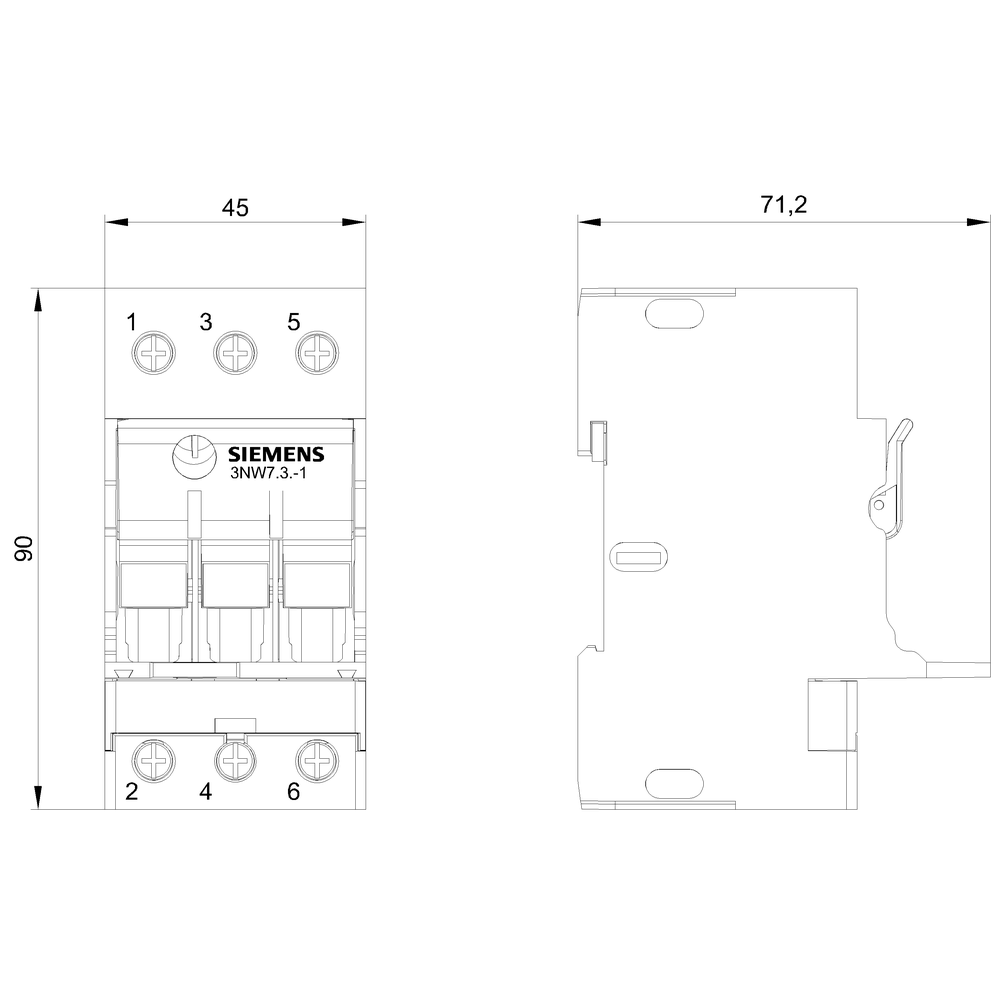

| Dimensions of product | |
| Weight | 0,202 |
