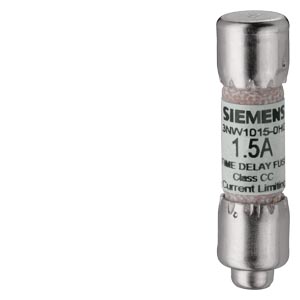

SENTRON, cylindrical fuse link, Class CC, 1.5 A, time-lag, Un AC: 600 V, respect national installation rules! for protection of control transformers, reactors and selenoids Cylindrical fuse link 3NW1 for SENTRON UL fuse systems for selective system protection. The UL fuse systems have UL and CSA approval for use in the North American market. The Class CC fuses are used for Branch Circuit Protection applications. The Class J fuse links are used for Branch Circuit Protection and in the Feeder Circuit. SENTRON circuit protection devices - A safe choice.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Breaking capacity | 200 |
| Power loss at rated current | - |
| Voltage type | AC |
| Release characteristic | Time-lag (T) |
| Rated voltage | 600 |
| Rated current | 1.5 |
| Measurements | |
| Size | Other |
| Model/type | |
| Model | Other |
| Type of fuse status indicator | - |
| Other | |
| Utilization category according to IEC 60269 | Other |
| Rated operating frequency | 50 |
| Package 1 | |
| weight | 0,008 |
| length | 0,085 |
| width | 0,053 |
| qmax | 10 |
| qmin | 10 |
| um | PA |
| gtin | 4001869333670 |
| Dimensions of product | |
| Weight | 0,008 |
