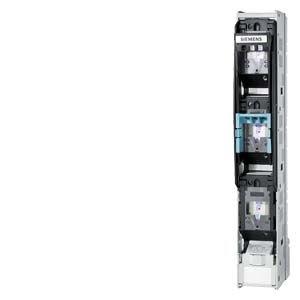

FUSE SWITCH DISCONNECTOR 3-POLE SELECTABLE, NEW DESIGN FOR PROTECTION OF TRANSFORMERS ON THE SECONDA

Cod produs: 3NJ4153-3BF01

▶

Autentificati-va pentru a vedea pretul.

Producator: Siemens

Set: 1 bucati

4011209823419

Descriere

fuse switch disconnector 3-pole switchable, for protection of transformers on the secondary side up to 500 kVA for LV HRC fuses GTR 722 A max., 400 V AC, and NH3 disconnecting blade up to 1000 A Fuse switch disconnectors DPMD_AAA958_001_000_3NJ 3NJ4 . SENTRON circuit protection devices - A safe choice.

Documente

Fisa tehnica

Certificat

Link to Certificates

Altele

Link to Sales brochure

Declaratie de conformitate

Alte surse

Specificatii

Model/type
Model	Fuse switch disconnector
Connection
Type of electrical connection of main circuit	Rail connection
Other
Release indication	-
Electrical
Number of poles	3
Max. rated operation voltage Ue AC	400
Conditioned rated short-circuit current Iq	-
Rated permanent current Iu	722
Options
Double interrupting	No
Measurements
Distance between rail centre, 50 mm	No
Construction size fuse insert	NH3
Distance between rail centre, 100 mm	No
Distance between rail centre, 40 mm	No
Distance between rail centre, 185 mm	Yes
Distance between rail centre, 60 mm	No
Package 1
weight	8,81
length	0,92
width	0,22
qmax	1
qmin	1
um	PA
gtin	4011209823419

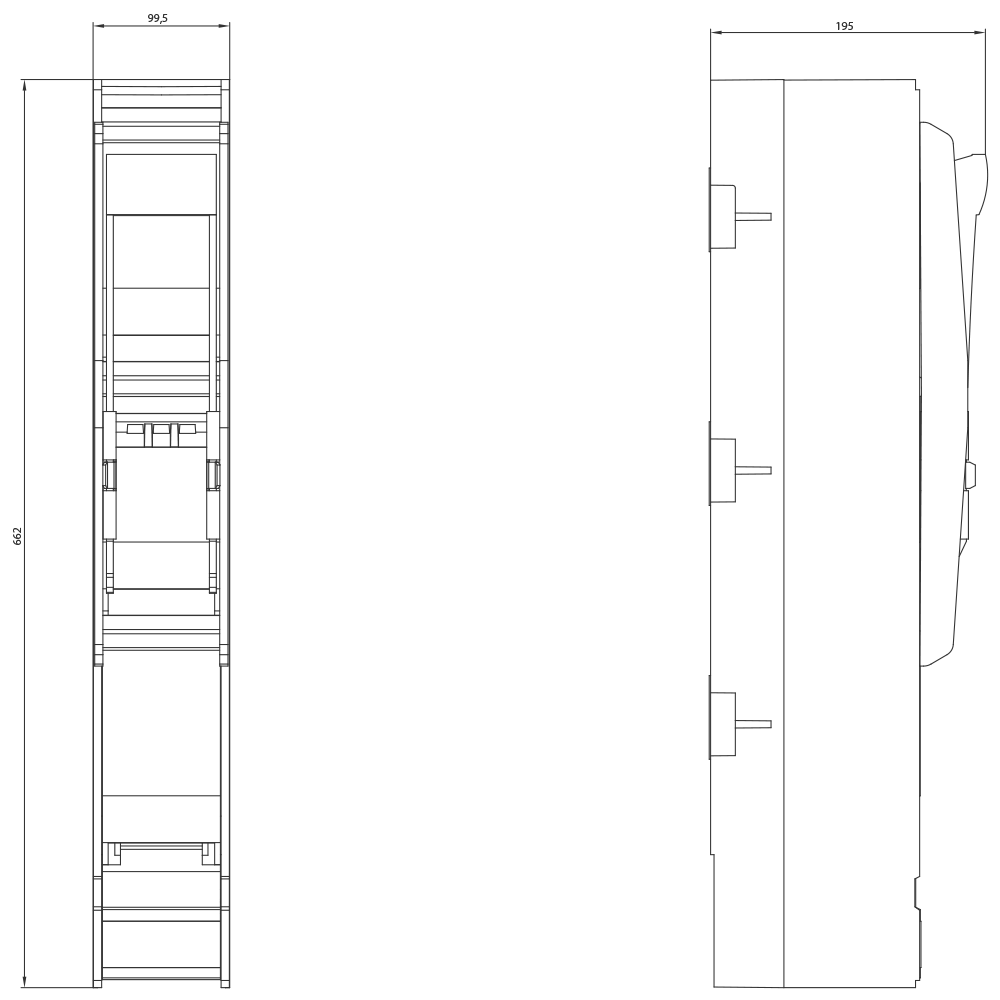

Dimensions of product
Weight	8,810
