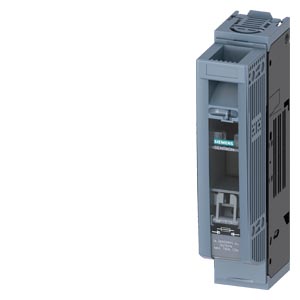

FUSE SWITCH DISCONNECTOR 3NP1, 1-POLE, NH00, 160 A, FOR ASSEMBLY AND INSTALLATION ON MOUNTING PLATE,
Cod produs: 3NP1131-1CA10
Descriere
SENTRON, fuse switch disconnector 3NP1
The SENTRON 3NP1 fuse switch disconnector provides enhanced protection for personnel and plants with a user-friendly connection system.
Technical details:
- Model: SENTRON 3NP1
- Type: Fuse switch disconnector
- Poles: 1-pole
- Size: NH00
- Current: 160 A
- Installation: For assembly and installation on mounting plate
- Terminal: Flat terminal
- Cover level: 45 mm
- Current range: Up to 630 A
- Degree of protection: IP40
- Electronic fuse monitoring function
- Flexible switching times of the auxiliary switch
- Reach-round and touch protection incorporated
- Available in 1-, 3-, and 4-pole versions
Customer benefits:
- Enhanced protection for personnel and plants
- User-friendly connection system
- Optional line monitoring capability
- Prevention of accidental contact with live parts during installation
- Optimized technology for safety
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| Version as emergency stop installation | No |
| With error protection | No |
| Version as main switch | No |
| Version as safety switch | Yes |
| Motor drive integrated | No |
| Type of control element | Cover grip |
| Connection | |
| Type of electrical connection of main circuit | Rail connection |
| Equipped with connectors | No |
| Cable entry | Other |
| Electrical | |
| Rated short-time withstand current lcw | - |
| Number of poles | 1 |
| Max. rated operation voltage Ue AC | 240 |
| Rated operation power at AC-23, 400 V | - |
| Rated permanent current Iu | 160 |
| Conditioned rated short-circuit current Iq | 80 |
| Application | |
| Suitable for fuses | NH000, NH00 |
| Mounting/installation | |
| Suitable for front mounting | No |
| Suitable for floor mounting | No |
| Suitable for busbar mounting | No |
| Options | |
| Motor drive optional | No |
| Setting/control | |
| Position control element | Front side |
| Protection | |
| Degree of protection (IP), front side | IP40 |
| Package 1 | |
| weight | 0,387 |
| length | 0,202 |
| width | 0,135 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869564388 |
| Dimensions of product | |
| Weight | 0,387 |
