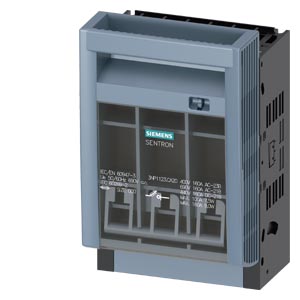

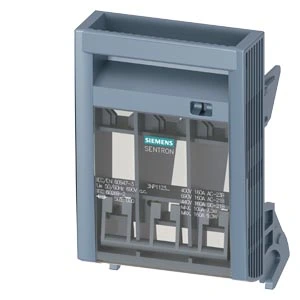

FUSE SWITCH DISCONNECTOR 3NP1, 3-POLE, NH000, 160 A, FOR ASSEMBLY AND INSTALLATION ON MOUNTING PLATE
Cod produs: 3NP1123-1CA20
Descriere
Fuse switch disconnector 3NP1
The SENTRON 3NP1 is a 3-pole fuse switch disconnector designed for safety and user-friendly installation with enhanced protection features.
Technical details:
- Model: SENTRON 3NP1
- Type: Fuse switch disconnector
- Poles: 3-pole
- Size: NH000
- Rated current: 160 A
- Installation: For assembly and installation on mounting plate
- Terminal type: Box terminal
- Cover level: 45 mm
- Current range: 125 A to 630 A
- Degree of protection: IP40
Customer benefits:
- Enhanced protection for personnel and plants.
- User-friendly connection system with flexible switching times for the auxiliary switch.
- Electronic fuse monitoring function for optional line monitoring.
- Reach-round and touch protection standard to prevent contact with current conducting parts.
- Optimized technology for safety only from Siemens.
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| Version as emergency stop installation | No |
| With error protection | No |
| Version as main switch | No |
| Version as safety switch | Yes |
| Motor drive integrated | No |
| Type of control element | Cover grip |
| Connection | |
| Type of electrical connection of main circuit | Frame clamp |
| Equipped with connectors | No |
| Cable entry | Other |
| Electrical | |
| Rated short-time withstand current lcw | - |
| Number of poles | 3 |
| Max. rated operation voltage Ue AC | 690 |
| Rated operation power at AC-23, 400 V | - |
| Rated permanent current Iu | 125 |
| Conditioned rated short-circuit current Iq | 80 |
| Application | |
| Suitable for fuses | NH000 |
| Mounting/installation | |
| Suitable for front mounting | No |
| Suitable for floor mounting | Yes |
| Suitable for busbar mounting | No |
| Options | |
| Motor drive optional | No |
| Setting/control | |
| Position control element | Front side |
| Protection | |
| Degree of protection (IP), front side | IP40 |
| Package 1 | |
| weight | 0,5285 |
| length | 0,085 |
| width | 0,256 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209699960 |
| Dimensions of product | |
| Weight | 0,5285 |
Accesorii
AUXILIARY SWITCH, 1 CHANGEOVER CONTACT, FOR SIZE NH000, ACCESSORY FOR FUSE SWITCH DISCONNECTOR 3NP1
Cod: 3NP1920-1FA00
Siemens
AUXILIARY SWITCH, 1 CHANGEOVER CONTACT SOLID-STATE COMPATIBLE, FOR SIZE NH000, ACCESSORY FOR FUSE SW
Cod: 3NP1920-1FB00
Siemens

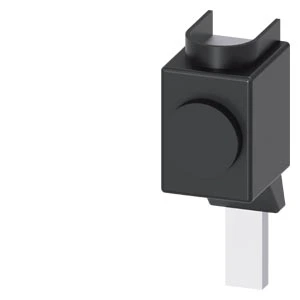

SUPPLY TERMINAL 16 - 95 MM2, FOR SIZE NH000 WITH BOX TERMINAL, ACCESSORY FOR FUSE SWITCH DISCONNECTO
Cod: 3NP1923-1BD00
Siemens

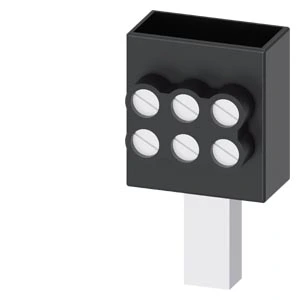

TRIPLE TERMINAL 3X 2.5 - 16 MM2, FOR SIZE NH000, NH00 WITH BOX TERMINAL, ACCESSORY FOR FUSE SWITCH D
Cod: 3NP1923-1BE20
Siemens

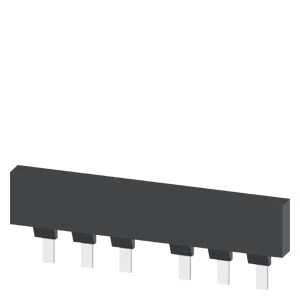

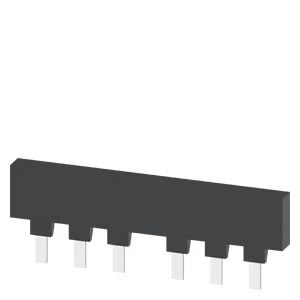

3-PHASE BUSBAR, FOR 2X SIZE NH000, ACCESSORY FOR FUSE SWITCH DISCONNECTOR 3NP1 CONTAINS 5 BARS
