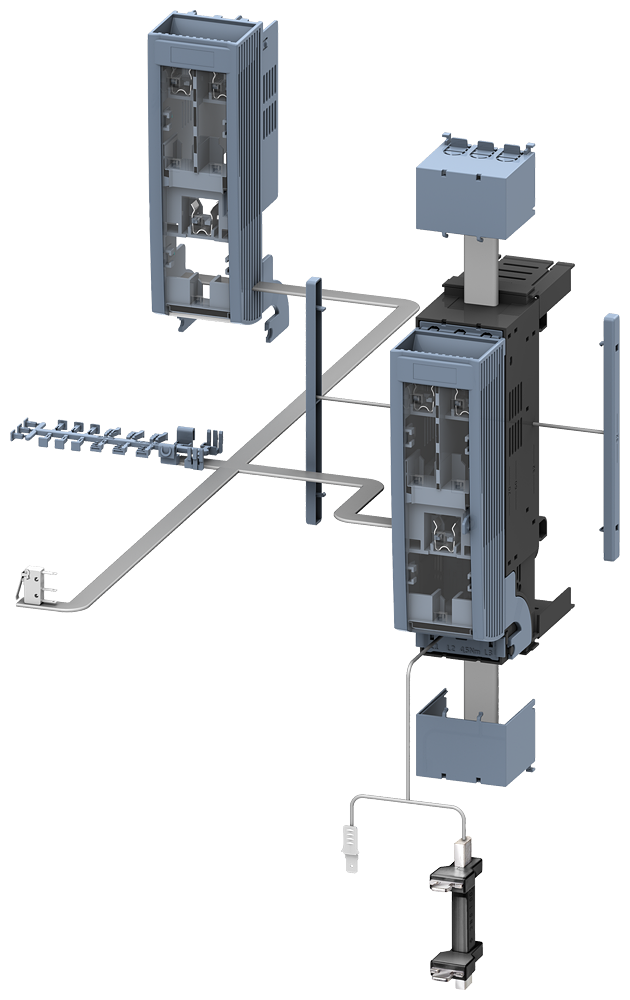

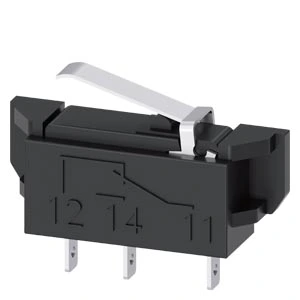

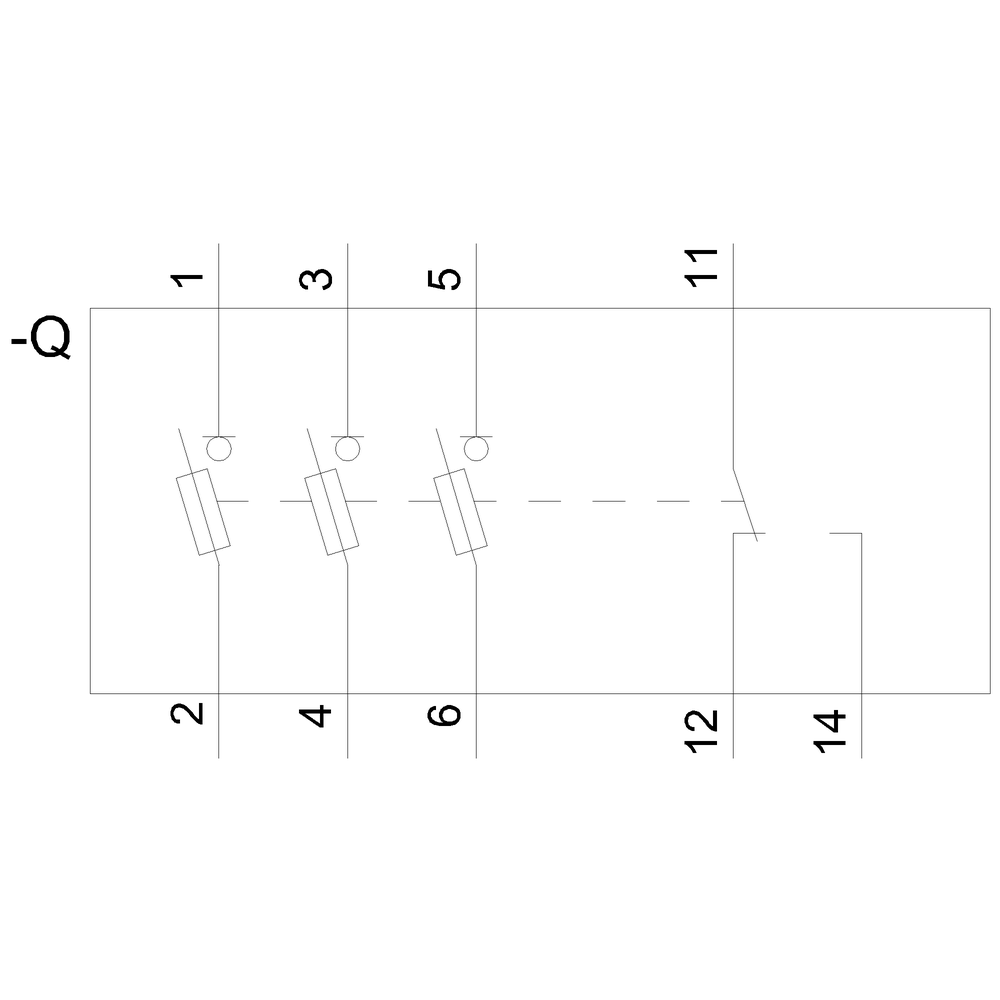

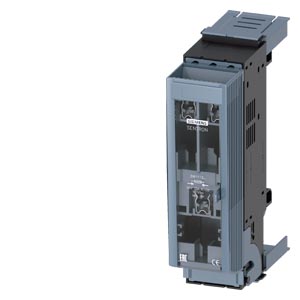

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH000 narrow, 125 A, for busbar systems 60 mm, box terminal, cable outlet upwards with auxiliary switch 1 CO Cover level 32/60/70 mm Fuse switch disconnector SENTRON 3NP1 3NP fuse switch disconnector up to 630 A with enhanced protection for personnel and plants and user-friendly connection system.. The fuse switch disconnectors have an electronic fuse monitoring function that enables optional line monitoring. Flexible switching times of the auxiliary switch are possible. The reach-round and touch protection incorporated as standard in the new SENTRON 3NP1 series prevents users from touching current conducting parts when mounting on a busbar system, even when accessing at the rear. 3NP1 fuse switch disconnectors are available in 1-, 3- and 4-pole versions for currents from 125 A to 630 A up to degree of protection IP40. Optimized technology for your safety - only from Siemens.
Documente
Specificatii
| Model/type | |
| Version as emergency stop installation | No |
| With error protection | No |
| Version as main switch | No |
| Version as safety switch | Yes |
| Motor drive integrated | No |
| Type of control element | Cover grip |
| Connection | |
| Type of electrical connection of main circuit | Frame clamp |
| Equipped with connectors | No |
| Cable entry | Other |
| Electrical | |
| Rated short-time withstand current lcw | - |
| Number of poles | 3 |
| Max. rated operation voltage Ue AC | 690 |
| Rated operation power at AC-23, 400 V | - |
| Rated permanent current Iu | 125 |
| Conditioned rated short-circuit current Iq | 80 |
| Application | |

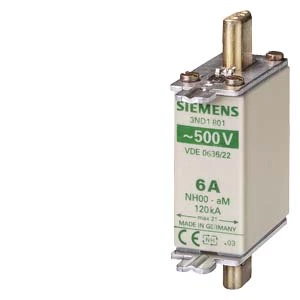

| Suitable for fuses | NH000 |
| Mounting/installation | |
| Suitable for front mounting | No |
| Suitable for floor mounting | No |
| Suitable for busbar mounting | Yes |
| Options | |
| Motor drive optional | No |
| Setting/control | |
| Position control element | Front side |
| Protection | |
| Degree of protection (IP), front side | IP30 |
| Package 1 | |
| weight | 0,76 |
| length | 0,226 |
| width | 0,146 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869599601 |
| Dimensions of product | |
| Weight | 0,76 |
