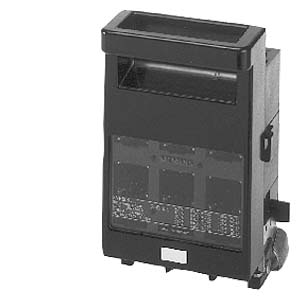

FUSE SWITCH DISCONNECTOR 3NP5, 3-POLE, NH00, 160 A, FOR ASSEMBLY AND INSTALLATION ON MOUNTING PLATE,
Cod produs: 3NP5060-0CB10
Descriere

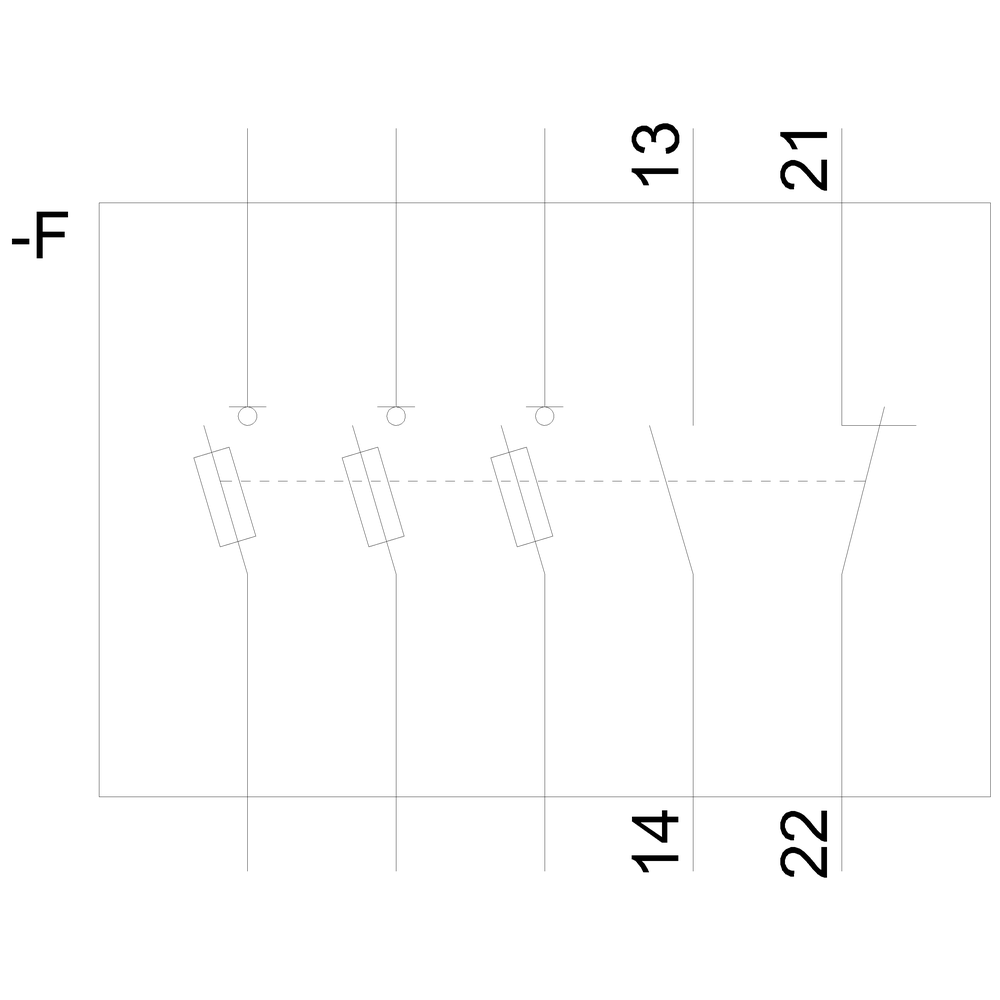

SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A, for assembly and installation on mounting plate, with High-speed closing, Clamp terminal, Auxiliary switch at Switch disconnector: 1 NO+1 NC Fuse switch disconnector 3NP up to 630 A with enhanced protection for personnel and plants and user-friendly connection system. Key features of the Siemens 3NP fuse switch disconnectors: 1. Maximum flexibility thanks to modular design and universal accessories. 2. Suitable for floor mounting, standard mounting rail, and Siemens busbar system 8US 3. Electronic fuse monitoring function including line monitoring. 4. Five sizes from 100 A to 630 A up to degree of protection IP40. 5. Fast and safe conversion for cable feeder top / bottom. 6. Flexible switching instants of auxiliary switch (simultaneous or leading). 7. Locking and sealing option.
Documente
Specificatii
| Model/type | |
| Version as emergency stop installation | No |
| With error protection | No |
| Version as main switch | No |
| Version as safety switch | Yes |
| Motor drive integrated | No |
| Type of control element | Cover grip |
| Connection | |
| Type of electrical connection of main circuit | Clamp bracket |
| Equipped with connectors | No |
| Cable entry | Other |
| Electrical | |
| Rated short-time withstand current lcw | - |
| Number of poles | 3 |
| Max. rated operation voltage Ue AC | 690 |
| Rated operation power at AC-23, 400 V | - |
| Rated permanent current Iu | 160 |
| Conditioned rated short-circuit current Iq | - |
| Application | |
| Suitable for fuses | NH000, NH00 |
| Mounting/installation | |
| Suitable for front mounting | No |
| Suitable for floor mounting | Yes |
| Suitable for busbar mounting | No |
| Options | |
| Motor drive optional | No |
| Setting/control | |
| Position control element | Front side |
| Protection | |
| Degree of protection (IP), front side | IP00 |
| Package 1 | |
| weight | 1,753 |
| length | 0,204 |
| width | 0,14 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209006003 |

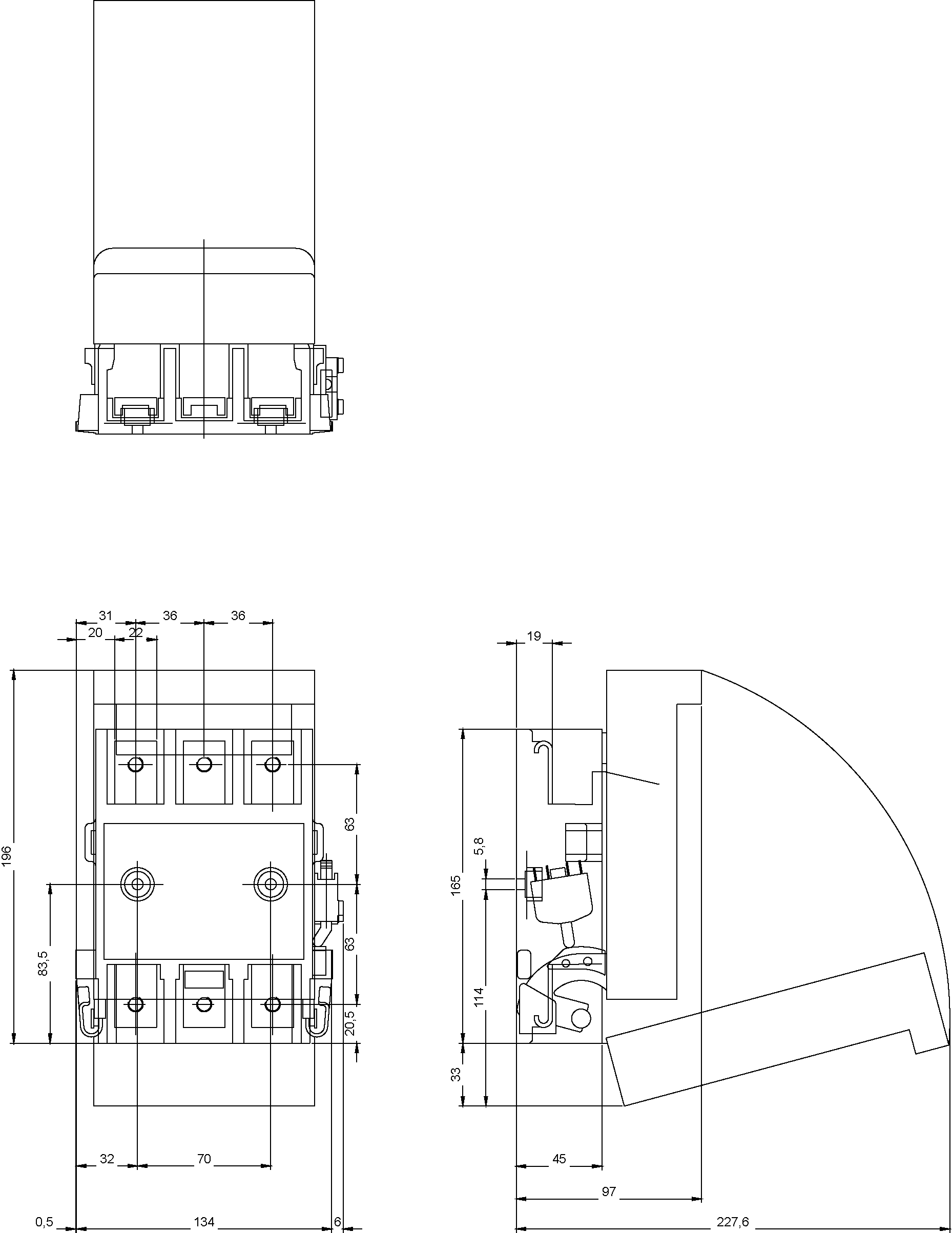

| Dimensions of product | |
| Weight | 1,753 |
