Descriere

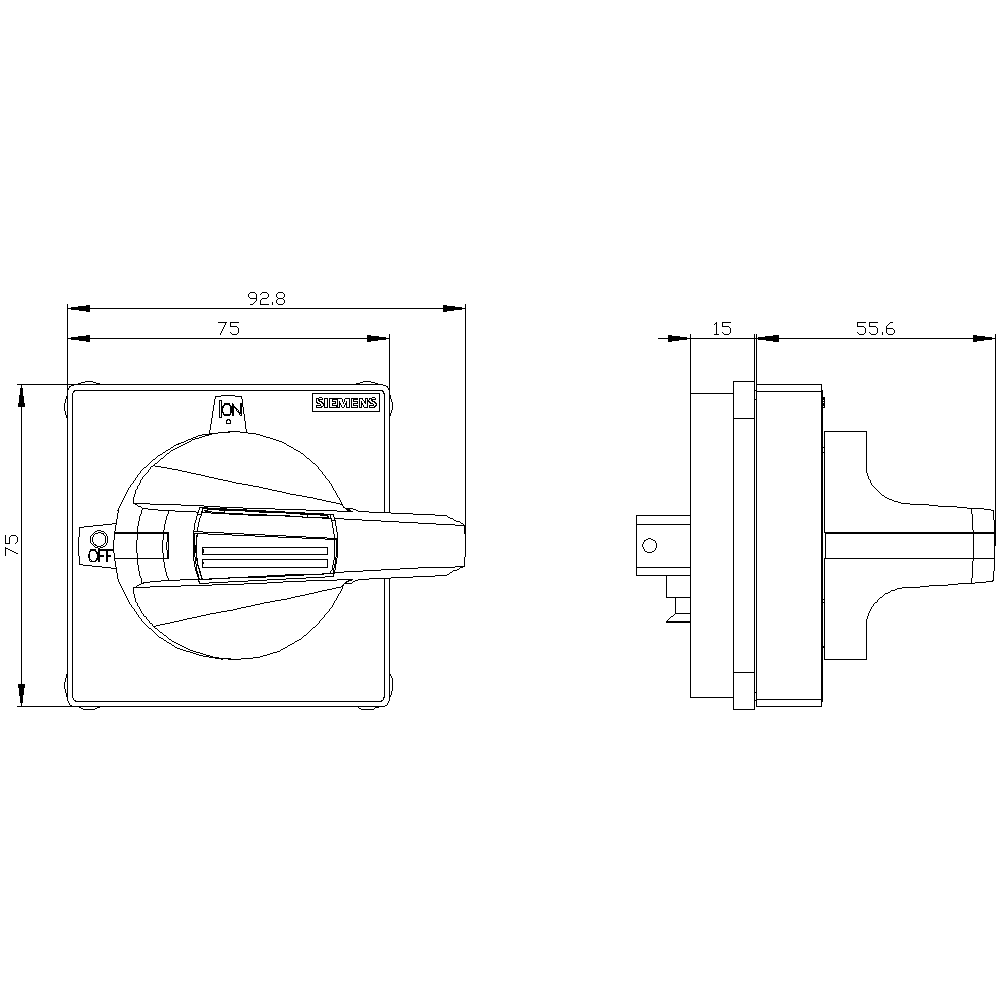

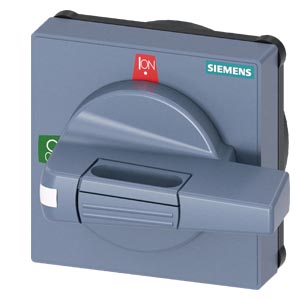

Handle with masking frame standard Size 75x 75, for shaft 8x 8, 0-I, Handle size 55 mm, 3LD5 UL Manual operators for all-round convenient operation of the 3VA molded case circuit breaker. Available as a front, door, and side panel rotary actuator with various locking and interlocking options. The handles are available in standard and EMERGENCY-STOP variants, each with or without an illumination kit. SENTRON 3VA molded case circuit breakers - One system. For all applications.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| Type of accessory/spare part | Other |
| Spare part | No |
| Accessory | Yes |
| Package 1 | |
| weight | 0,174 |
| length | 0,084 |
| width | 0,084 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869525273 |
| Dimensions of product | |
| Weight | 0,174 |
