Descriere

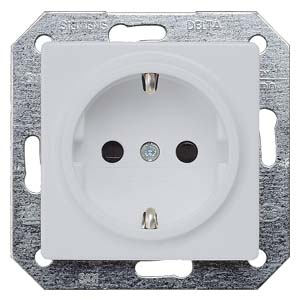

DELTA i-system aluminum-metallic SCHUKO socket outlet 10/16 A 250 V With screwless Connection terminals with increased touch protection cover plate 55 x 55 mm Due to its eternally stylish shapes and a multitude of colors, our comprehensive range of DELTA products provides you with a plethora of individual design options, which consummately accentuate the aesthetics of any room. The DELTA power outlets are fitted with a combination screw for Torx T10 and slotted screwdrivers. The 3 mm plaster compensation ensures reliable function even where wall conditions are extreme. The socket outlets are available with various design surfaces as well as in special versions for increased touch protection, with function displays, overvoltage protection, or labeling fields. DELTA switch and socket outlets - design and quality to perfection from Siemens.
Documente
Specificatii
| Model/type | |
| With enhanced contact protection | Yes |
| With miniature fuse | No |
| Model | Socket outlet with protective contact CEE 7/3 (type F) |
| Number of modules (module system) | - |
| With on/off switch | No |
| Number of socket outlets switchable | 0 |
| With hinged lid | No |
| With signal lamp | - |
| Number of loop throughs | - |
| Number of units | 1 |
| With built-in bluetooth speaker | No |
| With orientation lighting | No |
| With function lighting | No |
| With loop through function | Yes |
| Material | |
| Halogen free | Yes |
| Surface protection | Other |
| Material quality | Thermoplastic |
| Material | Plastic |
| Surface finishing | - |
| Approval/certification | |
| For heavy conditions according to VDE | No |
| Compliant with UK Building Regulations Part M | - |
| Connection | |
| Number of active contacts (round) | - |
| Number of active contacts (flat) | 2 |
| Number of active contacts (square) | - |
| Connection type | Push-in clamp |
| Number of ports USB-C | 0 |
| Number of ports USB-A | 0 |
| Colour | |
| Colour of switch operator | Other |
| Colour | Aluminium |
| Metallic colour | No |
| RAL-number (similar) | 9006 |
| Transparent | No |
| Other | |
| Frequency | 50 |
| Imprint/indication | None |
| Protective contact | - |
| Impact strength | - |
| Communication | |
| With Wi-Fi signal repeater | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Options | |
| Anti-bacterial treatment | No |
| Eject-mechanism | No |
| Rotated central insert | No |
| Lockable | No |
| Label space/information surface | No |
| IFTTT support available | No |
| Concurrently switching neutral conductor | No |
| Electrical | |
| Overvoltage protection | No |
| Special power supply | No special power supply |
| Nominal voltage | 250 |
| Nominal current | 16 |
| Max. current rating of USB power supply | - |
| Rated fault current | - |
| Number of phases | 2 |
| Protection | |
| Fault current protection | No |
| Suitable for degree of protection (IP) | IP20 |
| Measurements | |
| Device height | 70 |
| Device width | 70 |
| Min. depth of built-in installation box | 45 |
| Device depth | 45 |
| Mounting/installation | |
| Mounting method | Flush-mounted |
| Insulated mounting | No |
| Type of fastening | Mounting with claw and screw |
| Package 1 | |
| weight | 0,085 |
| length | 0,085 |
| width | 0,05 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869234304 |
| Dimensions of product | |
| Weight | 0,085 |
