Descriere

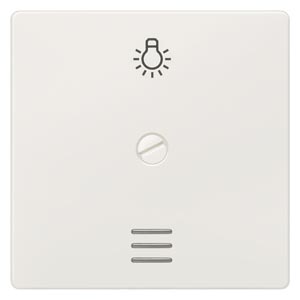

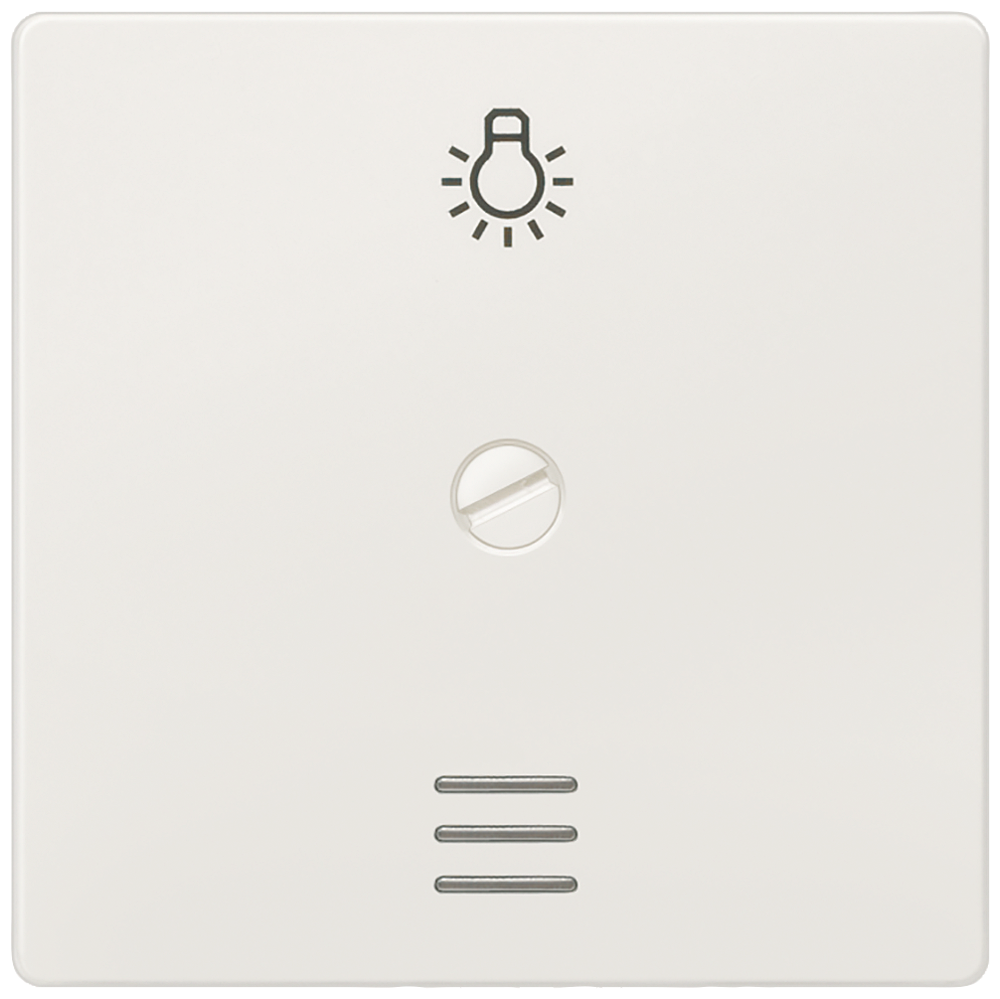

DELTA i-system titanium white Rocker switch, can be screwed, with window with symbol light for pushbutton, 55x 55 mm Due to its eternally stylish shapes and a multitude of colors, our comprehensive range of DELTA products provides you with a plethora of individual design options, which consummately accentuate the aesthetics of any room. The DELTA design parts such as rockers and frames are of high quality and durable and, with 3 mm of plaster compensation, ensure reliable functioning even where wall conditions are extreme. A wide range of design surfaces made of high-value materials such as glass, wood, metal, and plastic are available in up-to-date colors for your interior design. Special designs such as rockers with illumination or labeling field as well as other surfaces for multimedia and communication are also available. DELTA switch and socket outlets - design and quality to perfection from Siemens.
Documente
Specificatii
| Measurements | |
| Depth | - |
| Height | - |
| Width | - |
| Other | |
| Imprint/indication | Symbol "light" |
| Impact strength | - |
| Material | |
| Halogen free | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface finishing | Glossy |
| Surface protection | Other |
| Application | |
| Utilization | Switch/push button |
| Suitable for touch sensor connector for bus system | No |
| Model/type | |
| Model | One-part rocker |
| With label area | No |
| With exchangeable lens/symbol | No |
| Options | |
| Anti-bacterial treatment | No |
| Scannable symbol/barrier free | No |
| Monitoring window/light outlet | Yes |
| Colour | |
| RAL-number (similar) | 9010 |
| Colour | White |
| Protection | |
| Suitable for degree of protection (IP) | IP20 |
| Mounting/installation | |
| Type of fastening | Other |
| Package 1 | |
| weight | 0,023 |
| length | 0,07 |
| width | 0,04 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869271668 |
| Dimensions of product | |
| Weight | 0,023 |
