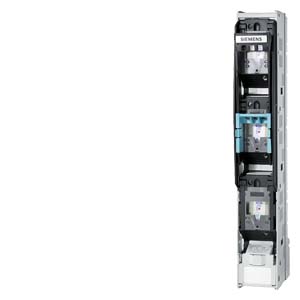

IN-LINE FUSE SWITCH DISCONNECTOR 3-POLE SELECTABLE, SZ. 3 I=630 A, U=690V STUD TERMINAL M12, NEW DES
Cod produs: 3NJ4143-3BJ01
Descriere
In-line fuse switch disconnector 3-pole selectable
The product is designed for reliable circuit protection with flexibility in selection.
Technical details:
- Size: 3
- Current: I=630 A
- Voltage: U=690 V
- Terminal type: stud terminal M12
- Model: Fuse switch disconnectors DPMD_AAA958_001_000_3NJ 3NJ4
Customer benefits:
- SENTRON circuit protection devices - A safe choice.
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| Model | Fuse switch disconnector |
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Other | |
| Release indication | - |
| Electrical | |
| Number of poles | 3 |
| Max. rated operation voltage Ue AC | 690 |
| Conditioned rated short-circuit current Iq | - |
| Rated permanent current Iu | 630 |
| Options | |
| Double interrupting | No |
| Measurements | |
| Distance between rail centre, 50 mm | No |
| Construction size fuse insert | NH2, NH3 |
| Distance between rail centre, 100 mm | No |
| Distance between rail centre, 40 mm | No |
| Distance between rail centre, 185 mm | Yes |
| Distance between rail centre, 60 mm | No |
| Package 1 | |
| weight | 5,87 |
| length | 0,78 |
| width | 0,23 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209513310 |
| Dimensions of product | |
| Weight | 5,870 |
