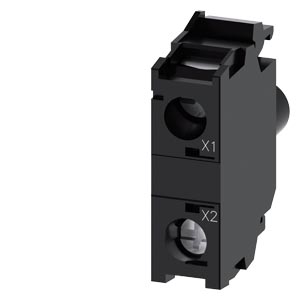

LED MODULE WITH INTEGRATED LED, 24-240 V AC/DC, RED, SCREW TERMINAL, FOR FRONT PLATE MOUNTING
Cod produs: 3SU1401-1BH20-1AA0
Descriere
LED Module with Integrated LED
The LED module is designed for illuminating SIRIUS ACT pushbuttons and indicator lights with high luminosity using energy-efficient LED technology.
Technical details:
- Voltage: 24-240 V AC/DC
- Color: Red
- Connection Type: Screw terminal
- Mounting: For front plate mounting
- Approvals: Global product approvals
- Installation: Innovative snap-on concept for easy one-handed installation
- Protection: High degree of protection suitable for industry and outdoor use
- Wiring Options: Standard wiring, PROFINET, AS-Interface, IO-Link
- Versions: Several colors, various voltage variants, various types of connection and installation
Customer benefits:
- High luminosity thanks to energy-efficient LED technology
- Easy installation with one hand and no special tools needed
- Full twist prevention integrated into groove-free mounting holes
- Reliable operation even under harsh conditions (dust, oils, caustic solutions)
- Reduced wiring time and effort, minimizing error sources
- Flexible connection options to a controller
- Convenient design support via graphical Online Configurator

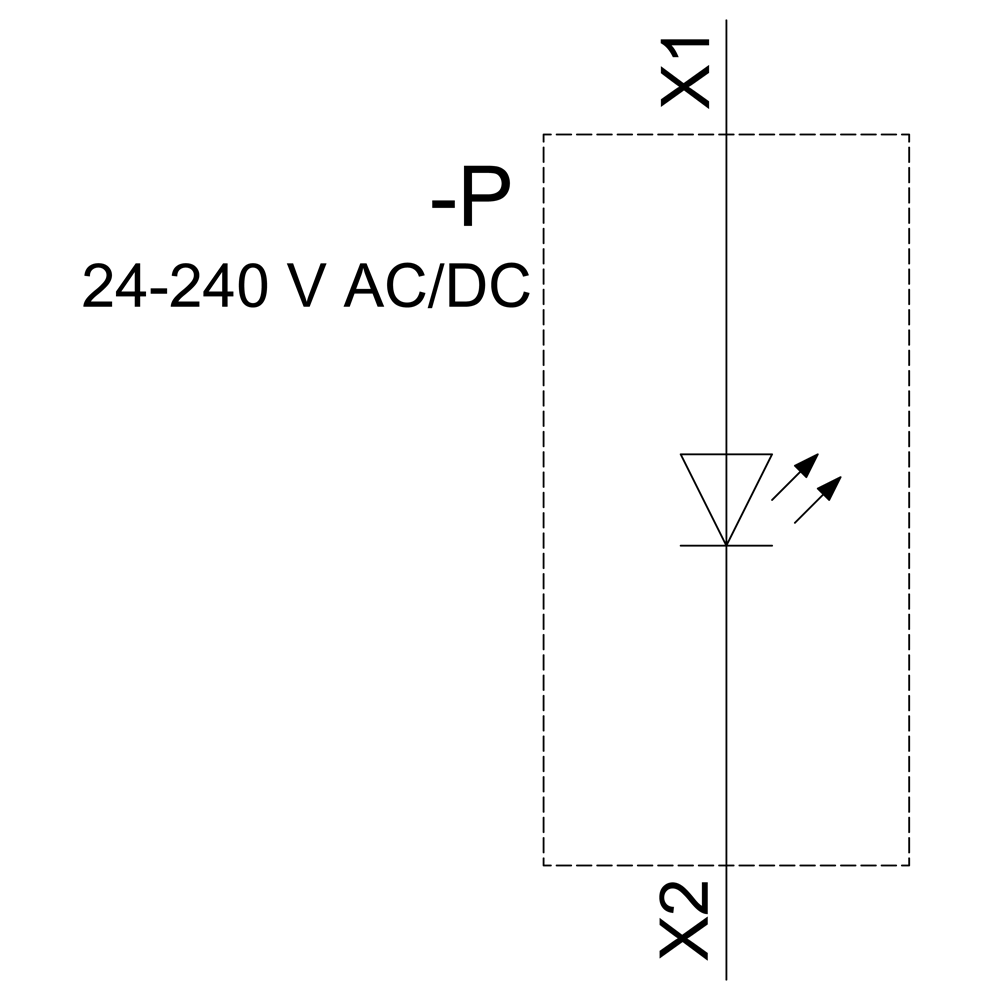

- Extensive documentation available (manual, 3D data, terminal diagram)
Disclaimer: Generated by AI.
Documente
Specificatii
| Model/type | |
| Lamp holder | - |
| With light source | Yes |
| Lamp type | LED |
| With integrated diode | Yes |
| Electrical | |
| Voltage type for actuating | AC/DC |
| Rated voltage Ue at AC 60 Hz | 24 |
| Rated voltage Ue at DC | 24 |
| Rated voltage Ue at AC 50 Hz | 24 |
| With integrated voltage decreasing resistor | No |
| Connection | |
| Connection type auxiliary circuit | Screw connection |
| Mounting/installation | |
| Type of fastening | - |
| Colour | |
| Colour light source | Red |
| Options | |
| Transformer integrated | No |
| Package 1 | |
| weight | 0,01 |
| length | 0,035 |
| width | 0,035 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209938748 |
| Dimensions of product | |
| Weight | 0,01 |
