LED MODULE WITH INTEGRATED LED, 24-240 V AC/DC, WHITE, SCREW TERMINAL, FOR FRONT PLATE MOUNTING
Cod produs: 3SU1401-1BH60-1AA0
Descriere

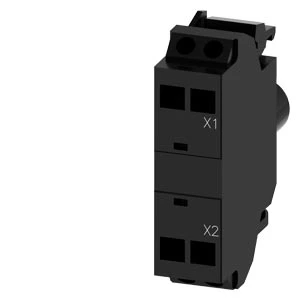

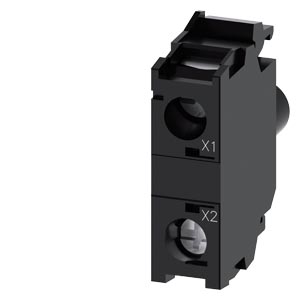

LED Module SIRIUS ACT
LED module with integrated LED, 24-240 V AC/DC, white, screw terminal, for front plate mounting, illuminating SIRIUS ACT pushbuttons and indicator lights with high luminosity.
Technical details:
- Integrated LED
- 24-240 V AC/DC
- White
- Screw terminal
- Front plate mounting
- Suitable for use in industry and outdoors
- Available versions: Several colors, various voltage variants, various types of connection and installation
Customer benefits:
- High luminosity thanks to energy efficient LED technology
- Innovative snap-on concept allows easy installation with one hand and without special tools
- Groove-free holes for mounting with integrated twist prevention
- Rugged devices with high degree of protection
- Cleaning with high-pressure jet possible
- Standard wiring and connectivity via PROFINET, AS-Interface or IO-Link for reduced wiring time and effort
- Graphical Online Configurator for convenient support when selecting and ordering

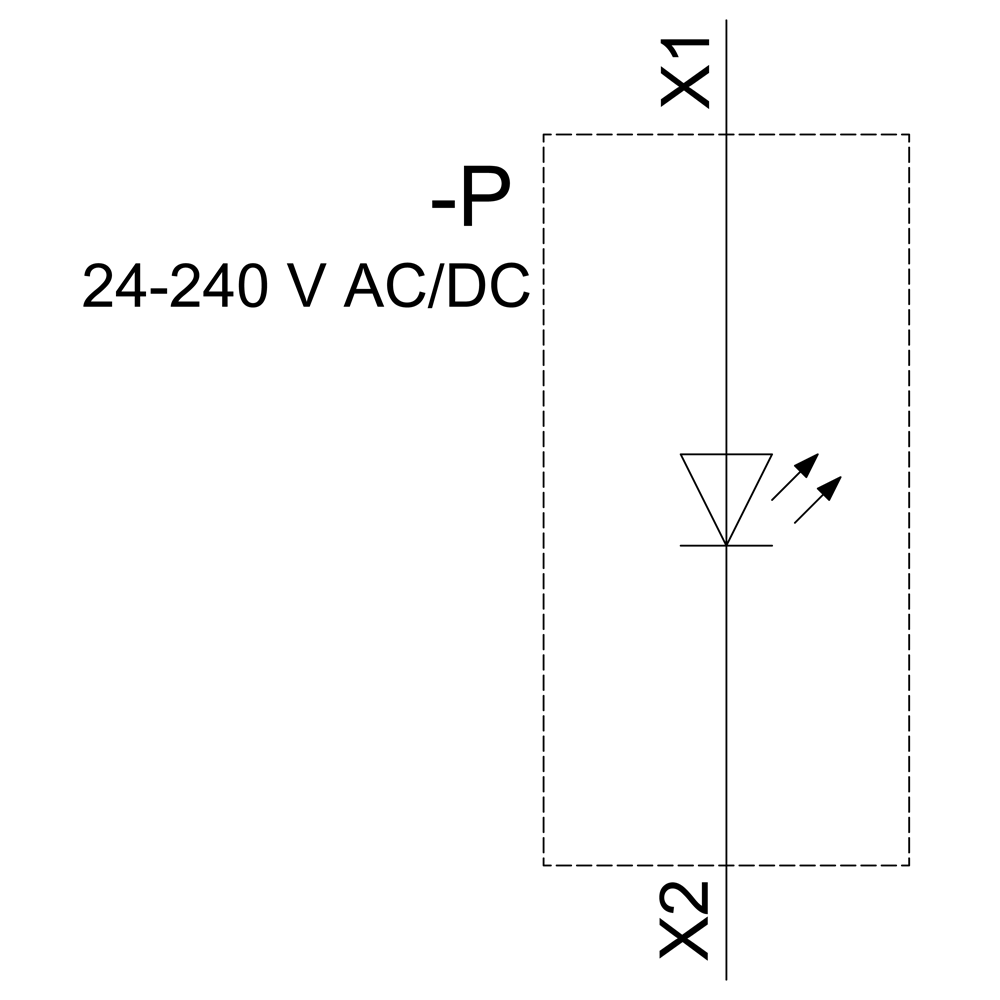

- Extensive documentation available (e.g. manual, 3D data, terminal diagram)
Disclaimer: Generated by AI.
Documente
Specificatii
| Model/type | |
| Lamp holder | - |
| With light source | Yes |
| Lamp type | LED |
| With integrated diode | Yes |
| Electrical | |
| Voltage type for actuating | AC/DC |
| Rated voltage Ue at AC 60 Hz | 24 |
| Rated voltage Ue at DC | 24 |
| Rated voltage Ue at AC 50 Hz | 24 |
| With integrated voltage decreasing resistor | No |
| Connection | |
| Connection type auxiliary circuit | Screw connection |
| Mounting/installation | |
| Type of fastening | - |
| Colour | |
| Colour light source | White |
| Options | |
| Transformer integrated | No |
| Package 1 | |
| weight | 0,01 |
| length | 0,157 |
| width | 0,095 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209938786 |
| Dimensions of product | |
| Weight | 0,01 |
