Descriere

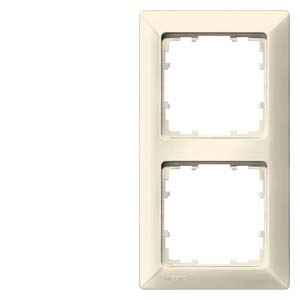

Delta line, electrical white frame 2-fold, 151x 80 mm

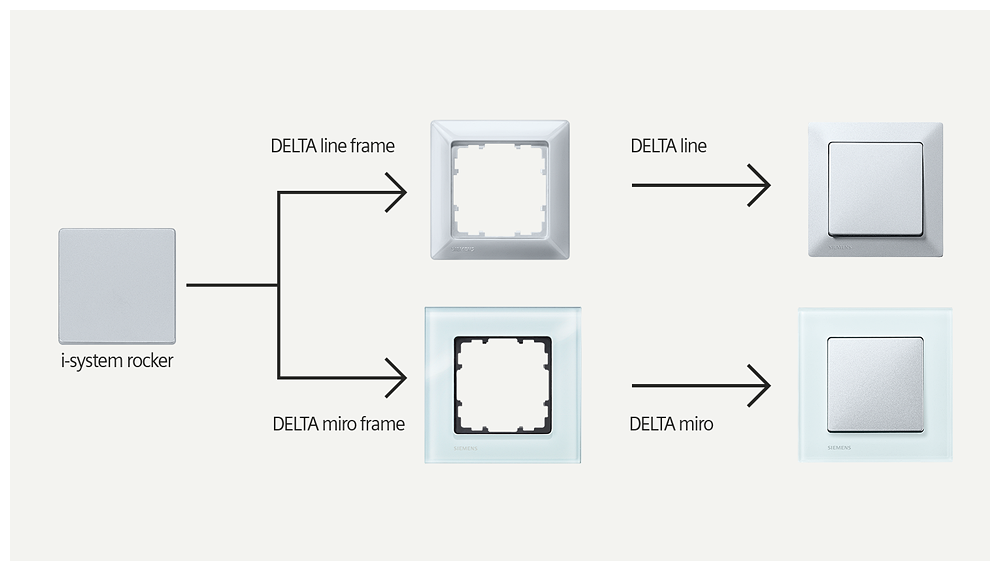

The DELTA line offers a stylish and versatile range of electrical components to enhance the aesthetics of any room.
Technical details:
- Product type: DELTA line
- Frame color: White
- Frame type: 2-fold

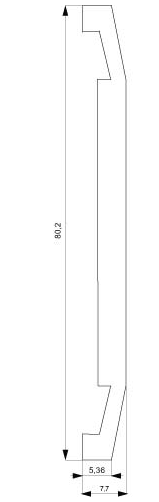

- Dimensions: 151x 80 mm
- Plaster compensation: 3 mm
Customer benefits:
- Comprehensive range providing a plethora of individual design options.
- High quality and durable design parts such as rockers and frames.
- Reliable functioning even where wall conditions are extreme.
- Wide range of design surfaces in high-value materials like glass, wood, metal, and plastic.
- Availability of special designs including rockers with illumination and labeling fields.
- Perfect design and quality from Siemens for switch and socket outlets.
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Measurements | |
| Depth | - |
| Height | 151 |
| Built-in height | - |
| Diameter bore hole (opening) | 68 |
| Built-in width | - |
| Width | 80 |
| Material | |
| Halogen free | Yes |
| Surface protection | Other |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface finishing | Glossy |
| Mounting/installation | |
| With mounting grid | - |
| Suitable for wall duct | No |
| Mounting direction | Horizontal and vertical |
| Type of fastening | Clamp mounting |
| Flush-mounted installation | Yes |
| Suitable for built-in installation | No |
| Other | |
| Impact strength | - |
| Colour | |
| RAL-number (similar) | - |
| Transparent | No |
| Colour | White |
| Application | |
| Suitable for subfloor installation duct box | No |
| Model/type | |
| Number of device inserts vertical | - |
| With hinged lid | No |
| Number of device inserts horizontal | - |
| Number of units | 2 |
| Number of modules vertical (module system) | 2 |
| Number of modules horizontal (module system) | 2 |
| Options | |
| Anti-bacterial treatment | No |
| Label space/information surface | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Package 1 | |
| weight | 0,023 |
| length | 0,16 |
| width | 0,008 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869308715 |
| Package 2 | |
| volume | 0,026 |
| weight | 2,3 |
| length | 0,44 |
| width | 0,325 |
| qmax | 80 |
| qmin | 80 |
| um | CT |
| gtin | 4001869308715 |
| Dimensions of product | |
| Weight | 0,023 |
