LOGO! 24CE, logic module, display power supply / I/O: 24 V/24 V/24 V trans., 8 DI (4 AI)/4 DO

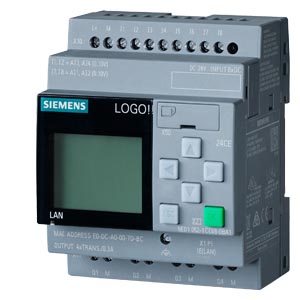

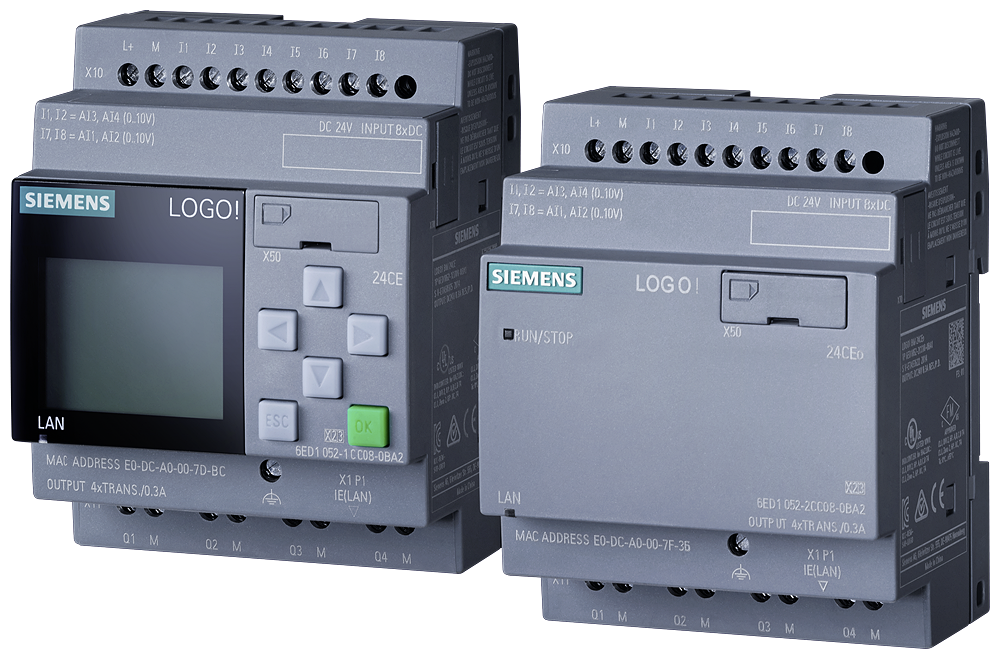

LOGO! 24CE

The LOGO! 24CE is a versatile logic module with integrated web server capabilities, designed for efficient control and monitoring of connected loads.

Technical details:

• Display power supply / I/O: 24 V/24 V/24 V trans.
• 8 DI (4 AI)/4 DO
• Memory: 400 blocks
• Modularly expandable
• Integrated Ethernet web server
• Data log
• User-defined web pages
• Standard microSD card for LOGO! Soft Comfort V8.4 or higher
• Older projects executable cloud connection
• MQTT in all LOGO! 8.4 basic units
• Installation width: 72 mm
• Up to 24 DI / 20 DO (8 AI / 8 AQ)
• Up to 10 A rating for outputs
• Cloud communication integrated

Customer benefits:

• Seamless communication between up to nine LOGO! 8 modules or SIMATIC S7 systems.
• Easy creation and simulation of switching programs on PC.
• Monitoring and control of connected loads over WLAN or Internet.
• Customizable web pages can be designed without HTML knowledge.
• GSM or GPS communication and integration in KNX building management systems are possible.
• Expansion possibilities with external text display for clear message visibility.
• Selectable color for backlit display for visual emphasis.
