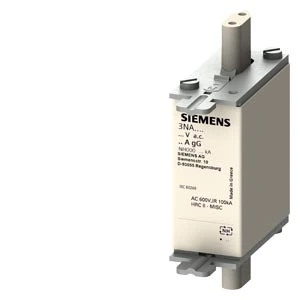

LV HRC FUSE ELEMENT, NH00, IN: 100 A, GG, UN AC: 690V, UN DC: 250V, FRONT INDICATOR, LIVE GRIP LUGS

Cod produs: 3NA3830-6

▶

Autentificati-va pentru a vedea pretul.

Producator: Siemens

Set: 1 bucati

4001869057248

Alte coduri: upc: 754554307619

Descriere

Lv hrc fuse element

The LV HRC fuse element is designed for effective personal, equipment, and line protection with reliable disconnection in the event of overload and short-circuit.

Technical details:

Model: NH00
In: 100 A
gG
Un AC: 690 V
Un DC: 250 V
Front indicator
Live grip lugs
Available sizes: 000, 00, 0, 1, 2, 3, 4, and 4a
Versions with communication and metering function in size 2 from 80 A to 315 A

Customer benefits:

Provides effective personal, equipment, and line protection
Reliable disconnection in the event of overload and short-circuit
Available for a wide range of current ratings from 2 A to 1250 A
Enhanced safety with SENTRON circuit protection devices

Disclaimer: Generated by AI.

Documente

Fisa tehnica

Certificat

Link to Certificates

Altele

Link to Sales brochure

Declaratie de conformitate

Alte surse

Specificatii

Electrical
Rated voltage DC	250
Power loss at rated current	9
Rated voltage AC	690
Fuse construction type according to IEC 60269	NH00
Voltage type	AC/DC
Rated current	100
Model/type
Type of fuse status indicator	Top fuse status indicator
Options
Insulated metal gripping lugs (IMGL)	No
Performance
Rated switching capacity DC	25
Rated switching capacity AC	120
Other
Utilization category according to IEC 60269	gG
Package 1
weight	0,2
length	0,095
width	0,083
qmax	3
qmin	3
um	PA
gtin	4001869057248
Dimensions of product
Weight	0,2
