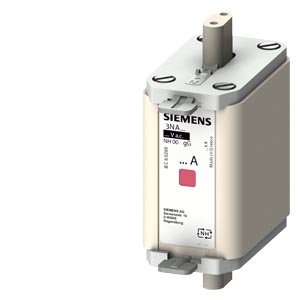

LV HRC FUSE ELEMENT, NH00, IN: 125 A, GG, UN AC: 400V, COMBINED INDICATOR, INSULATED GRIP LUGS

Cod produs: 3NA6832-4

▶

Autentificati-va pentru a vedea pretul.

Producator: Siemens

Set: 1 bucati

4001869216744

Descriere

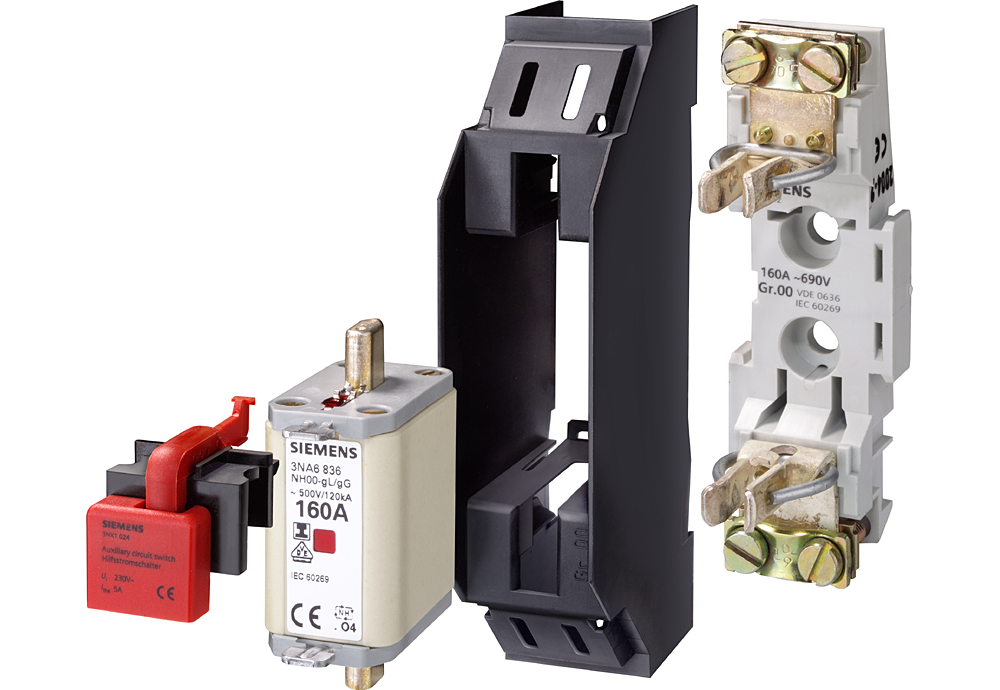

LV HRC fuse element, NH00, In: 125 A, gG, Un AC: 400 V, Combined indicator, insulated Grip lugs LV HRC fuse link SENTRON 3NA6 for selective system and line protection. The LV HRC fuse system provides effective personal, equipment and line protection with reliable disconnection in the event of overload and short-circuit. Combination alarms signal the tripping of a fuse by a clear color change from red to white. The LV HRC fuse links are available from 2 A to 1250 A in the sizes 000, 00, 0, 1, 2, 3, 4 and 4a. The versions with communication and metering function in size 2 from 80 A to 315 A. SENTRON circuit protection devices - The safe choice. Now made smarter.

Documente

Fisa tehnica

Certificat

Link to Certificates

Altele

Link to Sales brochure

Declaratie de conformitate

Alte surse

Specificatii

Electrical
Rated voltage AC	400
Power loss at rated current	9
Voltage type	AC
Rated voltage DC	-
Fuse construction type according to IEC 60269	NH00
Rated current	125
Model/type
Type of fuse status indicator	Combination fuse status indicator
Other
Utilization category according to IEC 60269	gG
Performance
Rated switching capacity AC	120
Rated switching capacity DC	-
Options
Insulated metal gripping lugs (IMGL)	Yes
Package 1
weight	0,202
length	0,095
width	0,083
qmax	3
qmin	3
um	PA
gtin	4001869216744

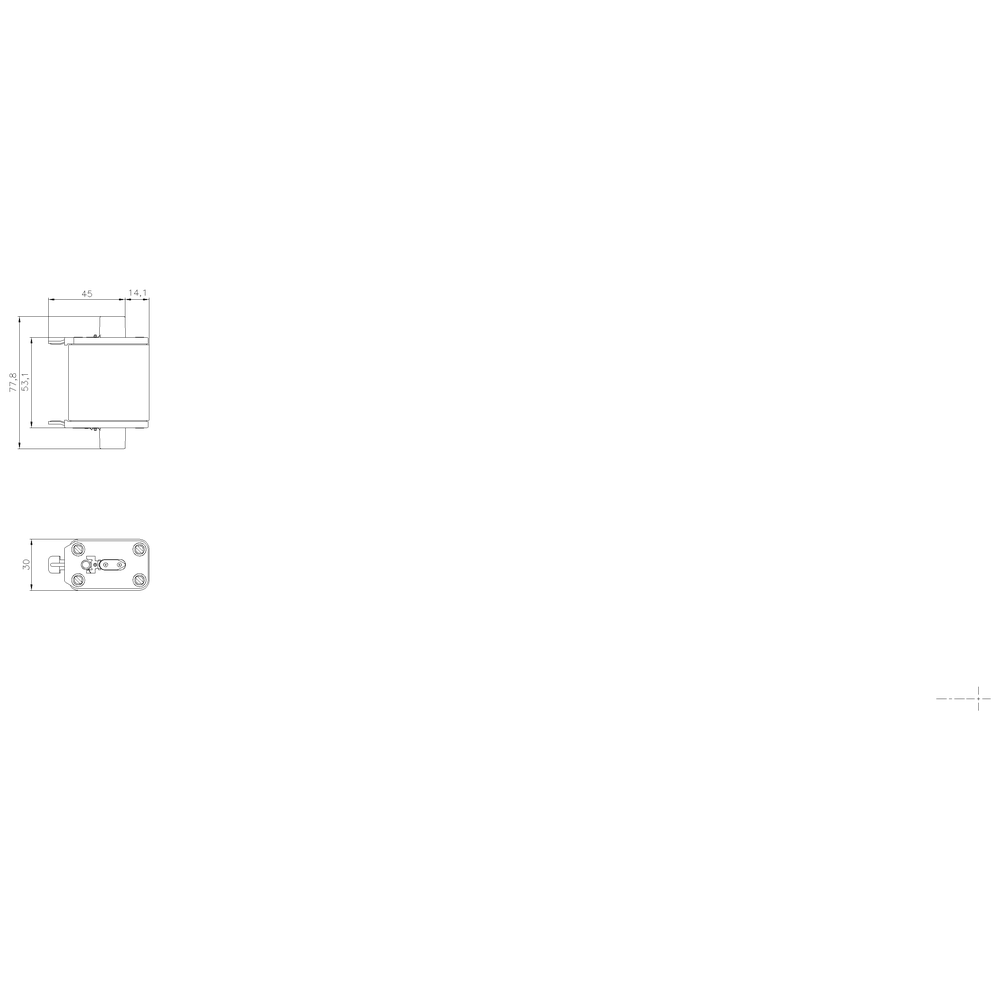

Dimensions of product
Weight	0,202

Afiseaza mai multe specificatii
