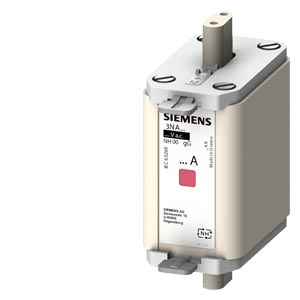

LV HRC FUSE ELEMENT, NH00, IN: 63 A, GG, UN AC: 690V, UN DC: 250V, COMBINED INDICATOR, INSULATED GRI
Cod produs: 3NA6822-6
Alte coduri:
upc: 754554775722
Descriere

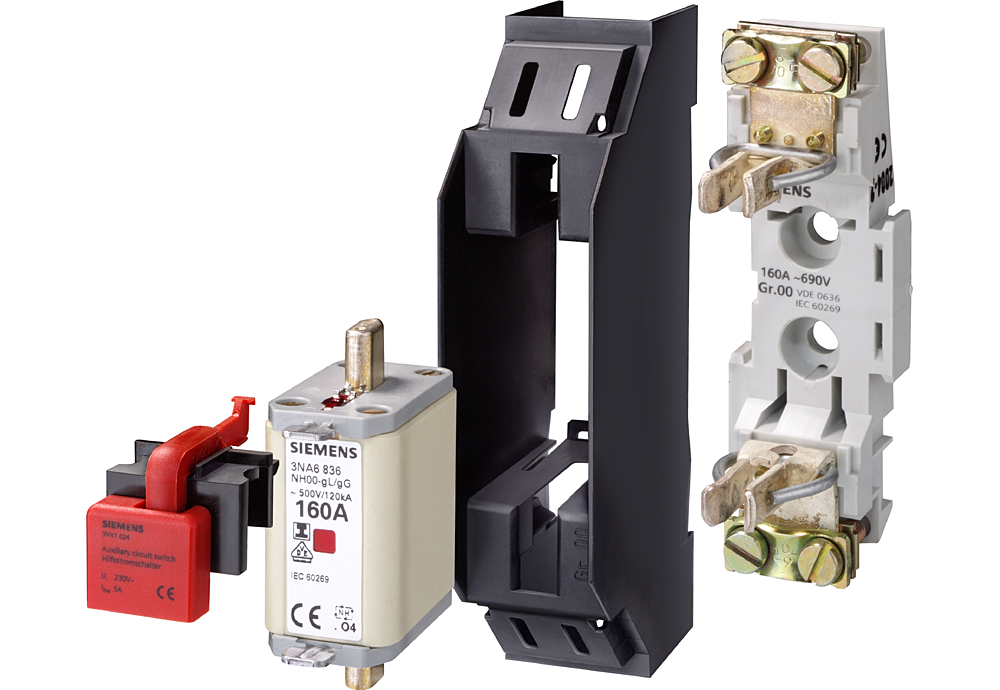

LV HRC fuse element, NH00, In: 63 A, gG, Un AC: 690 V, Un DC: 250 V, Combined indicator, Insulated grip lugs LV HRC fuse link SENTRON 3NA6 for selective system and line protection. The LV HRC fuse system provides effective personal, equipment and line protection with reliable disconnection in the event of overload and short-circuit. Combination alarms signal the tripping of a fuse by a clear color change from red to white. The LV HRC fuse links are available from 2 A to 1250 A in the sizes 000, 00, 0, 1, 2, 3, 4 and 4a. The versions with communication and metering function in size 2 from 80 A to 315 A. SENTRON circuit protection devices - The safe choice. Now made smarter.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Rated voltage DC | 250 |
| Power loss at rated current | 5 |
| Rated voltage AC | 690 |
| Fuse construction type according to IEC 60269 | NH00 |
| Voltage type | AC/DC |
| Rated current | 63 |
| Model/type | |
| Type of fuse status indicator | Combination fuse status indicator |
| Options | |
| Insulated metal gripping lugs (IMGL) | Yes |
| Performance | |
| Rated switching capacity DC | 25 |
| Rated switching capacity AC | 120 |
| Other | |
| Utilization category according to IEC 60269 | gG |
| Package 1 | |
| weight | 0,201 |
| length | 0,095 |
| width | 0,083 |
| qmax | 3 |
| qmin | 3 |
| um | PA |
| gtin | 4001869151090 |

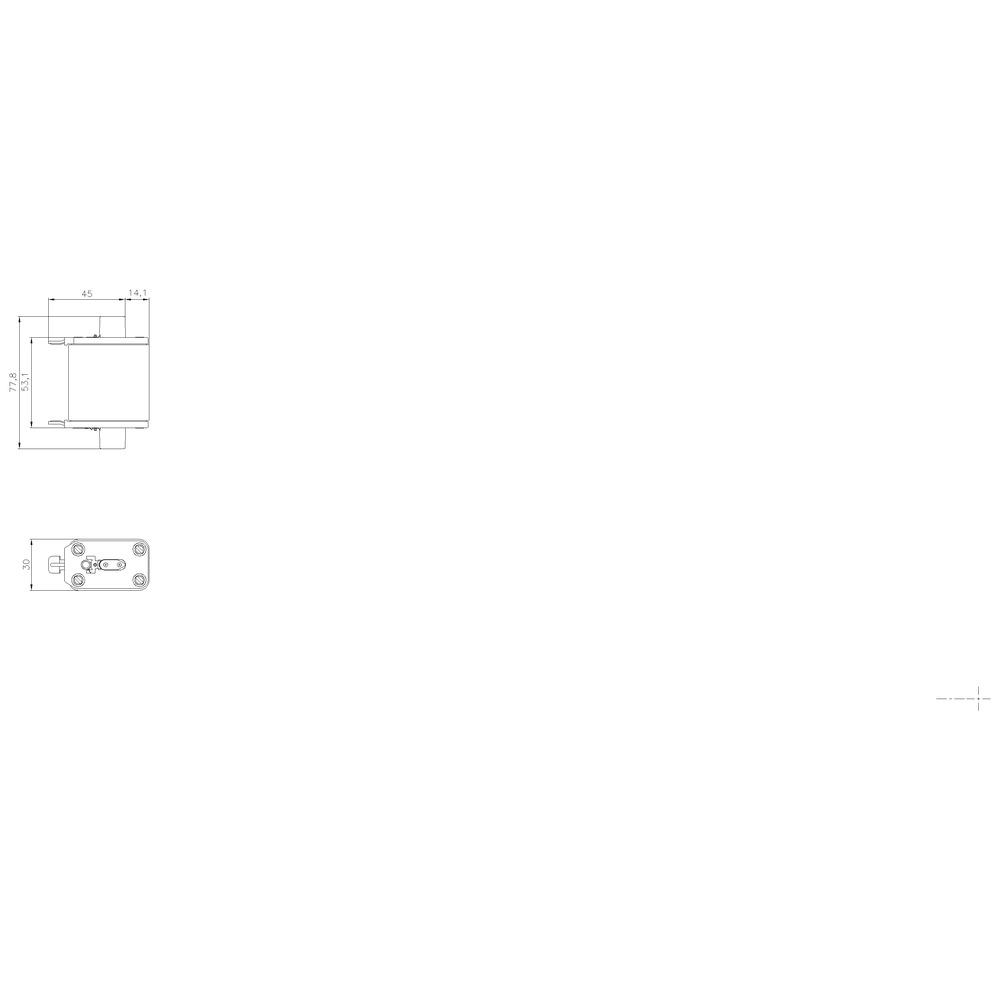

| Dimensions of product | |
| Weight | 0,201 |
