LV HRC FUSE ELEMENT, NH000, IN: 10 A, GG, UN AC: 500 V, UN DC: 250V, FRONT INDICATOR, LIVE GRIP LUGS
Cod produs: 3NA3803
Descriere
LV HRC fuse element, NH000, In: 10 A, gG, Un AC: 500 V, Un DC: 250 V, Front indicator, live grip lugs LV HRC fuse link SENTRON 3NA3 for selective system and line protection. The LV HRC fuse system provides effective personal, equipment and line protection with reliable disconnection in the event of overload and short-circuit. The LV HRC fuse links are available from 2 A to 1250 A in the sizes 000, 00, 0, 1, 2, 3, 4 and 4a. The versions with communication and metering function in size 2 from 80 A to 315 A. SENTRON circuit protection devices - The safe choice. Now made smarter.
Documente
LV HRC FUSE ELEMENT, NH000, IN: 10 A, GG, UN AC: 500 V, UN DC: 250V, FRONT INDICATOR, LIVE GRIP LUGS
Specificatii
| Electrical | |
| Rated voltage AC | 500 |
| Power loss at rated current | 1 |
| Voltage type | AC/DC |
| Rated voltage DC | 250 |
| Fuse construction type according to IEC 60269 | - |
| Rated current | 10 |
| Model/type | |
| Type of fuse status indicator | Top fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | - |
| Performance | |
| Rated switching capacity AC | - |
| Rated switching capacity DC | - |
| Options | |
| Insulated metal gripping lugs (IMGL) | No |
| Package 1 | |
| weight | 0,13 |
| length | 0,084 |
| width | 0,065 |
| qmax | 3 |
| qmin | 3 |
| um | PA |
| gtin | 4001869056807 |
| Package 2 | |
| volume | 0,026 |
| weight | 16,84 |
| length | 0,44 |
| width | 0,325 |
| qmax | 126 |
| qmin | 126 |
| um | CT |
| gtin | 4001869056807 |

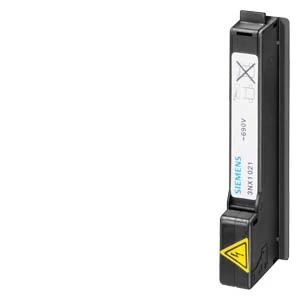

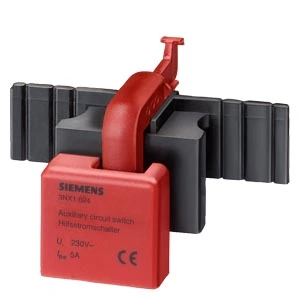

Accesorii
