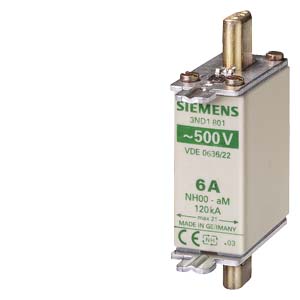

LV HRC FUSE ELEMENT, NH000, IN: 16 A, AM, UN AC: 500 V, UN DC: 440 V, FRONT INDICATOR, LIVE GRIP LUG
Cod produs: 3ND1805
Alte coduri:
upc: 754554599960
Descriere
LV HRC fuse element, NH000, In: 16 A, aM, Un AC: 500 V, Un DC: 440 V, Front indicator, live grip lugs LV HRC fuse link SENTRON for switching device protection in motor circuits. 3ND fuses provide effective protection against short-circuit and are especially suitable for use in motor circuits due to their slow switch-off characteristic. The 3ND LV HRC fuse links are available from 6 A to 630 A in the sizes 000, 00, 0, 1, 2 and 3. SENTRON circuit protection devices - The safe choice. Now made smarter.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Rated voltage AC | 500 |
| Power loss at rated current | 1 |
| Voltage type | AC |
| Rated voltage DC | - |
| Fuse construction type according to IEC 60269 | NH000 |
| Rated current | 16 |
| Model/type | |
| Type of fuse status indicator | Top fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | aM |
| Performance | |
| Rated switching capacity AC | 120 |
| Rated switching capacity DC | - |
| Options | |
| Insulated metal gripping lugs (IMGL) | No |
| Package 1 | |
| weight | 0,127 |
| length | 0,084 |
| width | 0,065 |
| qmax | 3 |
| qmin | 3 |
| um | PA |
| gtin | 4001869020242 |
| Dimensions of product | |
| Weight | 0,127 |
