LV HRC FUSE ELEMENT, NH2, IN: 250 A, GG, UN AC: 500 V, UN DC: 440 V, COMBINED INDICATOR, INSULATED G

Cod produs: 3NA6244

▶

Autentificati-va pentru a vedea pretul.

Producator: Siemens

Set: 1 bucati

4001869071572

Alte coduri: upc: 754554899541

Descriere

LV HRC fuse element, NH2, In: 250 A, gG, Un AC: 500 V, Un DC: 440 V, Combined indicator, Insulated grip lugs LV HRC fuse link SENTRON 3NA6 for selective system and line protection. The LV HRC fuse system provides effective personal, equipment and line protection with reliable disconnection in the event of overload and short-circuit. Combination alarms signal the tripping of a fuse by a clear color change from red to white. The LV HRC fuse links are available from 2 A to 1250 A in the sizes 000, 00, 0, 1, 2, 3, 4 and 4a. The versions with communication and metering function in size 2 from 80 A to 315 A. SENTRON circuit protection devices - The safe choice. Now made smarter.

Documente

Fisa tehnica

Certificat

Link to Certificates

Altele

Link to Sales brochure

Declaratie de conformitate

Alte surse

Specificatii

Electrical
Rated voltage DC	440
Power loss at rated current	17
Rated voltage AC	500
Fuse construction type according to IEC 60269	NH2
Voltage type	AC/DC
Rated current	250
Model/type
Type of fuse status indicator	Combination fuse status indicator
Options
Insulated metal gripping lugs (IMGL)	Yes
Performance
Rated switching capacity DC	25
Rated switching capacity AC	120
Other
Utilization category according to IEC 60269	gG
Package 1
weight	0,466
length	0,152
width	0,159
qmax	3
qmin	3
um	PA
gtin	4001869071572
Package 2
volume	0,026
weight	10,246
length	0,44
width	0,325
qmax	21
qmin	21
um	CT
gtin	4001869071572
Dimensions of product
Weight	0,466

Afiseaza mai multe specificatii

LV HRC FUSE ELEMENT, NH2, IN: 250 A, GG, UN AC: 500 V, UN DC: 440 V, COMBINED INDICATOR, INSULATED G

Descriere

Documente

Specificatii

Produse similare

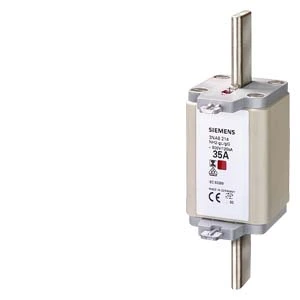

LV HRC FUSE ELEMENT, NH2, IN: 35 A, GG, UN AC: 500 V, UN DC: 440 V, COMBINED INDICATOR, INSULATED GR
