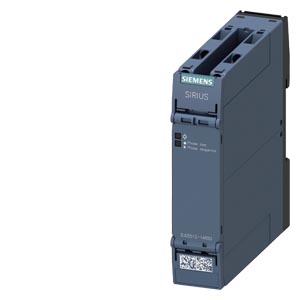

Monitoring relay phase failure, phase sequence and asymmetry monitoring 3x 160-690 V AC
Cod produs: 3UG5512-1AR20
Descriere
Monitoring relay phase failure
This device ensures reliable monitoring of phase sequence, phase failure, and phase asymmetry in various applications.
Technical details:
- Phase sequence and asymmetry monitoring
- Voltage: 3x 160-690 V AC
- Frequency: 15-70 Hz
- Contact type: 1 changeover contact
- Connection type: screw terminal
- Certifications: SIL 1/PL c available
Customer benefits:
- Worldwide use thanks to international certificates
- Less space required in the control cabinet due to slim design

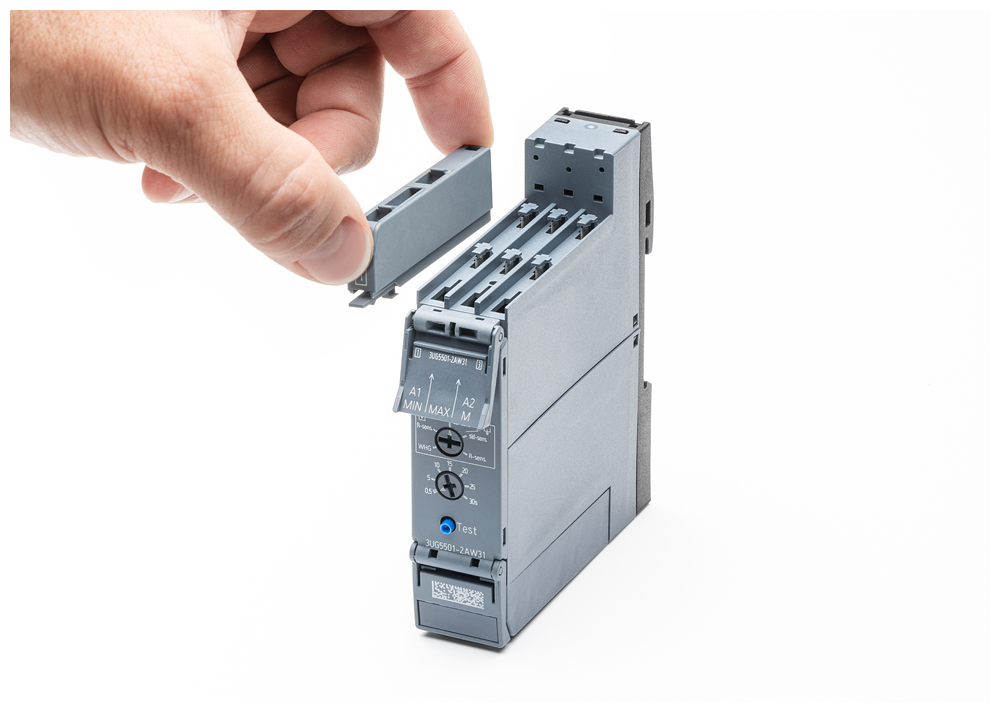

- All versions with removable terminals
- Fast, maintenance-free, and vibration-proof connection with spring-loaded terminals
- Wide voltage range suitable for any networks worldwide
- Comprehensive range of standardized accessories
- Replaces the well-proven 3UG4 series
- One range for every application
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Declaratie de conformitate
Alte surse
Specificatii

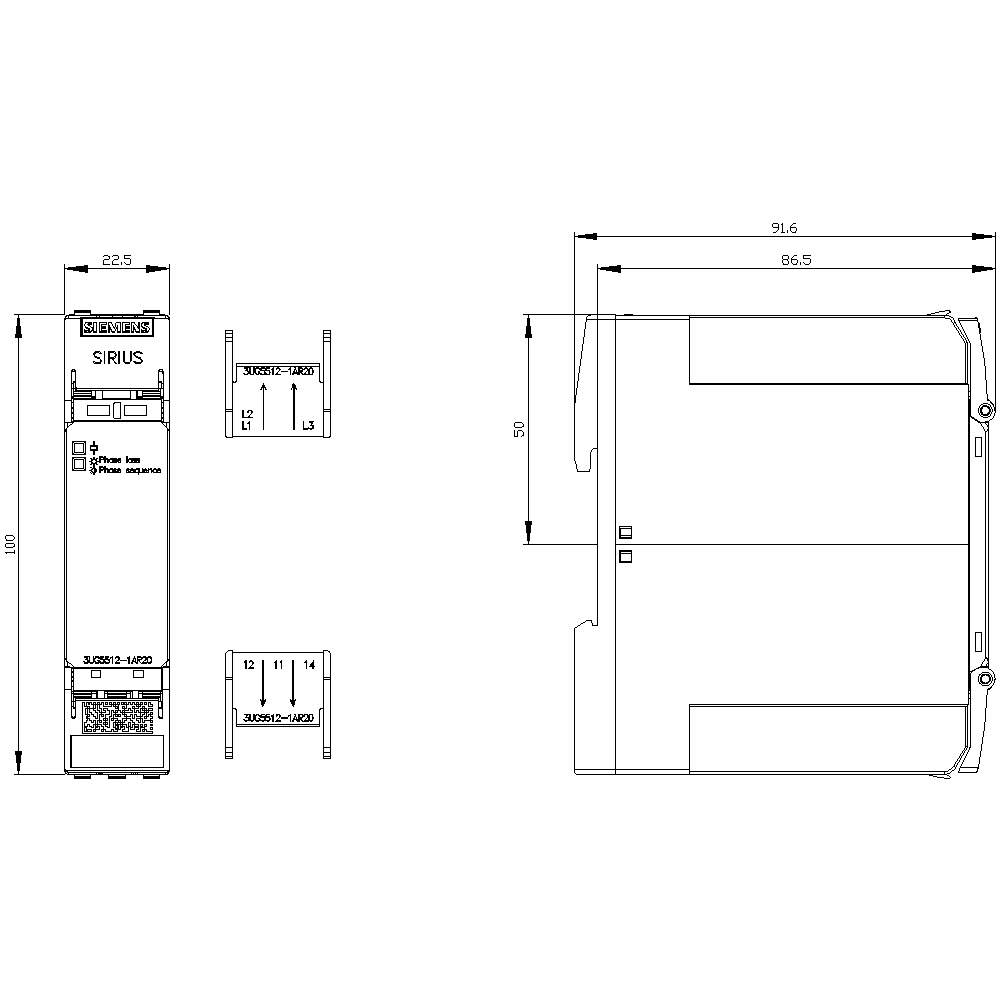

| Measurements | |
| Depth | 90 |
| Height | 100 |
| Width | 22.5 |
| Options | |
| Phase imbalance monitoring | Yes |
| Phase failure detection | Yes |
| Phase sequence monitoring | Yes |
| Function overvoltage detection | No |
| Function under voltage detection | No |
| Electrical | |
| Rated switch current | 3 |
| Voltage type (supply voltage) | AC |
| External power supply required | No |
| Voltage type (operating voltage) | AC/DC |
| Supply voltage AC 50 Hz | 200 |
| Operating voltage AC 60 Hz | 200 |
| Operating voltage AC 50 Hz | 200 |
| Supply voltage AC 60 Hz | 200 |
| Voltage measuring range | 160 |
| Supply voltage DC | - |
| Operating voltage DC | - |
| Operating conditions | |
| Max. permitted off-delay time | - |
| Max. permitted delay-on energization time | - |
| Setting/control | |
| Min. adjustable delay-on energization time | 0.1 |
| Min. adjustable off-delay time | 0.1 |
| Connection | |

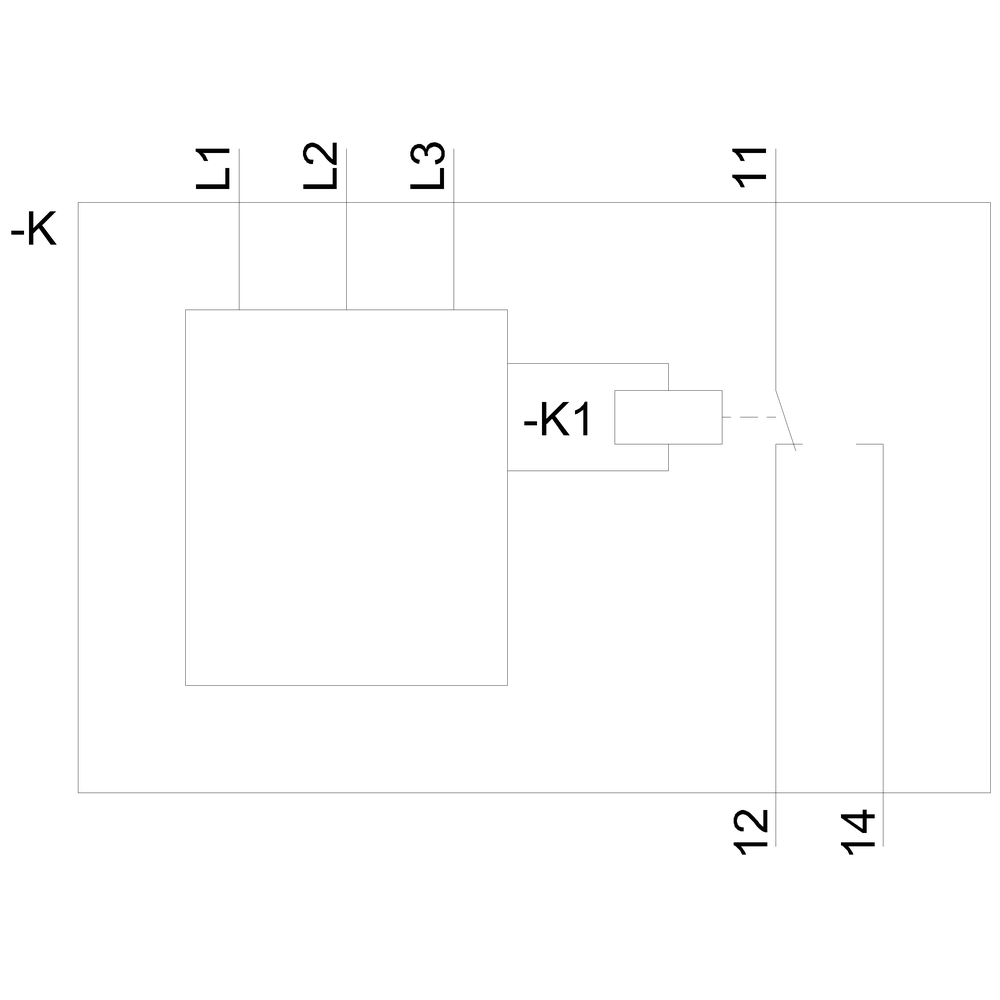

| Number of contacts as change-over contact | 1 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Type of electric connection | Screw connection |
| Model/type | |
| With detachable clamps | Yes |
| Package 1 | |
| weight | 0,16 |
| length | 0,126 |
| width | 0,11 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4047621099842 |
| Dimensions of product | |
| Weight | 0,160 |
