Descriere

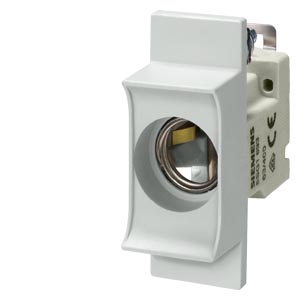

NEOZED, fuse base, D01, 1-pole, 16 A, Un AC: 400 V, Un DC: 250 V incoming terminal: clamp-type terminal outgoing terminal: clamp-type terminal SENTRON 5SG1 . SENTRON circuit protection devices - A safe choice.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Number of poles | 1 |
| Rated voltage | 400 |
| Rated current | 16 |
| Mounting/installation | |
| Mounting method | DIN rail |

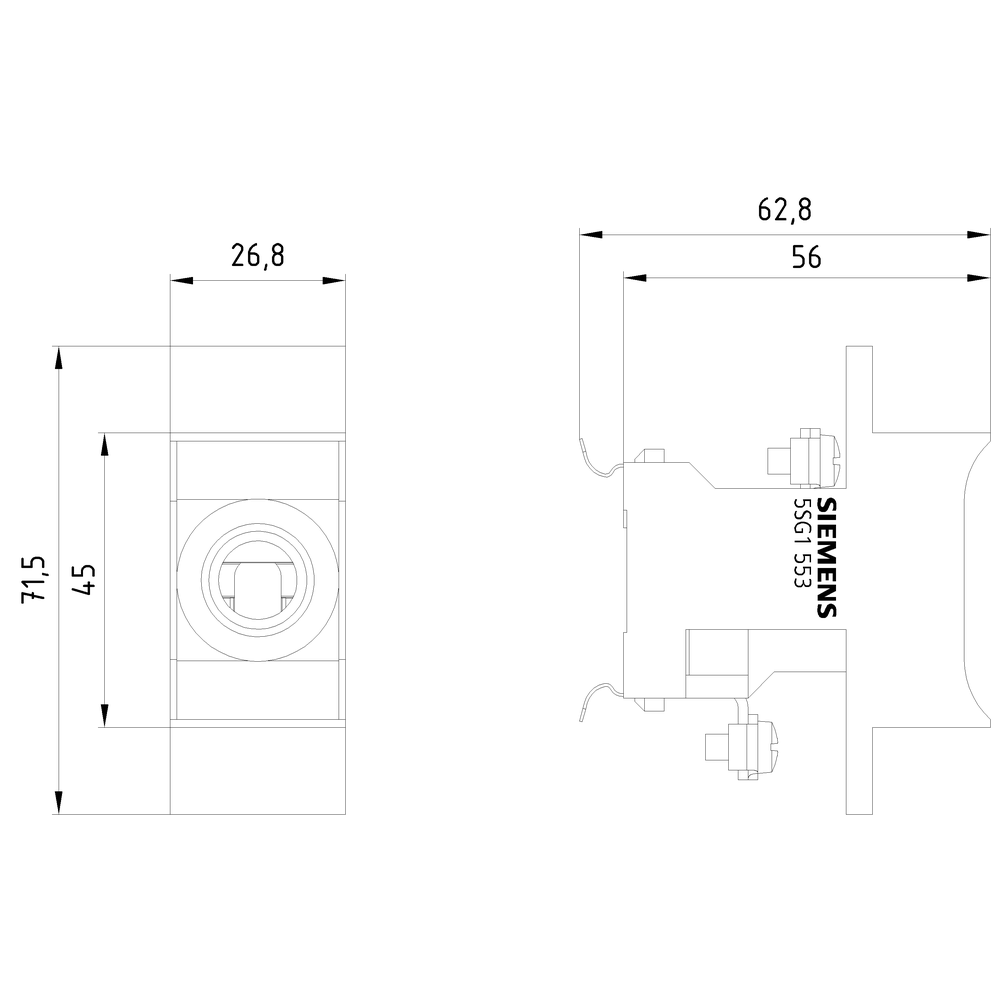

| Measurements | |
| Construction size | D01 |
| Model/type | |
| Version with cover | Yes |
| Material | |
| Material | Porcelain |
| Package 1 | |
| weight | 0,071 |
| length | 0,23 |
| width | 0,08 |
| qmax | 6 |
| qmin | 6 |
| um | PA |
| gtin | 4001869302935 |
| Package 2 | |
| volume | 0,026 |
| weight | 6,85 |
| length | 0,44 |
| width | 0,325 |
| qmax | 90 |
| qmin | 90 |
| um | CT |
| gtin | 4001869302935 |
| Dimensions of product | |
| Weight | 0,071 |
