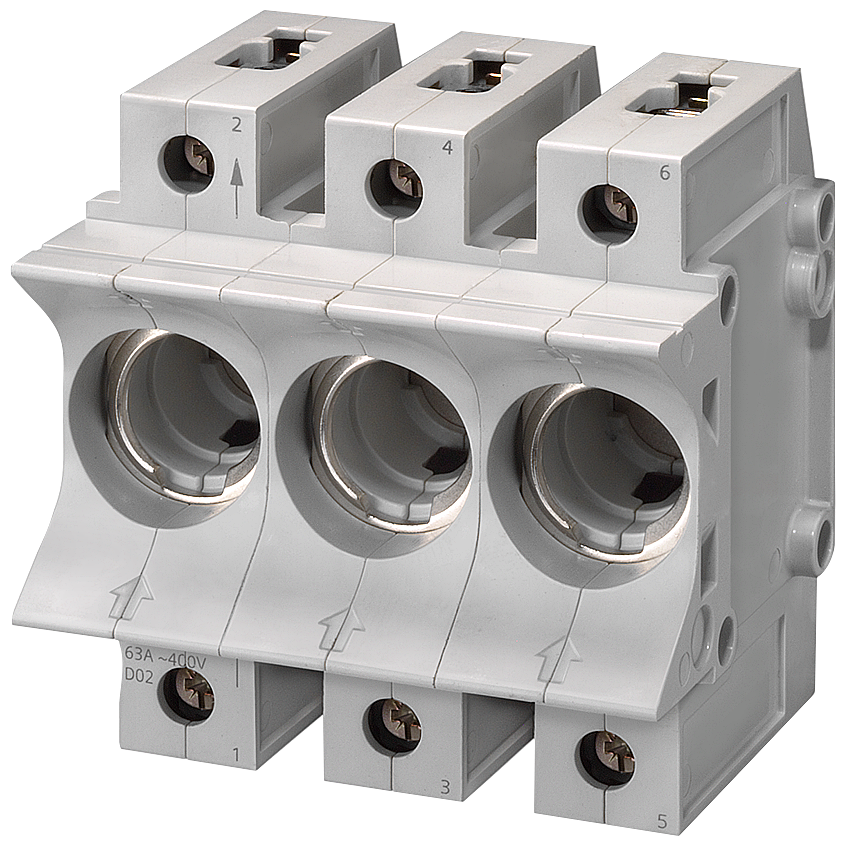

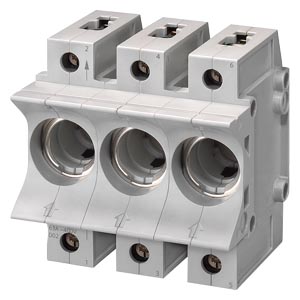

NEOZED, FUSE BASE, D02, 3-POLE, 63 A, UN AC: 400V, UN DC: 250V
Cod produs: 5SG5701
Alte coduri:
upc: 754554936307
Descriere
NEOZED, fuse base, D02, 3-pole, 63 A, Un AC: 400 V, Un DC: 250 V with twofold frame terminal SENTRON 5SG5 . SENTRON circuit protection devices - A safe choice.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Number of poles | 3 |
| Rated voltage | 400 |
| Rated current | 63 |
| Mounting/installation | |
| Mounting method | DIN rail |
| Measurements | |
| Construction size | D02 |
| Model/type | |
| Version with cover | Yes |
| Material | |
| Material | Plastic |
| Package 1 | |
| weight | 0,374 |
| length | 0,085 |
| width | 0,095 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869319216 |
| Package 2 | |
| volume | 0,026 |
| weight | 11,65 |
| length | 0,44 |
| width | 0,325 |
| qmax | 30 |
| qmin | 30 |
| um | CT |
| gtin | 4001869319216 |
| Dimensions of product | |
| Weight | 0,374 |
