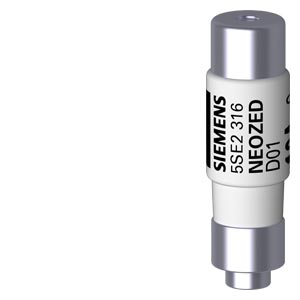

Neozed fuse-link
The NEOZED fuse-link is designed for effective protection against overload and short-circuit in electronic installations.
Technical details:
- Type: NEOZED fuse link
- Model: SENTRON 5SE2
- Designation: D01
- Rated current: 4 A
- Fuse classification: gG
- Rated voltage AC: 400 V
- Rated voltage DC: 250 V
- Contact caps: tin-coated
Customer benefits:
- Provides effective protection for personnel, equipment, and plants.
- Reliable shutdown function in the event of an overload or short-circuit.
- Low space requirement due to compact design.
- Wide range of fuse bases and accessories increases possible applications.
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Other | |
| Utilization category according to IEC 60269 | - |
| Electrical | |
| Rated voltage | 400 |
| Rated current | 4 |
| Measurements | |
| Construction size | D01 |
| Model/type | |
| Colour code | Brown |
| Package 1 | |
| weight | 0,006 |
| length | 0,057 |
| width | 0,023 |
| qmax | 10 |
| qmin | 10 |
| um | PA |
| gtin | 4001869005935 |
| Package 2 | |
| volume | 0,026 |
| weight | 12,46 |
| length | 0,44 |
| width | 0,325 |
| qmax | 2000 |
| qmin | 2000 |
| um | CT |
| gtin | 4001869005935 |
| Dimensions of product | |
| Weight | 0,006 |
