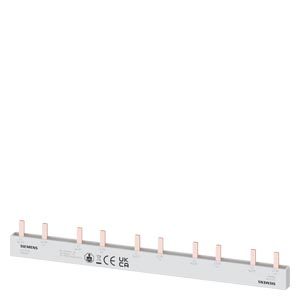

Pin busbar SENTRON 5ST3
The Pin busbar SENTRON 5ST3 is designed for use as an additional component for residual current devices and miniature circuit breakers.
Technical details:
- Pin busbar touch-safe
- 10 mm²
- 2-phase + AUX
- 214 mm long
- Can be cut with end caps
Customer benefits:
- Universally mountable additional components
- Easy and convenient to install and connect
- Standard touch protection ensures reliable safety during installation
- Optimized technology for safety
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Measurements | |
| Length | 214 |
| Cross section | 10 |
| Width in number of modular spacings | 12 |
| Module width | 18 |
| Options | |
| Can be cut to size | - |
| Insulated | Yes |
| Electrical | |
| Number of phases | 2 |
| Rated short-time withstand current lcw | - |
| Number of poles | - |
| Max. rated operation voltage Ue | - |
| Rated surge voltage | - |
| Rated permanent current Iu | - |
| Conditioned rated short-circuit current Iq | - |
| Application | |
| Suitable for number of devices | 5 |
| Suitable for devices with auxiliary switch | Yes |
| Suitable for devices with N-conductor | Yes |
| Connection | |
| Type of electric connection | Pin |
| Colour | |
| Colour | - |
| Package 1 | |
| weight | 0,071 |
| length | 0,215 |
| width | 0,145 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869313054 |
| Dimensions of product | |
| Weight | 0,071 |
