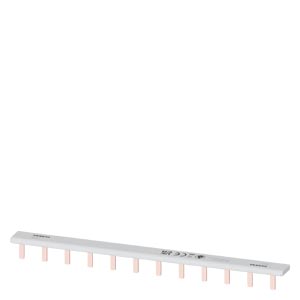

Pin busbar SENTRON 5ST3
The Pin busbar SENTRON 5ST3 provides a touch-safe connection for residual current devices and miniature circuit breakers.
Technical details:
- Busbar type: Pin busbar
- Touch-safe
- Cross-section: 16 mm2
- Number of phases: 1-phase
- Length: 214 mm (can be cut)
- Additional components for residual current devices and miniature circuit breakers
- Mounting: Universal
Customer benefits:
- Easy and convenient installation and connection
- Reliable safety during installation due to standard touch protection
- Optimized technology for safety
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Measurements | |
| Length | 214 |
| Cross section | 16 |
| Width in number of modular spacings | 12 |
| Module width | 18 |
| Options | |
| Can be cut to size | - |
| Insulated | Yes |
| Electrical | |
| Number of phases | 1 |
| Rated short-time withstand current lcw | - |
| Number of poles | - |
| Max. rated operation voltage Ue | - |
| Rated surge voltage | - |
| Rated permanent current Iu | - |
| Conditioned rated short-circuit current Iq | - |
| Application | |
| Suitable for number of devices | 12 |
| Suitable for devices with auxiliary switch | No |
| Suitable for devices with N-conductor | No |
| Connection | |
| Type of electric connection | Pin |
| Colour | |
| Colour | - |
| Package 1 | |
| weight | 0,042 |
| length | 0,215 |
| width | 0,08 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869209210 |
| Dimensions of product | |
| Weight | 0,042 |
