Specificatii

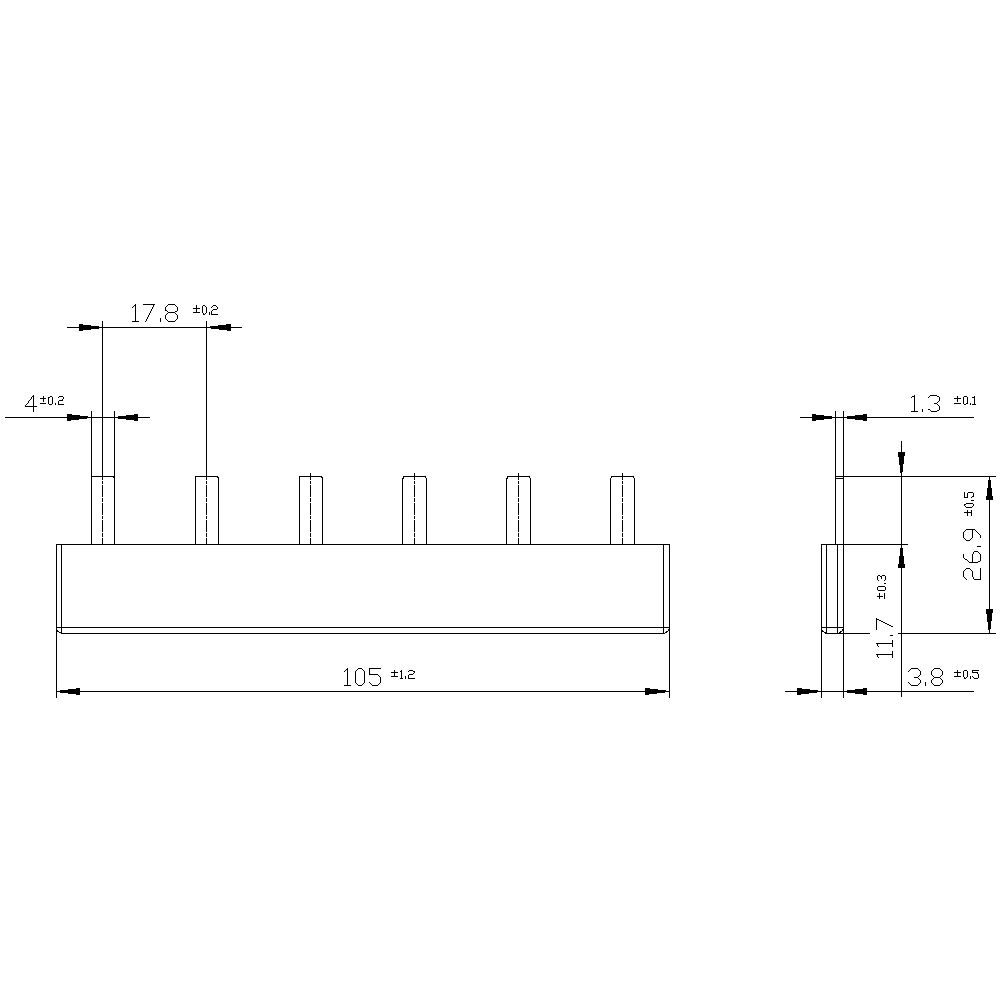

| Measurements | |
| Length | 105 |
| Cross section | 16 |
| Width in number of modular spacings | 6 |
| Module width | 18 |
| Options | |
| Can be cut to size | - |
| Insulated | Yes |
| Electrical | |
| Number of phases | 1 |
| Rated short-time withstand current lcw | - |
| Number of poles | - |
| Max. rated operation voltage Ue | - |
| Rated surge voltage | - |
| Rated permanent current Iu | - |
| Conditioned rated short-circuit current Iq | - |
| Application | |
| Suitable for number of devices | 6 |
| Suitable for devices with auxiliary switch | No |
| Suitable for devices with N-conductor | No |
| Connection | |
| Type of electric connection | Pin |
| Colour | |
| Colour | - |
| Package 1 | |
| weight | 0,026 |
| length | 0,127 |
| width | 0,073 |
| qmax | 10 |
| qmin | 10 |
| um | PA |
| gtin | 4001869318424 |
| Dimensions of product | |
| Weight | 0,026 |
