Descriere

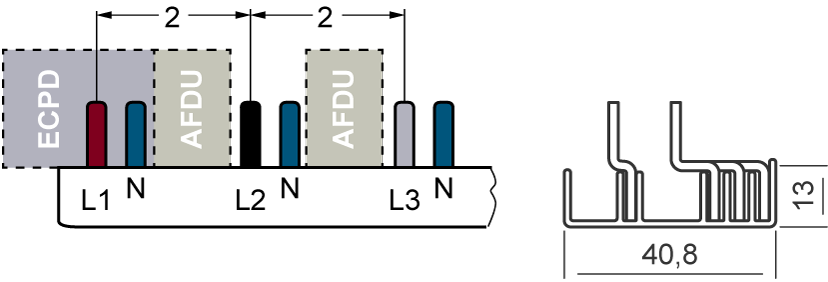

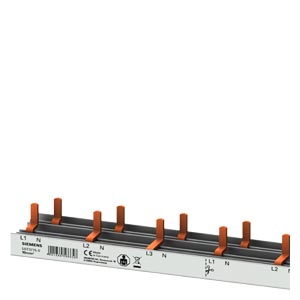

compact Pin Busbar, 10mm2 connection: 3p/N AFDD 5SM6 + compact device 1 MW touch protected 1000mm cuttable Pin busbar SENTRON 5ST3 as additional components for residual current devices and miniature circuit breakers. These additional components can be mounted universally. They are easy and convenient to install and connect. Thanks to the standard touch protection, safety is reliably ensured during installation. Optimized technology for your safety - only from Siemens.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii

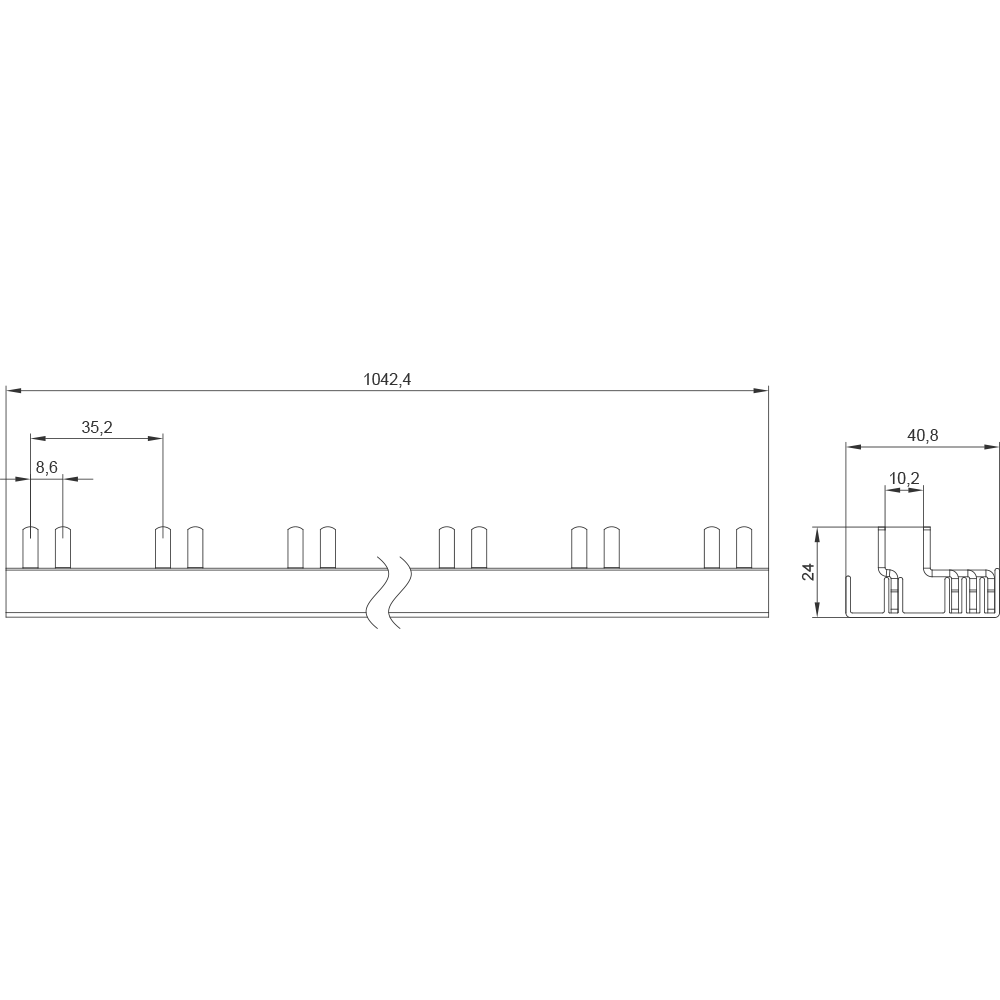

| Measurements | |
| Length | 1042 |
| Cross section | 10 |
| Width in number of modular spacings | 58 |
| Module width | 18 |
| Options | |
| Can be cut to size | - |
| Insulated | Yes |
| Electrical | |
| Number of phases | 4 |
| Rated short-time withstand current lcw | - |
| Number of poles | - |
| Max. rated operation voltage Ue | - |
| Rated surge voltage | - |
| Rated permanent current Iu | - |
| Conditioned rated short-circuit current Iq | - |
| Application | |
| Suitable for number of devices | 30 |
| Suitable for devices with auxiliary switch | No |
| Suitable for devices with N-conductor | Yes |
| Connection | |
| Type of electric connection | Pin |
| Colour | |
| Colour | - |
| Package 1 | |
| weight | 0,58 |
| length | 1,02 |
| width | 0,1 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869566658 |
| Dimensions of product | |
| Weight | 0,58 |
