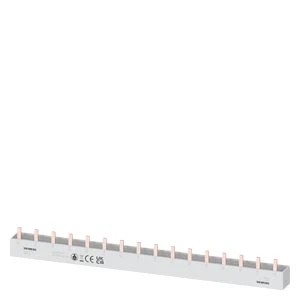

Pin busbar
The pin busbar is designed for easy and convenient installation and connection of residual current devices and miniature circuit breakers.
Technical details:
- Connection: 16 mm2
- Configuration: 1-pole+N
- Length: 1000 mm
- Type: Compact safe to touch
- Model: SENTRON 5ST3
Customer benefits:
- Universal mounting for added versatility.
- Easy and convenient installation.
- Reliable safety during installation thanks to standard touch protection.
- Optimized technology for enhanced safety.
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Measurements | |
| Length | 1000 |
| Cross section | 16 |
| Width in number of modular spacings | 56 |
| Module width | 18 |
| Options | |
| Can be cut to size | - |
| Insulated | No |
| Electrical | |
| Number of phases | 2 |
| Rated short-time withstand current lcw | - |
| Number of poles | - |
| Max. rated operation voltage Ue | - |
| Rated surge voltage | - |
| Rated permanent current Iu | - |
| Conditioned rated short-circuit current Iq | - |
| Application | |
| Suitable for number of devices | 56 |
| Suitable for devices with auxiliary switch | No |
| Suitable for devices with N-conductor | Yes |
| Connection | |
| Type of electric connection | Pin |
| Colour | |
| Colour | - |
| Package 1 | |
| weight | 0,531 |
| length | 1,07 |
| width | 0,08 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869398075 |
| Dimensions of product | |
| Weight | 0,531 |
