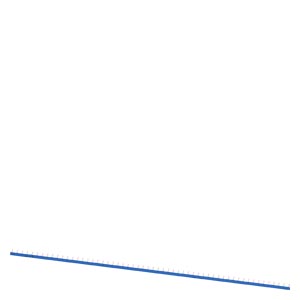

Pin busbar
The Pin busbar SENTRON 5ST3 is designed as an additional component for residual current devices and miniature circuit breakers, offering easy installation and connection.
Technical details:
- 1-phase
- 10 mm2
- 56 pins
- Insulation blue
- Can be cut
- Without end caps
Customer benefits:
- Additional components can be mounted universally.
- Easy and convenient to install and connect.
- Safety is reliably ensured during installation thanks to standard touch protection.
- Optimized technology for your safety - only from Siemens.
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii

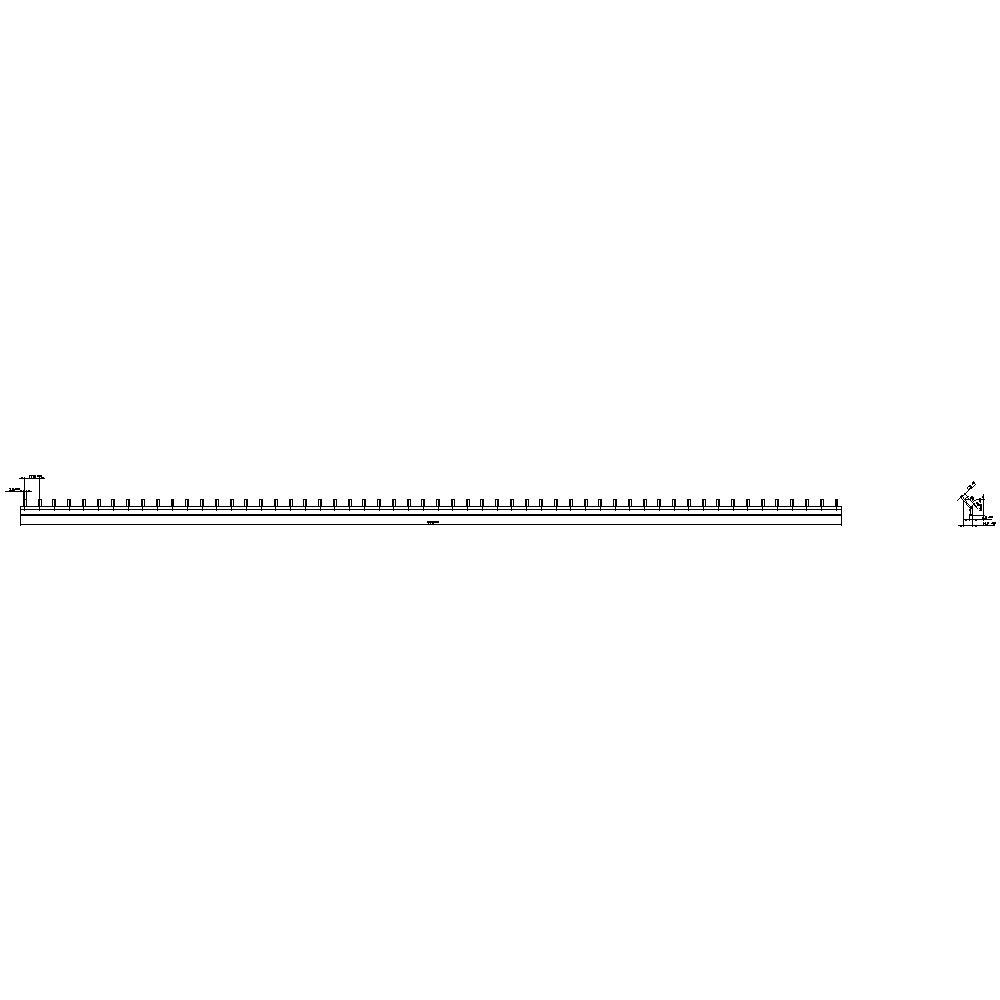

| Measurements | |
| Length | 1016 |
| Cross section | 10 |
| Width in number of modular spacings | 56 |
| Module width | 18 |
| Options | |
| Can be cut to size | - |
| Insulated | Yes |
| Electrical | |
| Number of phases | 1 |
| Rated short-time withstand current lcw | - |
| Number of poles | - |
| Max. rated operation voltage Ue | - |
| Rated surge voltage | - |
| Rated permanent current Iu | - |
| Conditioned rated short-circuit current Iq | - |
| Application | |
| Suitable for number of devices | 56 |
| Suitable for devices with auxiliary switch | No |
| Suitable for devices with N-conductor | Yes |
| Connection | |
| Type of electric connection | Pin |
| Colour | |
| Colour | - |
| Package 1 | |
| weight | 0,164 |
| length | 0,26 |
| width | 0,08 |
| qmax | 10 |
| qmin | 10 |
| um | PA |
| gtin | 4001869373980 |
| Dimensions of product | |
| Weight | 0,164 |
