Descriere

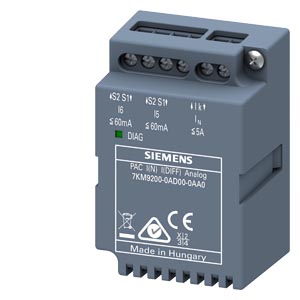

expansion module I(N),I(diff),analog N-conductor measurement, residual current measurement, 2 analog inputs, plug-in, for 7KM PAC3220 / 4220 SENTRON PAC - specialists in measured value acquisition.
Documente
Fisa tehnica
Certificat
Declaratie de conformitate
Alte surse
Specificatii
| Options | |
| Harmonics measurement | - |
| Remote display | Yes |
| Calibrated | - |
| Power factor | - |
| Apparent power | - |
| Step angle (cos phi) | - |
| Reactive power meter | No |
| Effective power measurement device | No |
| Measured value memory | - |
| Other | |
| Sampling frequency | - |
| Pulse output | - |
| Measuring range for frequency | - |
| Display resolution (vertical) | - |
| Display resolution (horizontal) | - |
| Communication | |
| Wth communication interface M-Bus | - |
| Supporting protocol for other bus systems | No |
| With communication interface KNX | - |
| With communication interface RS-485 | - |
| Supporting protocol for IEC 61850 Ethernet | No |
| Supporting protocol for PROFINET IO | Yes |
| Supporting protocol for OPC UA PubSub | No |
| Web server with HTTPS transfer protocol | - |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for Modbus | Yes |
| Electrical | |
| Nominal current (In) | - |
| Voltage type (supply voltage) | - |
| Max. current (Imax) | - |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 19.2 |
| Model/type | |
| Model | - |
| Measurement type load profile | - |
| Pole type | - |
| Display | - |
| With rotational speed meter | No |
| Ampere meter | No |
| Frequency meter | No |
| Pulse counter | No |
| With audit logging (audit log) | No |
| With firmware signature | Yes |
| With logging of security events (security event log) | No |
| With Role Based Access Control (RBAC) | - |
| Voltmeter | No |
| Measurements | |
| Width | 18 |
| Depth | 73 |
| Height | 90 |
| Protection | |
| Degree of protection (IP), front side | - |
| Mounting/installation | |
| Mounting method | - |
| Connection | |
| Number of voltage measurement inputs | - |
| Number of current measurement inputs | - |
| Suitable for RJ plug | - |
| Number of Ethernet connections | - |
| Connectable conductor cross section solid-core | - |
| Number of digital inputs | - |
| Number of digital outputs | - |
| Number of analogue inputs | - |
| Number of analogue outputs | - |
| Approval/certification | |
| Accuracy class active energy according to IEC 62053-22 | - |
| Accuracy class reactive energy according to IEC 62053-23 | - |
| Package 1 | |
| weight | 0,081 |
| length | 0,11 |
| width | 0,11 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869547589 |
| Dimensions of product | |
| Weight | 0,081 |
